Product Introduction

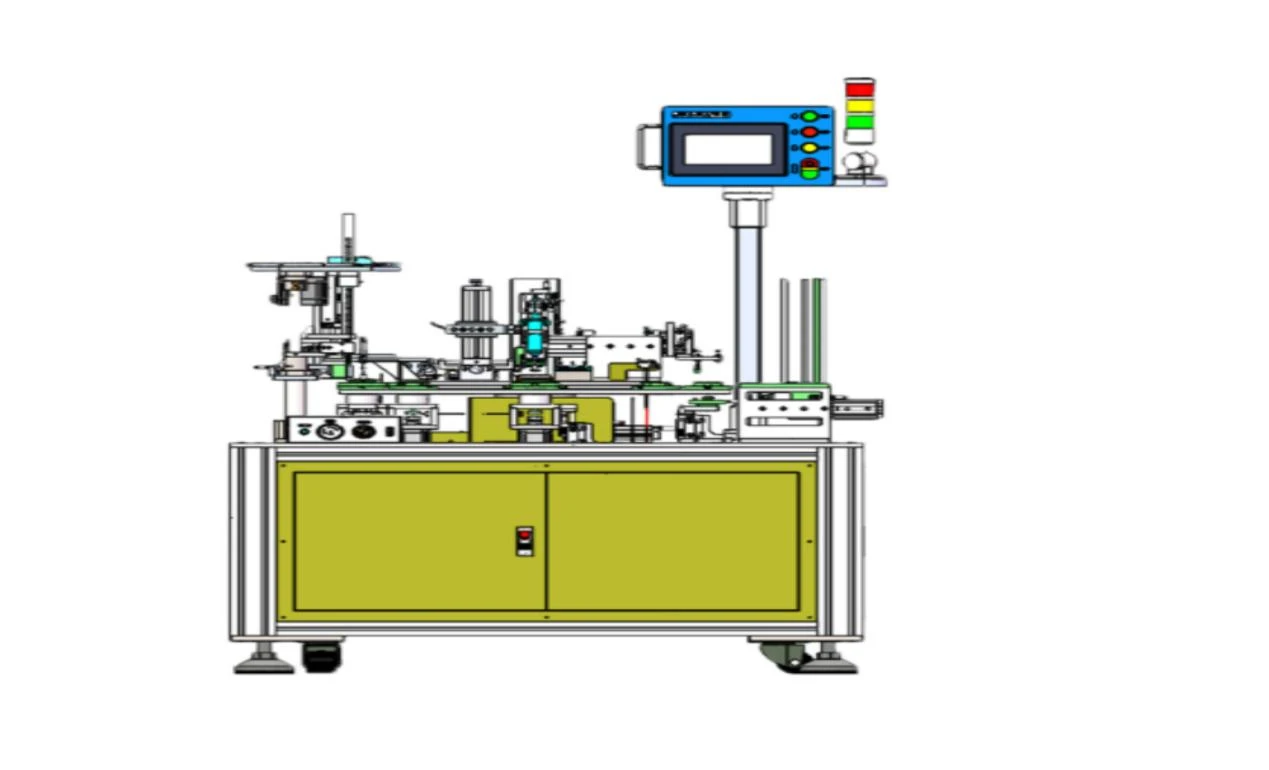

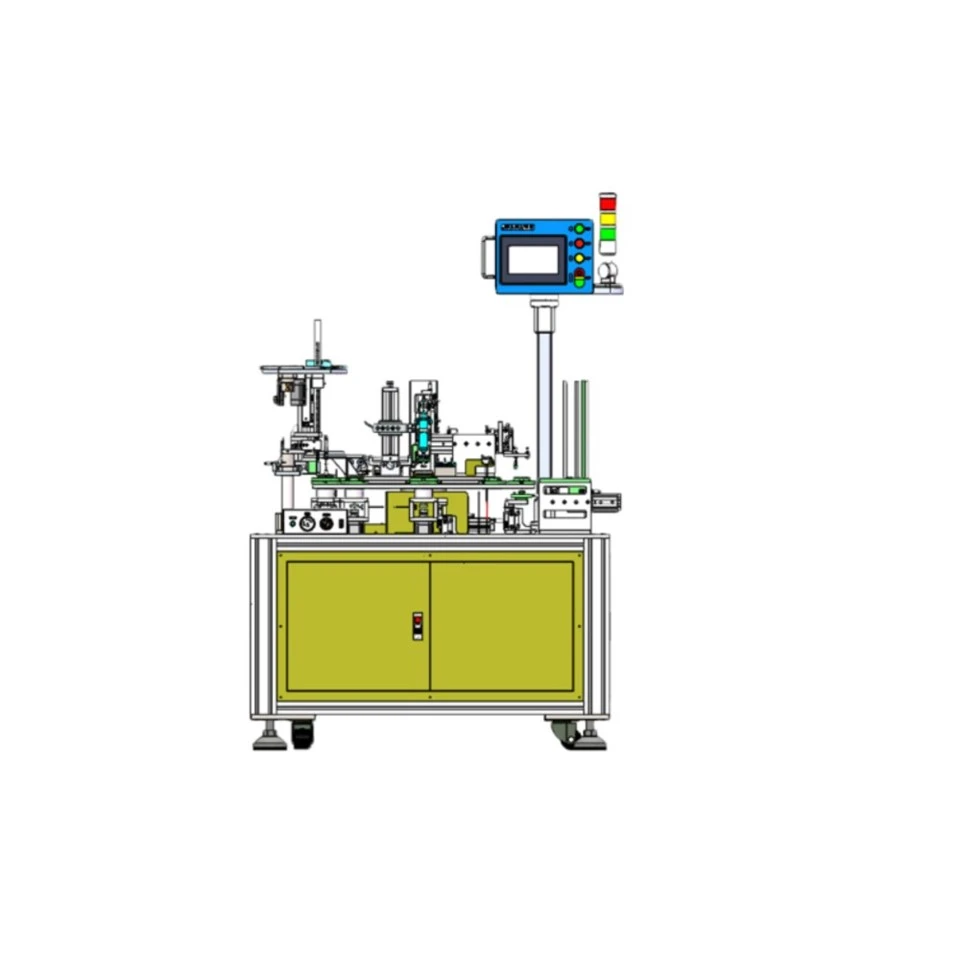

Magnetic Circuit Assembly Machine is a dedicated automated assembly equipment developed for magnetic group matching and magnetic circuit combination processing. It adopts precision positioning mechanism and modular assembly structure, with stable clamping, accurate alignment and fast combining efficiency. The equipment runs smoothly with high assembly yield, suitable for mass production and precise assembly of magnetic core, magnetic steel and magnetic circuit components in electronics, electrical and electromagnetic industries.
Key Benefits
▶Precision positioning structure, ensuring magnetic circuit assembly without offset
▶Stable clamping design, protecting raw materials from scratch and damage
▶Intelligent process control, consistent assembly effect for each batch
Technical Specifications
|
Machine Name |
Magnetic Circuit Assembly Machine |
|
Assembly Object |
Magnetic steel, magnetic core, magnetic circuit component |
|
Control System |
PLC intelligent control + Touch screen |
|
Working Voltage |
220V 50Hz |
|
Assembly Mode |
Automatic positioning & combination |
|
Equipment Structure |
Integrated frame type |
Applications & Components
▶Electrical magnetic circuit matching
▶Sensor magnetic group combination
▶Relay magnetic core assembly
Why Choose This Machine
We adopt professional anti-magnetic interference structure and precise positioning technology, delivering stable assembly effect and low defective rate for magnetic circuit components. Our equipment features flexible fixture switching and simple daily maintenance, helping factories cut labor cost and improve production efficiency easily.
Part of Your Smart Factory

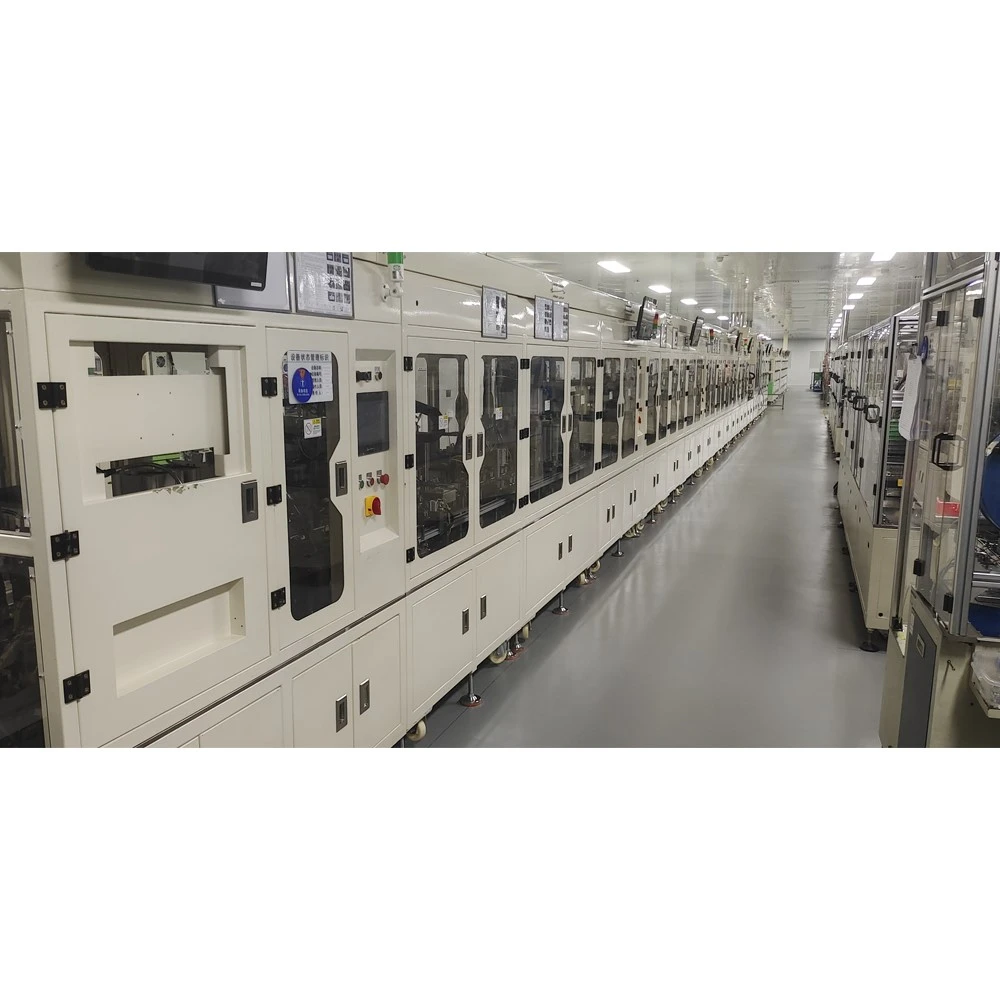

The machine adopts independent stand-alone design and can also be seamlessly connected with front and rear processing stations. It has built-in working status monitoring and production counting functions, supporting data linkage with workshop management system, perfectly adapting to modern intelligent manufacturing layout.
FAQ(Frequently Asked Questions)
Q: Does the machine interfere with the magnetism of parts during assembly?
A: The whole machine adopts optimized anti-magnetic structure and non-magnetic accessory configuration, which will not cause magnetic attenuation or magnetic deviation to workpieces.
Q: Is it suitable for small batch and multi-style production?
A: Yes. It features quick fixture replacement and simple parameter tuning, perfectly matching small-batch, diversified production modes.
Q: What is the yield performance in mass production?
A: Precise positioning and standardized assembly logic keep the product yield stable, effectively reducing manual assembly errors and defective products.
