Product Introduction

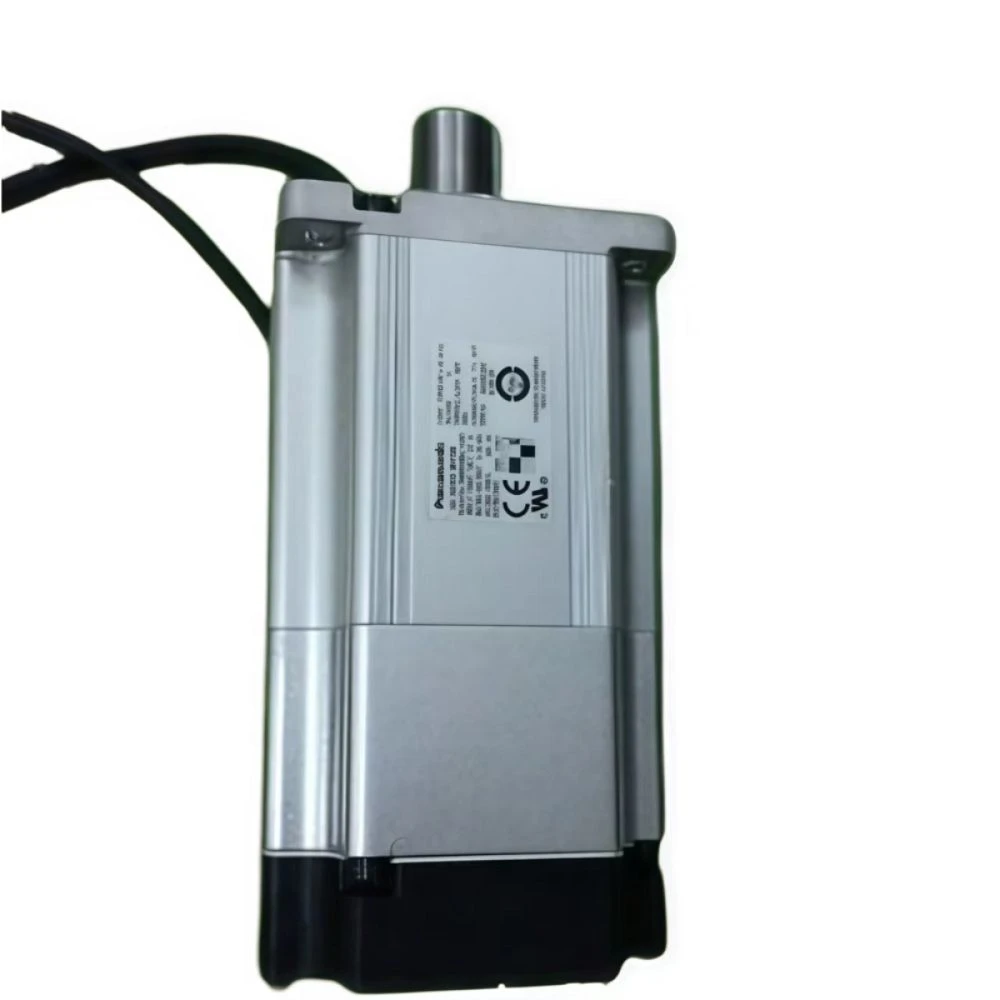

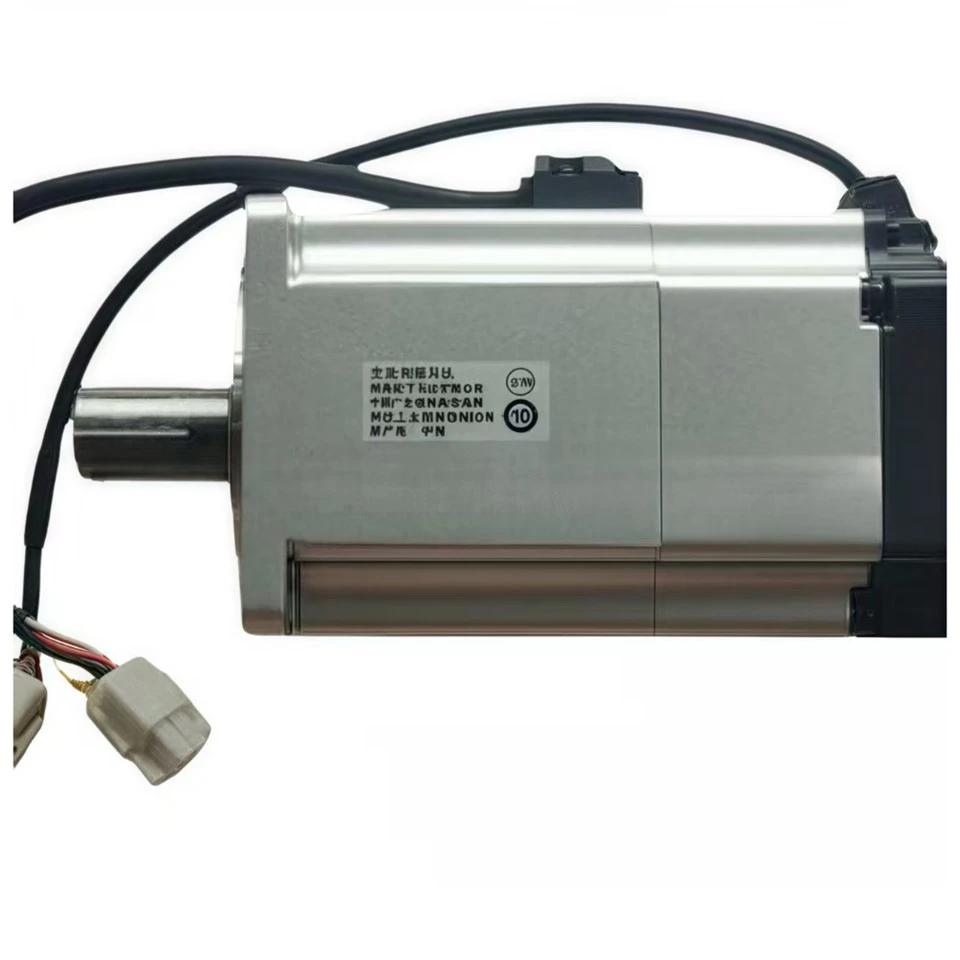

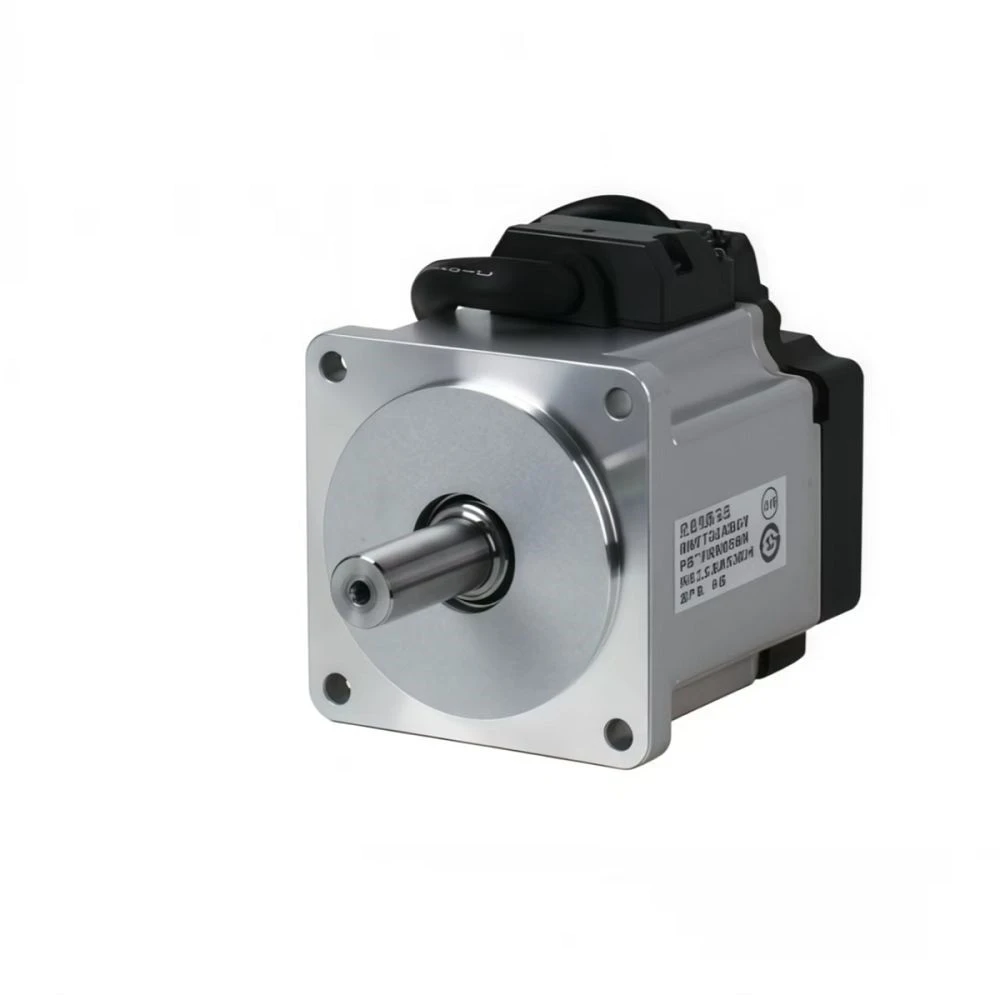

Our Panasonic MHMF082L1V2M Servo Motor is a 750W high-inertia model from the MINAS A6 series, equipped with a built-in power-off brake. It adopts a 23-bit high-resolution encoder to deliver precise positioning, stable torque output and fast dynamic response. Ideal for CNC machines, packaging and automated assembly equipment. We are an authorized INOVANCE distributor, providing reliable industrial automation solutions.

Key Benefits

▶Power-off Brake Protection

▶Compact High-torque Design

▶Low-noise & Low-vibration Operation

Technical Specifications

Item	Specification
Model	MHMF082L1V2M, MINAS A6 High Inertia Series
Power & Voltage	750W, 200V
Speed	Rated 3000r/min, Max 6000r/min
Torque	Rated 2.39N·m, Stall 2.86N·m, Peak 8.36N·m
Current	Rated 3.8A, Max Instantaneous 18.8A
Encoder	23-bit absolute/incremental, 8388608 resolution
Protection	IP65 (excluding shaft and lead end)
Brake	Built-in 24V DC holding brake
Load Capacity	Operating & assembly radial/axial load support
Inertia	1.66×10⁻⁴kg·m², max load ratio ≤20 times
Structure	80mm flange, key thread shaft with oil seal, 3.0kg
Performance	1.8kVA capacity, unlimited braking, optional DV0P4283
Note	See official manual for operating environment

Applications & Components

▶Automated material cutting machinery

▶Precision testing and measuring equipment

▶Automatic feeding and discharging mechanism

Why Choose This Machine

Panasonic MHMF082L1V2M Servo Motor features original factory quality, stable performance and strong environmental adaptability. It offers great compatibility, simple installation and easy debugging, effectively reducing equipment failure rates.

Part of Your Smart Factory

Panasonic MHMF082L1V2M Servo Motor supports real-time data feedback and multi-axis synchronous control. It enables flexible production and digital monitoring, perfectly matching smart factory upgrading and intelligent manufacturing systems.
