Product Introduction

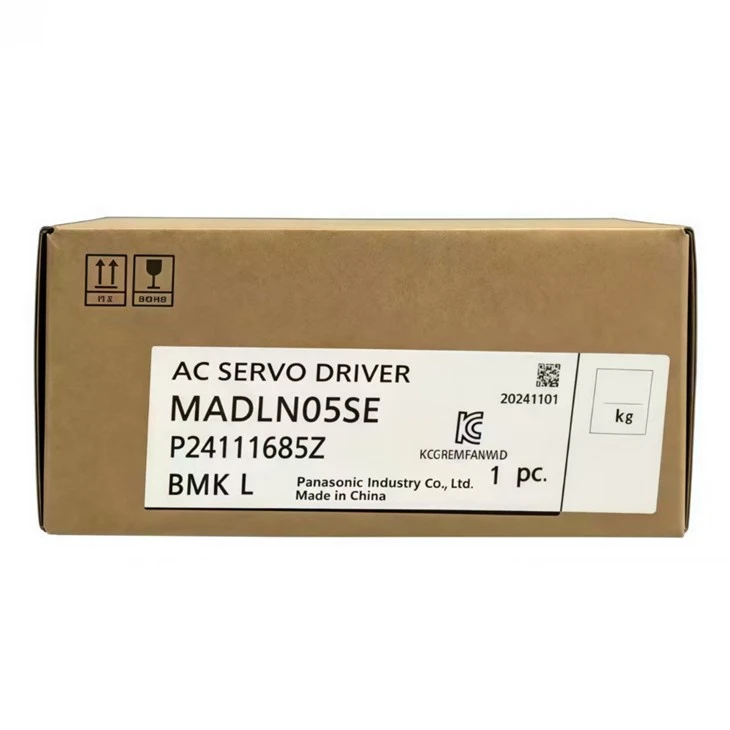

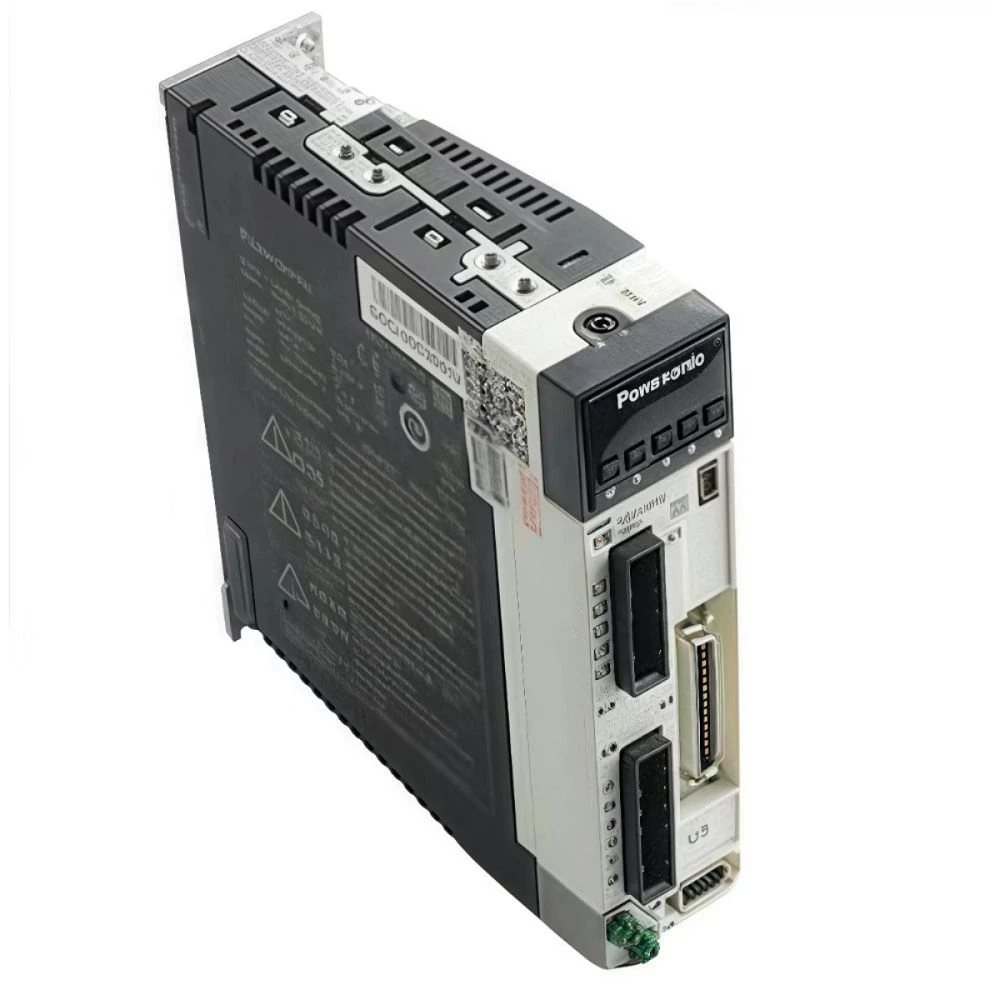

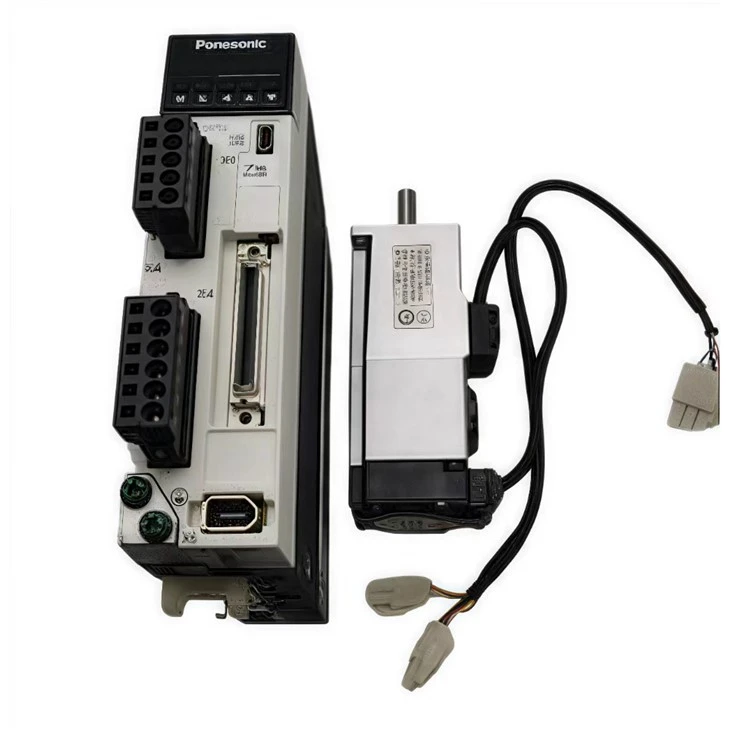

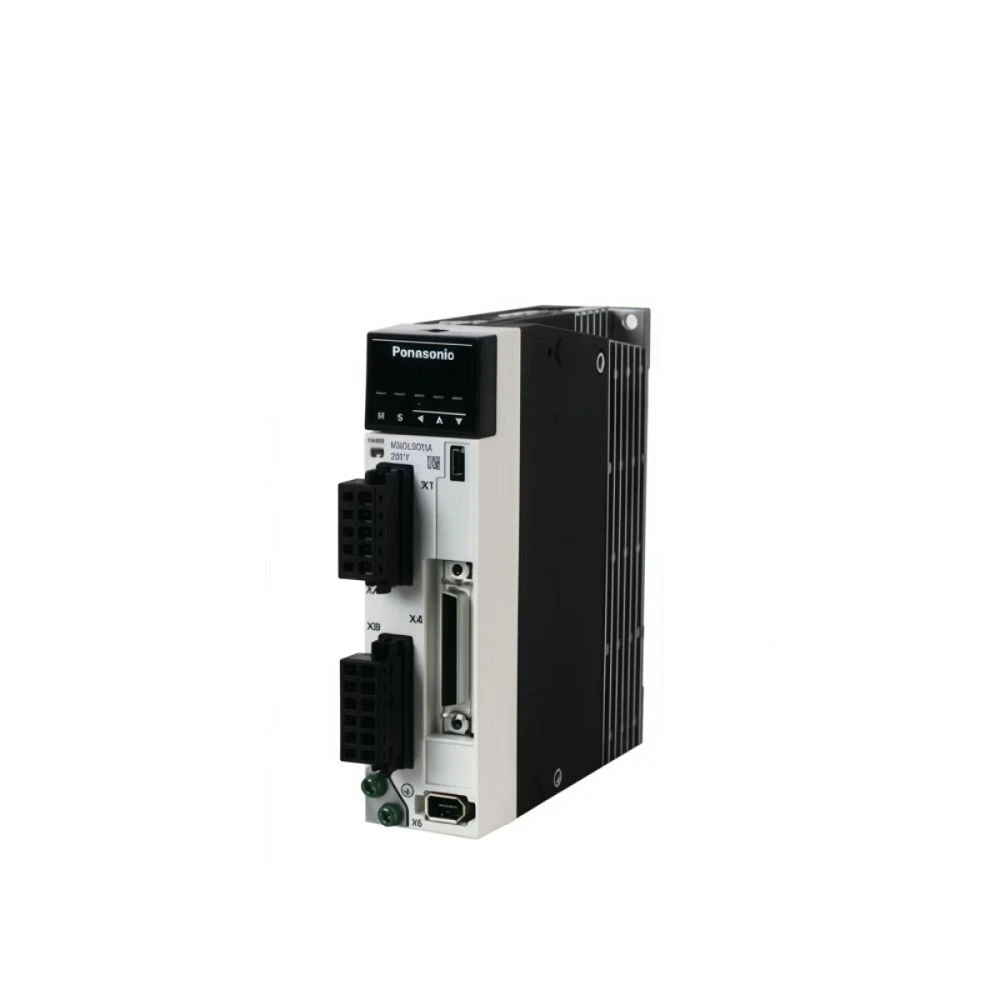

Our Panasonic MADLN05SE Servo Drive is a compact controller of the MINAS A6S series. With advanced pulse positioning control, it delivers stable output and fast signal response. Ideal for low-power motion control, it works seamlessly with compatible servo motors for various industrial tasks. As an authorized INOVANCE distributor, we provide a full range of industrial automation products and customized solutions.

Key Benefits

▶Slim design saves equipment installation space

▶High-precision signal feedback minimizes positioning errors

▶Wide input voltage suits various factory power supplies

Technical Specifications

Parameter	Specification
Model	MADLN05SE, MINAS A6SE Type A
Control Type	Pulse train / Position control
Encoder	23-bit 7-wire serial absolute encoder
Control Modes	Position, internal speed, switchable via parameters
I/O	10 inputs, 6 outputs, pulse & analog channels available
Power Supply	1/3-phase AC 200V~240V, 50/60Hz
Communication	USB for parameter setup and monitoring
Regenerative Resistor	External type only
Response Frequency	3.2kHz
Dimension & Weight	40×150×130mm, 0.8kg
Note	Incremental system supported, no built-in safety functions

Applications & Components

▶Light-duty robotic arms and multi-axis platforms

▶Small CNC and engraving machines

▶PCB production and electronic assembly equipment

Why Choose This Machine

Panasonic MADLN05SE Servo Drive features reliable performance and rational layout. It is highly compatible with matched motors, easy to install and maintain, perfectly meeting diverse low-power automation requirements.

Part of Your Smart Factory

Panasonic MADLN05SE Servo Drive serves as a key motion control unit for smart factories. It connects well with industrial control systems to adjust operation flexibly, reduce downtime and ensure smooth production.
