Product Introduction

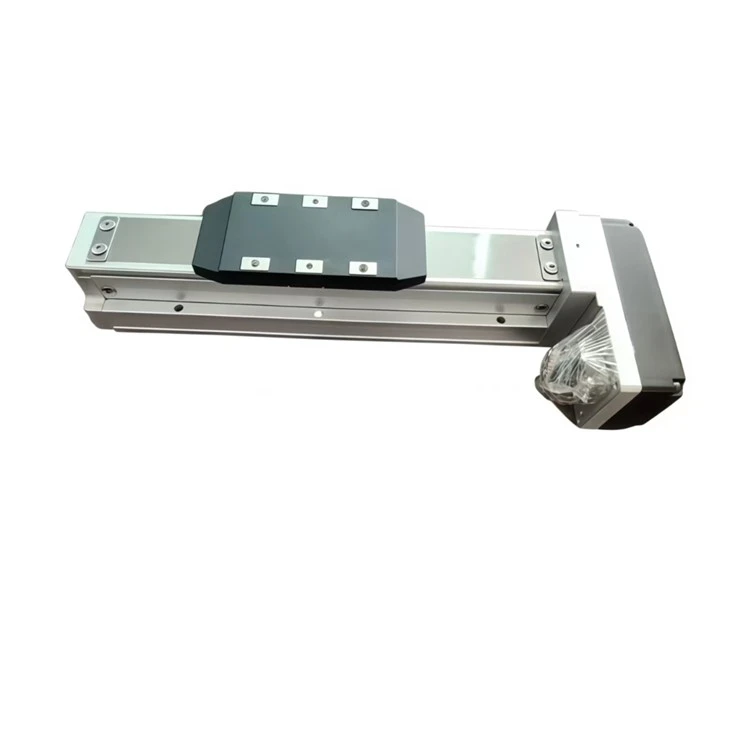

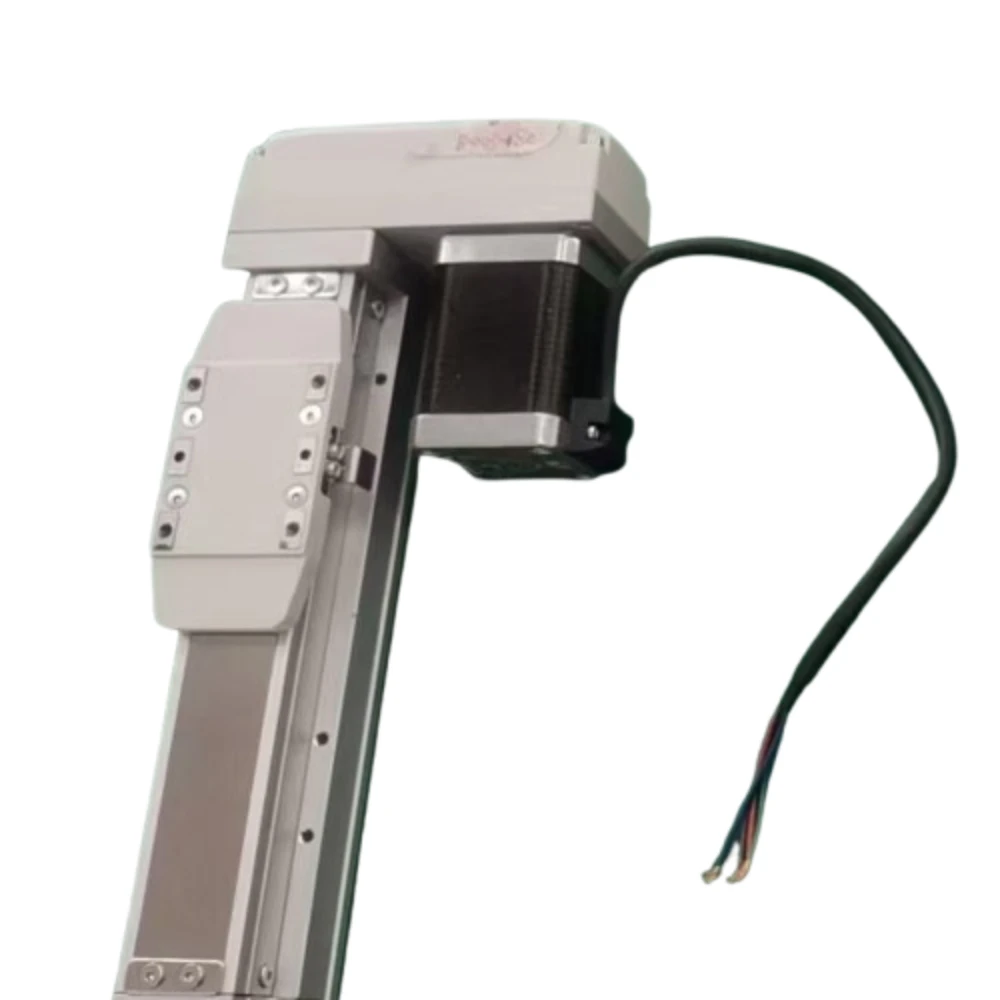

Lead Screw Embedded Linear Rail Unit Offset Left Drive is a newly designed industrial drive motor with left-side exclusive mounting and exposed structure. It is specially developed for intelligent production lines, open workstations and equipment upgrading scenarios, with optimized rigidity, wiring layout and heat dissipation structure to provide stable and efficient power for various automated equipment.
Key Benefits
▶Built around left-side mounting logic, the overall structure is more coordinated and less prone to offset during long-term operation
▶Adopts high-efficiency winding configuration to maintain full performance with lower energy input
▶Excellent instantaneous load capacity, ensuring stable operation even under sudden changes in workload

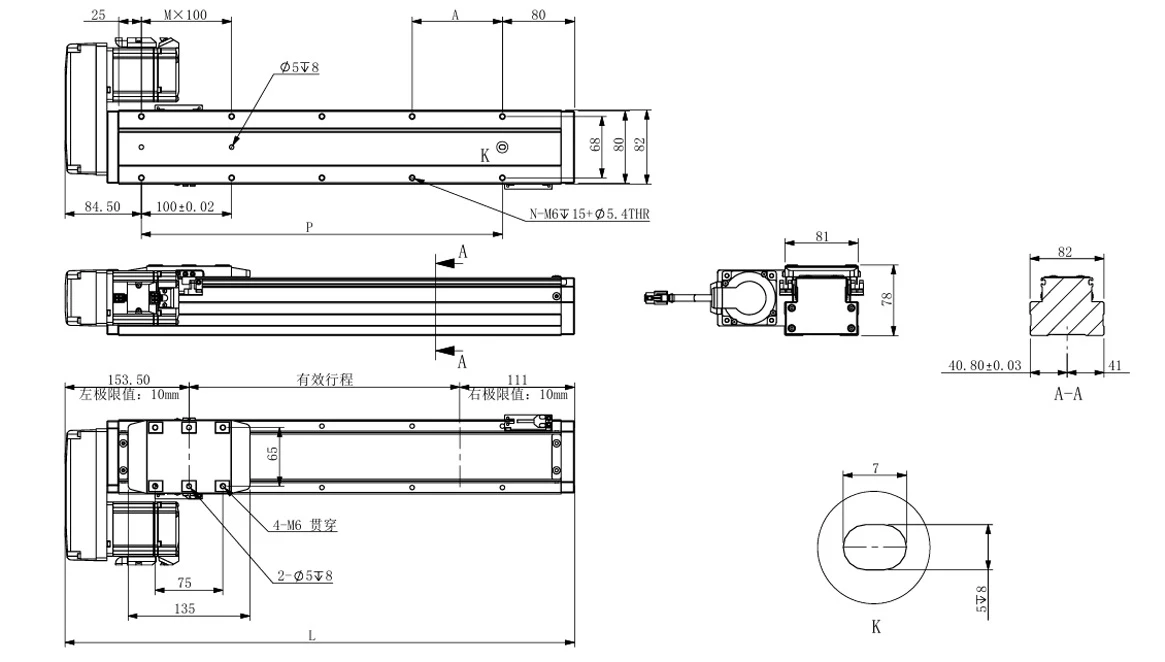

Technical Specifications
|
Lead Screw Embedded Linear Rail Unit Offset Left Drive |
|||||||||||||||||||||
|
Effective Stroke |
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
|
L |
314.50 |
364.50 |
414.50 |
464.50 |
514.50 |
564.50 |
614.50 |
664.50 |
714.50 |
764.50 |
814.50 |
864.50 |
914.50 |
964.50 |
1014.50 |
1064.50 |
1114.50 |
1164.50 |
1214.50 |
1264.50 |
1314.50 |
|
A |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
|
M |
1 |
1 |
2 |
2 |
3 |
3 |
4 |
4 |
5 |
5 |
6 |
6 |
7 |
7 |
8 |
8 |
9 |
9 |
10 |
10 |
11 |
|
N |
6 |
6 |
8 |
8 |
10 |
10 |
12 |
12 |
14 |
14 |
16 |
16 |
18 |
18 |
20 |
20 |
22 |
22 |
24 |
24 |
26 |
|
P |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
1100 |
1150 |
|
KG |
3.57 |
3.92 |
4.27 |
4.62 |
4.97 |
5.32 |
5.67 |
6.02 |
6.37 |
6.72 |
7.07 |
7.42 |
7.77 |
8.12 |
8.47 |
8.82 |
9.17 |
9.52 |
9.87 |
10.22 |
10.57 |
Applications & Components
▶Hydraulic and pneumatic auxiliary drive equipment and automatic control components
▶Woodworking machinery, edge banding and surface treatment transmission systems
▶Electronic manufacturing equipment, chip processing and conveying mechanisms
Why Choose This Machine
This product adopts a targeted design for left-side installation, which is more in line with the actual layout of industrial equipment and avoids the hidden dangers caused by inconsistent structure.
It has excellent stability in continuous operation and can maintain consistent performance under complex working conditions.
Part of Your Smart Factory
This motor can be flexibly embedded into the intelligent production nodes to support real-time adjustment and fast switching of diversified production tasks.
FAQ(Frequently Asked Questions)
Q: Will the left-side design make installation more complicated?
A: On the contrary, the special left-side structure makes installation more direct and accurate. It can be quickly positioned without additional adapters, greatly improving assembly efficiency.
Q: Can this motor work with different sensors and control modules?
A: Yes, it has good compatibility with common sensors and control systems, and can easily form a complete driving and control scheme for intelligent stations.
Q: How does this motor perform in high-vibration industrial sites?
A: The frame and internal structure are specially optimized for vibration resistance, so it can keep running steadily even in workshops with frequent vibration and shock, without obvious deviation or noise increase.
