Product Introduction
Key Benefits
▶ Ultra-thin, flat, native structure that fits even the most confined bottom mounting space.
▶ Installation reference plane – output shaft integrated processing with micrometer-level concentricity with zero deviation.
▶ A side-opening, non-disassembly maintenance structure allows for repairs to be completed without lifting the machine or interrupting operations.
Technical Specifications
|

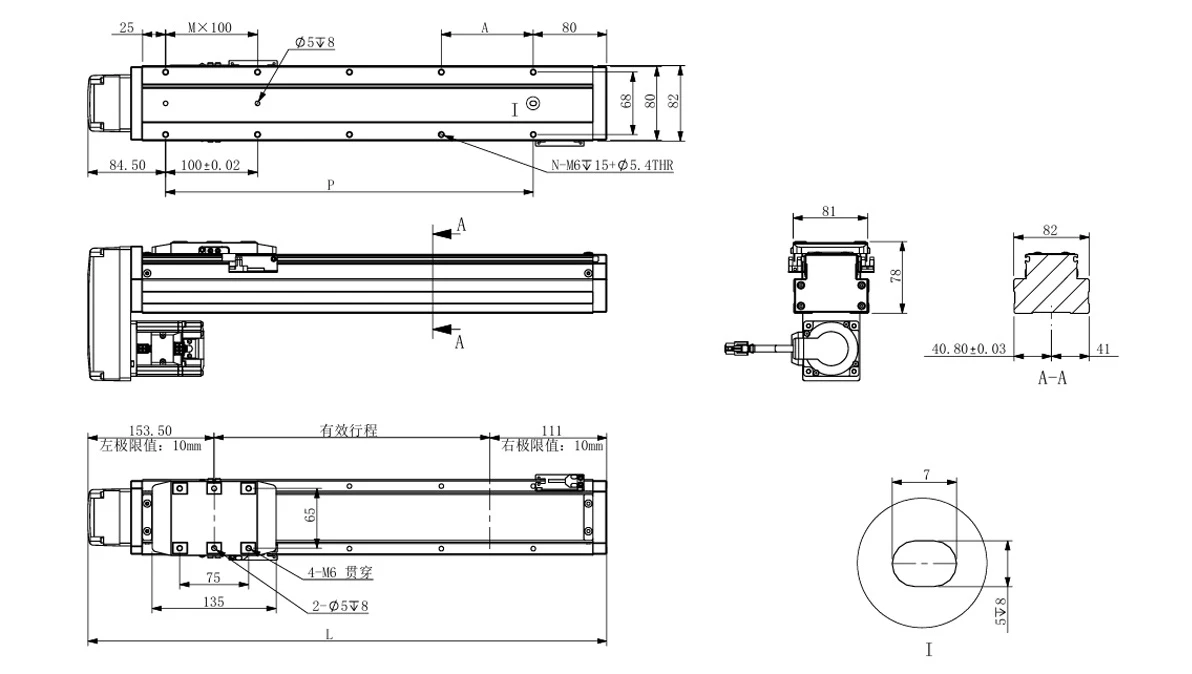

Lead Screw Embedded Linear Carriage Underdrive Layout |
|||||||||||||||||||||
|
Effective Stroke |
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
|
L |
314.50 |
364.50 |
414.50 |
464.50 |
514.50 |
564.50 |
614.50 |
664.50 |
714.50 |
764.50 |
814.50 |
864.50 |
914.50 |
964.50 |
1014.50 |
1064.50 |
1114.50 |
1164.50 |
1214.50 |
1264.50 |
1314.50 |
|
A |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
|
M |
1 |
1 |
2 |
2 |
3 |
3 |
4 |
4 |
5 |
5 |
6 |
6 |
7 |
7 |
8 |
8 |
9 |
9 |
10 |
10 |
11 |
|
N |
6 |
6 |
8 |
8 |
10 |
10 |
12 |
12 |
14 |
14 |
16 |
16 |
18 |
18 |
20 |
20 |
22 |
22 |
24 |
24 |
26 |
|
P |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
1100 |
1150 |
|
KG |
3.57 |
3.92 |
4.27 |
4.62 |
4.97 |
5.32 |
5.67 |
6.02 |
6.37 |
6.72 |
7.07 |
7.42 |
7.77 |
8.12 |
8.47 |
8.82 |
9.17 |
9.52 |
9.87 |
10.22 |
10.57 |
Applications & Components
▶ Incredibly small AGV/AMR guidance system for driving mounted on frame
▶ Incredibly small automated desk manufacturing machine driving system mounted on bottom
▶ Incredibly small semiconductor wafer conveyor and testing driving system mounted on bottom
Why Choose This Machine
Thanks to its special side-opening design, the issue of downtime and disassembly caused by the mounting of the motor at the bottom has been successfully overcome in this way. The entire process of maintenance does not necessitate any disassembly or lifting of the machine, making it possible to change the worn-out components quickly to greatly reduce downtime and O&M costs.
Part of Your Smart Factory
Lead Screw Embedded Linear Carriage Underdrive Layout fully satisfies the demand for miniaturization and modularity and has high adaptability to be used on the assembly line in smart factories, thereby overcoming the limitations of the conventional bottom side motor. The SKK8 series motor bottom side BM has great significance in smart factories.
FAQ(Frequently Asked Questions)
Q: What is the minimum thickness possible for this motor? Is it possible to make this type of motor fit into a 8mm bottom sinking slot?
A: Yes. The deepest possible thickness in terms of bottom sinking can reach 8mm for this particular motor. This will certainly be able to satisfy your demand for the depth bottom space. Even under extremely limited bottom space conditions, we can still produce ultra-thin motors for you.
Q: Motor needs to be taken out for maintenance without tools?
A: Yes. The motor is designed to have a special side door system that allows maintenance without using any tools. You will not need to take out the motor from the machine for maintenance purposes, which includes changing worn-out parts, checking wires, and doing some other tasks. All these things can be done by just removing the side door of the motor without lifting the machine, making it easier to maintain.
Question: Is there any possibility that the labyrinth seal can be effective even when the coolant and oil are splashed onto the shop floor?
A: Yes. This is due to the use of the three-stage labyrinth seal design used in the engine. As opposed to the rubber ring seal design that gets worn out due to friction, the labyrinth seal design is more durable and effective in its sealing processes.
