Product Introduction

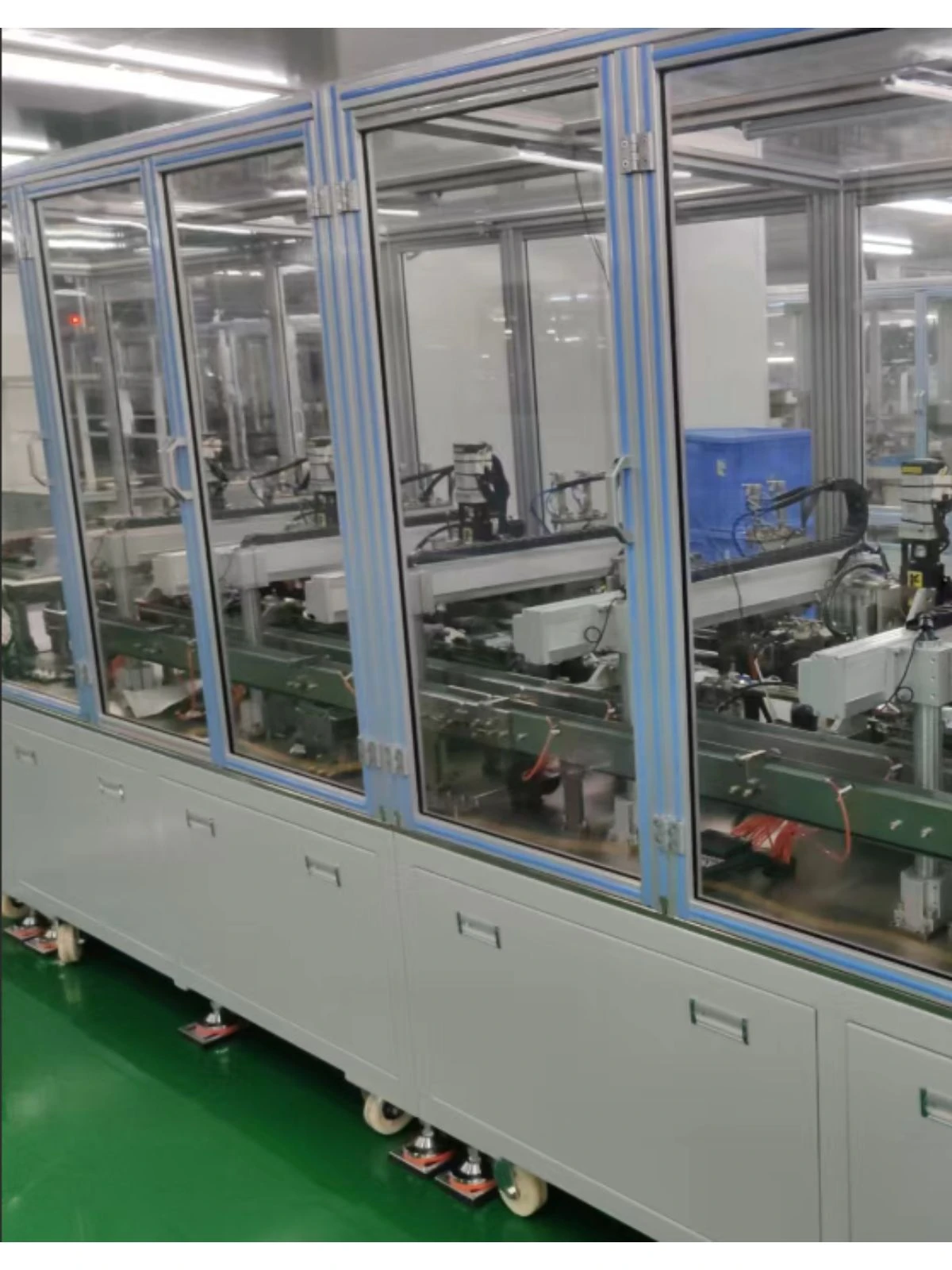

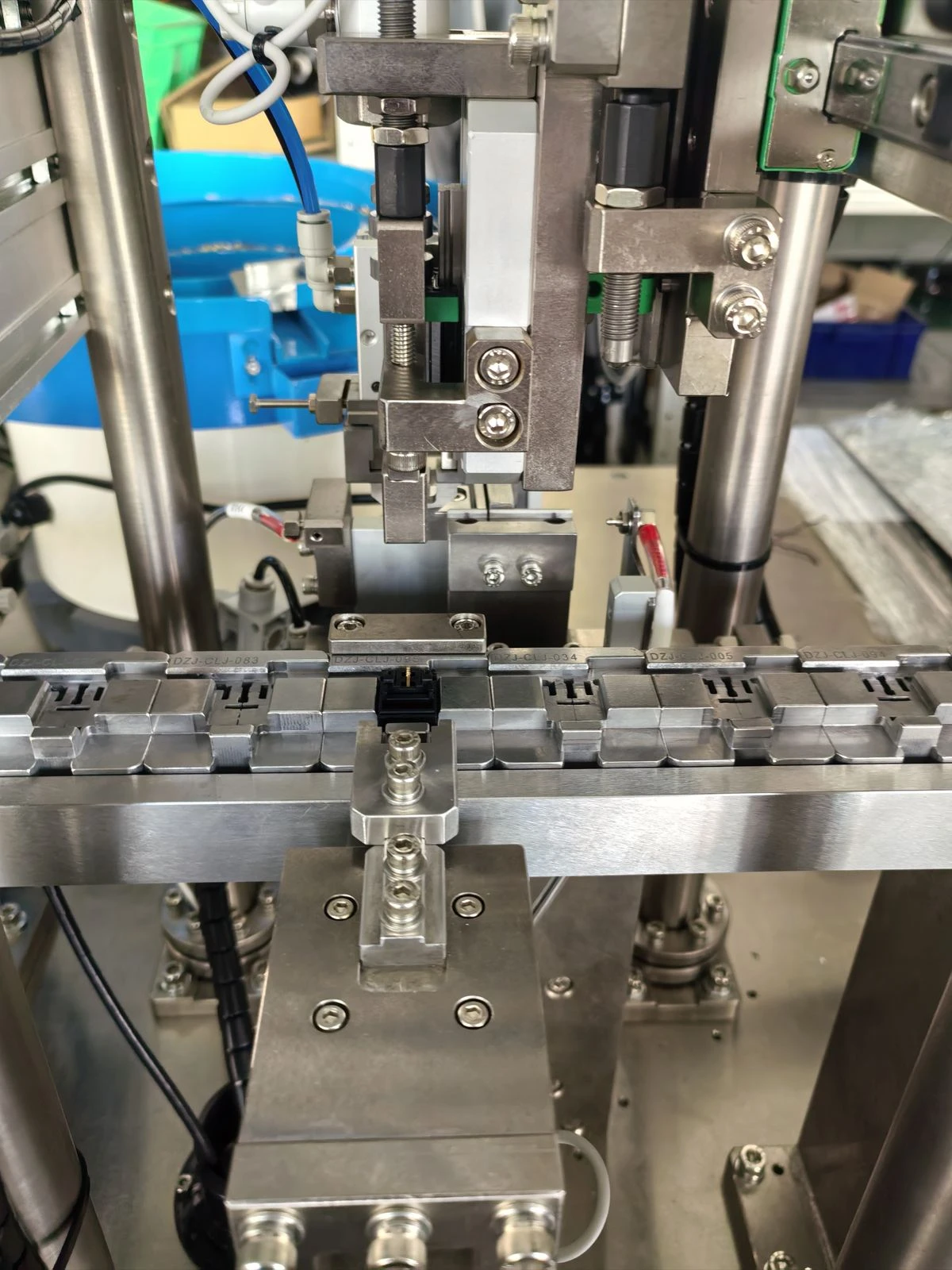

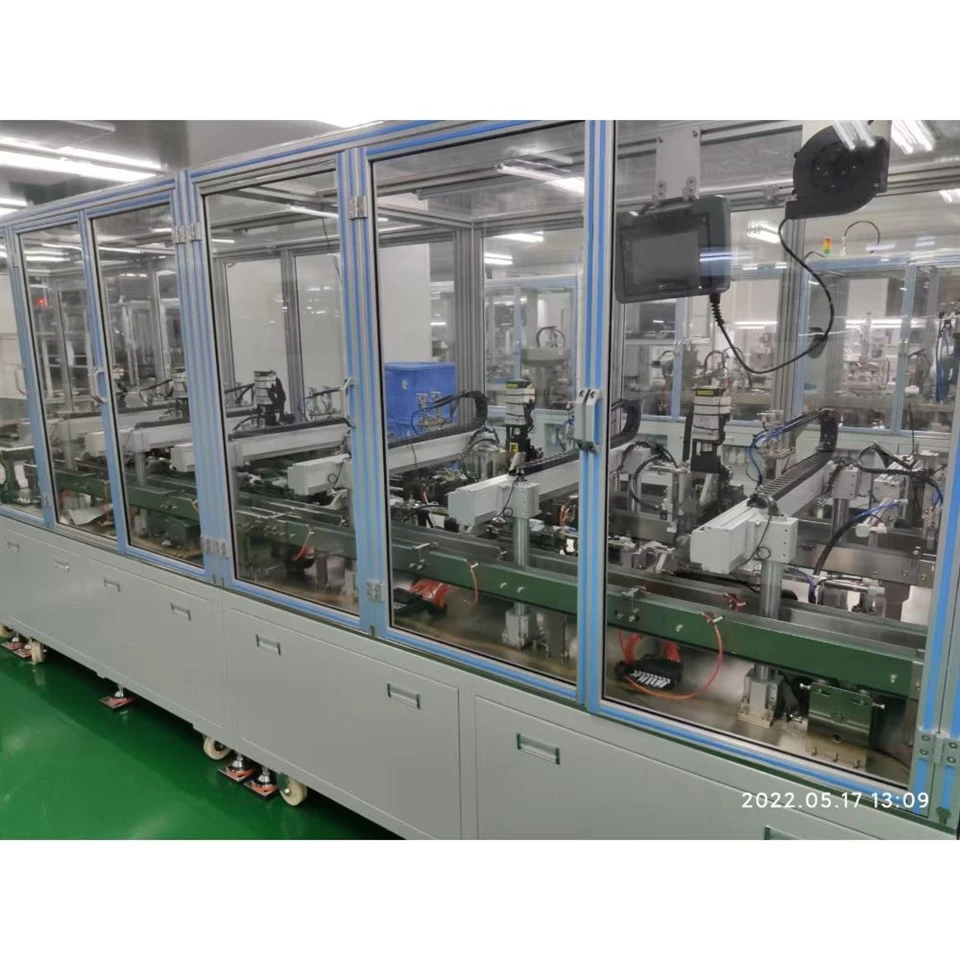

The Resistor Installation Machine is a specialized automated equipment developed for sorting, positioning and mounting resistors onto electronic components or circuit assemblies. It adopts precision feeding mechanism and high-speed alignment system, completing automatic material handling, component placement and locking installation in a single continuous process. Featuring high installation accuracy and stable operation efficiency, it effectively prevents misalignment, wrong insertion and component damage, and is widely used in batch resistor installation for relays, control modules and electronic circuit assemblies.
Key Benefits
▶Precision alignment design ensures consistent resistor placement accuracy and mounting stability
▶Automatic feeding and installation reduce manual operation and minimize human errors
▶Quick-adjustable guide rails support fast switching of different resistor specifications
Technical Specifications
|
Machine Name |
Resistor Installation Machine |
|
Processing Object |
Axial lead resistors, radial lead resistors, SMD resistors |
|
Installation Function |
Feeding, positioning, insertion and locking installation |
|
Control System |
PLC + Touch Screen Automatic Control |
|
Working Voltage |
220V 50Hz |
|
Operation Mode |
Fully automatic cycle / Manual single station operation |
Applications & Components
▶Relay resistor installation
▶Control module resistor mounting
▶Electronic circuit assembly
Why Choose This Machine
This Resistor Installation Machine is purpose-built for electronic component assembly processes, with outstanding positioning accuracy and stable continuous operation performance. It replaces traditional manual installation methods, significantly reducing assembly defects and improving overall production efficiency for mass manufacturing.
Part of Your Smart Factory
Designed with a streamlined and compact layout, the machine occupies minimal floor space and supports flexible standalone workstation placement. It also reserves standard docking interfaces to seamlessly connect with upstream and downstream automated equipment, with built-in production data logging and operation monitoring functions to meet the requirements of smart workshop digital production management.
FAQ(Frequently Asked Questions)
Q: Will the installation process damage the resistor leads or body?
A: It adopts soft clamping and slow insertion mechanism, effectively avoiding lead bending, component cracking or surface damage during installation.
Q: Is product changeover and parameter adjustment simple for ordinary workers?
A: The touch screen interface supports recipe storage and one-key recall, allowing quick setup for new resistor specifications without complex debugging.
Q: Can the machine run continuously for long shifts without performance degradation?
A: Optimized mechanical structure and high-quality components ensure stable operation, consistent installation accuracy and low failure rate during long-hour continuous production.
