Product Introduction

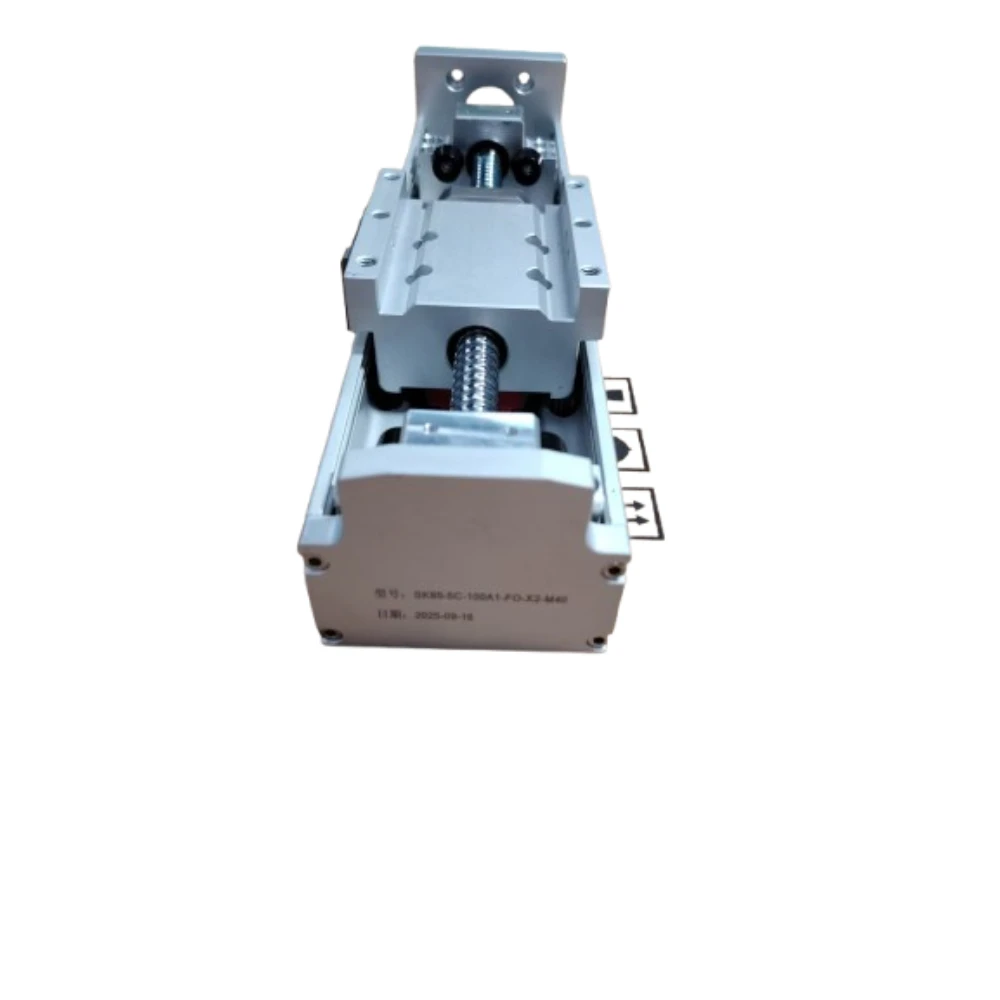

The Right-angle Offset Ball Screw Linear Drive Module adopts integrated aluminum alloy forming to optimize overall structural toughness, effectively buffer running vibration in reciprocating movement and avoid position offset; equipped with matched high-precision transmission assembly and silent guide rail, it owns smooth operation and strong environmental compatibility, supporting mainstream 200W/400W motor installation and multi-stroke specification selection, widely applicable to automated processing, product sorting and mechanical linkage auxiliary axis
Key Benefits
▶Modular Easy Assembly
▶All-Weather Stable Operation
▶Wide Base Reinforced Structure

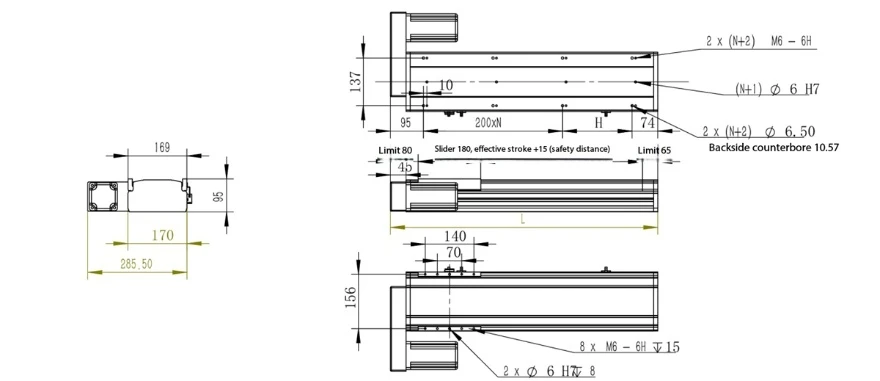

Technical Specifications
|
Module Model |
Right-angle Offset Ball Screw Linear Drive Module |
||
|
Basic Specifications |
XXXXX |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Horizontal Load Capacity |
70 / 47 / 24 kg |
||
|
Vertical Load Capacity |
17 / 12 / 6 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
φ16 / φ20 mm |
||
|
Linear Guide Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX572 NPN |
||
|
Built-in Sensor |
- |
||
|
Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
419 |
1 |
50 |
|
150 |
469 |
1 |
100 |
|
200 |
519 |
1 |
150 |
|
250 |
569 |
1 |
200 |
|
300 |
619 |
2 |
50 |
|
350 |
669 |
2 |
100 |
|
400 |
719 |
2 |
150 |
|
450 |
769 |
2 |
200 |
|
500 |
819 |
3 |
50 |
|
550 |
869 |
3 |
100 |
|
600 |
919 |
3 |
150 |
|
650 |
969 |
3 |
200 |
|
700 |
1019 |
4 |
50 |
|
750 |
1069 |
4 |
100 |
|
800 |
1119 |
4 |
150 |
|
850 |
1169 |
4 |
200 |
|
900 |
1219 |
5 |
50 |
|
950 |
1269 |
5 |
100 |
|
1000 |
1319 |
5 |
150 |
Applications & Components
▶Product sorting machinery
▶Handling linkage mechanism
▶Small intelligent production line
Why Choose This Machine
Different from ordinary standard sliders, Right-angle Offset Ball Screw Linear Drive Module adopts optimized widened frame structure with better vibration absorption and straight running performance; it features diverse specifications, low daily maintenance cost and strong compatibility, being a cost-effective preferred part for factory standard and non-standard automated equipment upgrading.
Part of Your Smart Factory
Matching the lightweight and intelligent transformation of factory equipment, Right-angle Mounted Ball Screw Linear Unit wide frame module relies on flexible specification collocation and stable mechanical performance, helping enterprises simplify equipment structure and realize efficient automatic operation.
