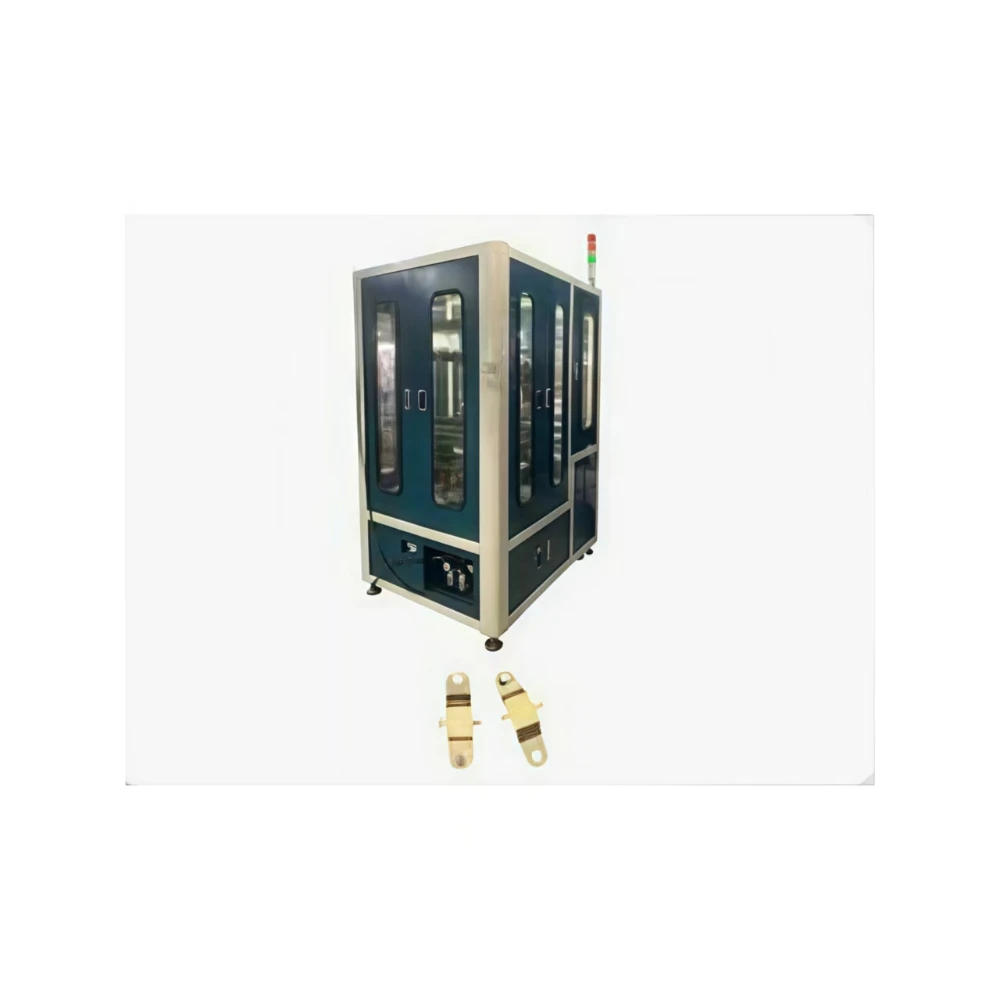

Product Introduction
The Yoke Terminal Riveting Machine is a specialized precision riveting equipment designed for crimping, fastening and forming of yoke and terminal assemblies in electromagnetic components. It adopts constant-pressure control and precise alignment mechanism, completing automatic positioning, pressure riveting and one-time forming in cyclic operation. Featuring stable riveting force and high forming accuracy, it effectively prevents loose connections, terminal deflection and structural deformation, and is widely used in batch assembly of relay yokes, electrical terminals and related conductive components.
Key Benefits
▶Closed-loop pressure monitoring ensures consistent riveting force and forming quality
▶Anti-shock riveting mode protects yoke structure without affecting magnetic performance
▶Interchangeable positioning fixtures support fast switching of different yoke specifications
Technical Specifications
|
Machine Name |
Yoke Terminal Riveting Machine |
|
Processing Object |
Relay yoke, electromagnetic component terminal, conductive assembly |
|
Riveting Function |
Yoke and terminal crimping, fastening and forming |
|
Control System |
PLC + Touch Screen Pressure & Stroke Control |
|
Working Voltage |
220V 50Hz |
|
Operation Mode |
Automatic cycle / Manual single riveting |
Applications & Components
▶Relay yoke assembly
▶Control module terminal connection
▶Automated production line riveting stations.
Why Choose This Machine
This yoke terminal riveting machine is purpose-built for electromagnetic component assembly, with precise pressure control and stable riveting performance. It replaces traditional manual riveting processes, reducing labor costs and defect rates while significantly improving production efficiency for batch manufacturing.

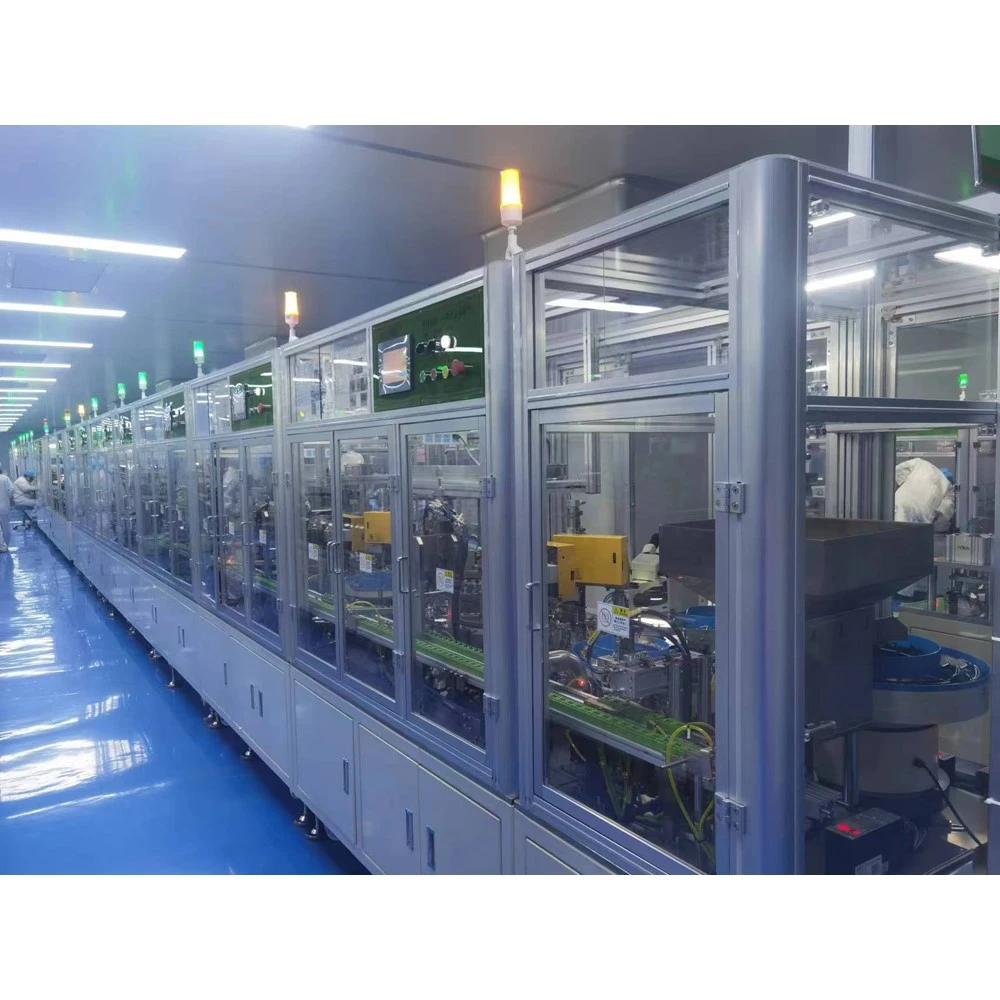

Part of Your Smart Factory
Designed with slim integrated layout, this Yoke Terminal Riveting Machine occupies small floor space and supports standalone station placement. It can also be smoothly connected to upstream and downstream automated lines, equipped with running status monitoring and batch data logging functions, perfectly adapting to unmanned production and lean quality control in smart workshops.
FAQ(Frequently Asked Questions)
Q: Can riveting precision stay consistent after long-term use?
A: It adopts high-precision positioning components and anti-wear structural design, keeping riveting accuracy and forming effect stable even after long-time repeated operation.
Q: Can this machine meet high precision riveting requirements for yoke terminals?
A: It adopts precise stroke positioning and constant pressure output design, with high riveting repeat accuracy, ensuring every yoke and terminal assembly stays uniform in size and tightness.
Q: Is it compatible with multiple types of relay yoke terminals?
A: Riveting pressure, stroke and positioning fixtures are all adjustable and replaceable, able to adapt to various specifications without modifying the main machine structure.
