Product Introduction
The Iron Core Riveting Machine is a dedicated precision riveting device tailored for pressing, joining and integral forming of electromagnetic iron core components. It adopts steady power drive and high-precision limit positioning structure, finishing automatic alignment, pressure riveting and one-piece forming in cyclic workflow. With balanced riveting stress and stable assembly tightness, it effectively avoids core displacement, joint loosening and structural distortion, and is widely applicable to batch riveting and assembly of motor iron cores, relay iron cores and electromagnetic core parts.
Key Benefits
▶Simple human-machine interaction, easy parameter setting and daily operation
▶Replaceable positioning jig supports fast switching of different core dimensions
▶Gentle riveting process avoids internal lamination gap and magnetic performance loss
Technical Specifications
|
Machine Name |
Iron Core Riveting Machine |
|
Processing Object |
Motor iron core, relay iron core, electromagnetic core component |
|
Riveting Function |
Core pressing, rivet joining and integral forming |
|
Control System |
PLC + Touch Screen Pressure & Stroke Adjustable |
|
Working Voltage |
220V 50Hz |
|
Operation Mode |
Automatic cycle / Manual single station riveting |
Applications & Components
▶Motor iron core assembly

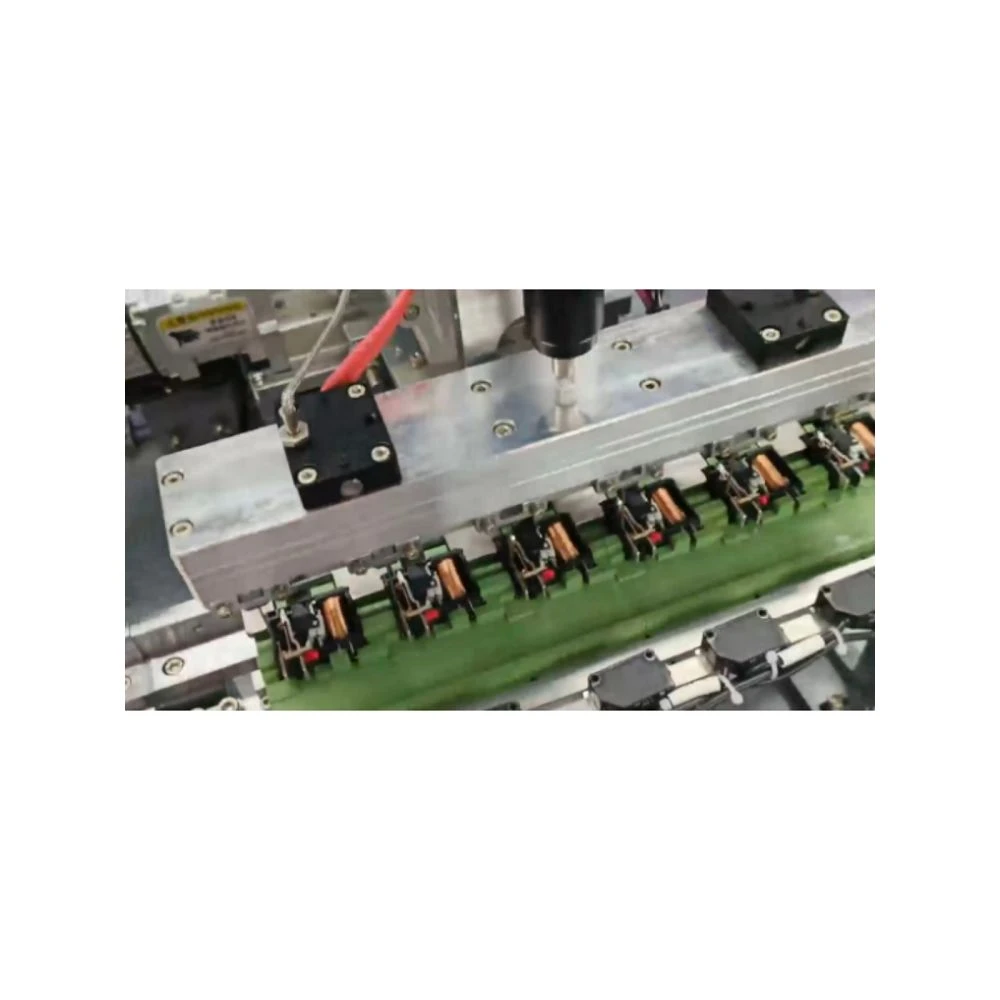

▶Relay core riveting
▶Electrical lamination core forming
Why Choose This Machine
This Iron Core Riveting Machine is professionally developed for electromagnetic core assembly process, featuring reliable riveting stability and excellent consistency. It optimizes traditional cumbersome assembly steps, cuts manual dependence and defective rate, and boosts overall batch production efficiency remarkably.
Part of Your Smart Factory

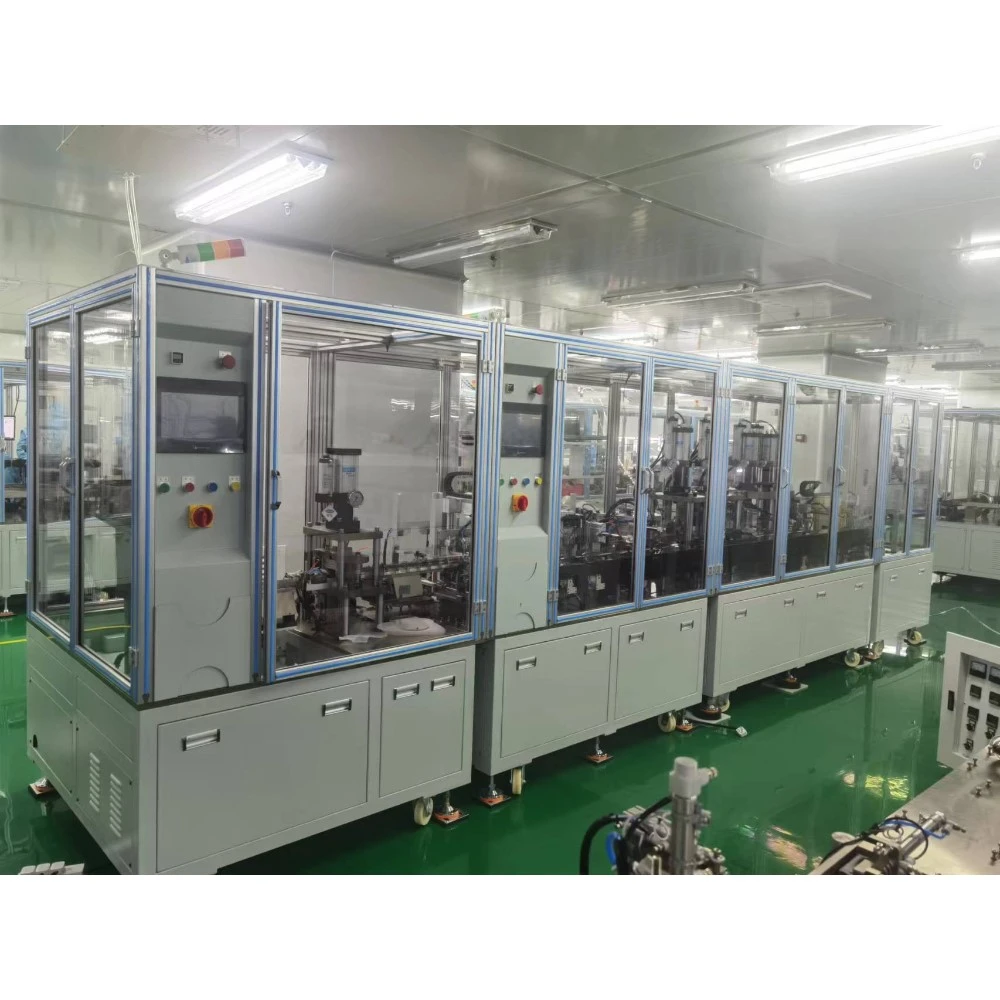

With streamlined compact structure, the machine can be placed independently at any workshop workstation. It can also be smoothly embedded into automated assembly lines, equipped with operation data statistics and abnormal early warning function, matching smart factory digital production and lean process management.
FAQ(Frequently Asked Questions)
Q: What kind of iron cores is this machine suitable for riveting?
A: It fits relay iron core, motor laminated iron core and electromagnetic core parts, covering most mainstream small and medium-sized core specifications.
Q: How to guarantee the riveting lamination tightness of iron core?
A: Adopting pressure and position dual closed-loop control, it precisely controls riveting depth and pressure to keep core lamination compact and uniform.
Q: Can it be integrated into automated production line easily?
A: It features standard external interface and compact layout, which can be seamlessly connected with upstream and downstream equipment without complicated transformation.
