Product Introduction

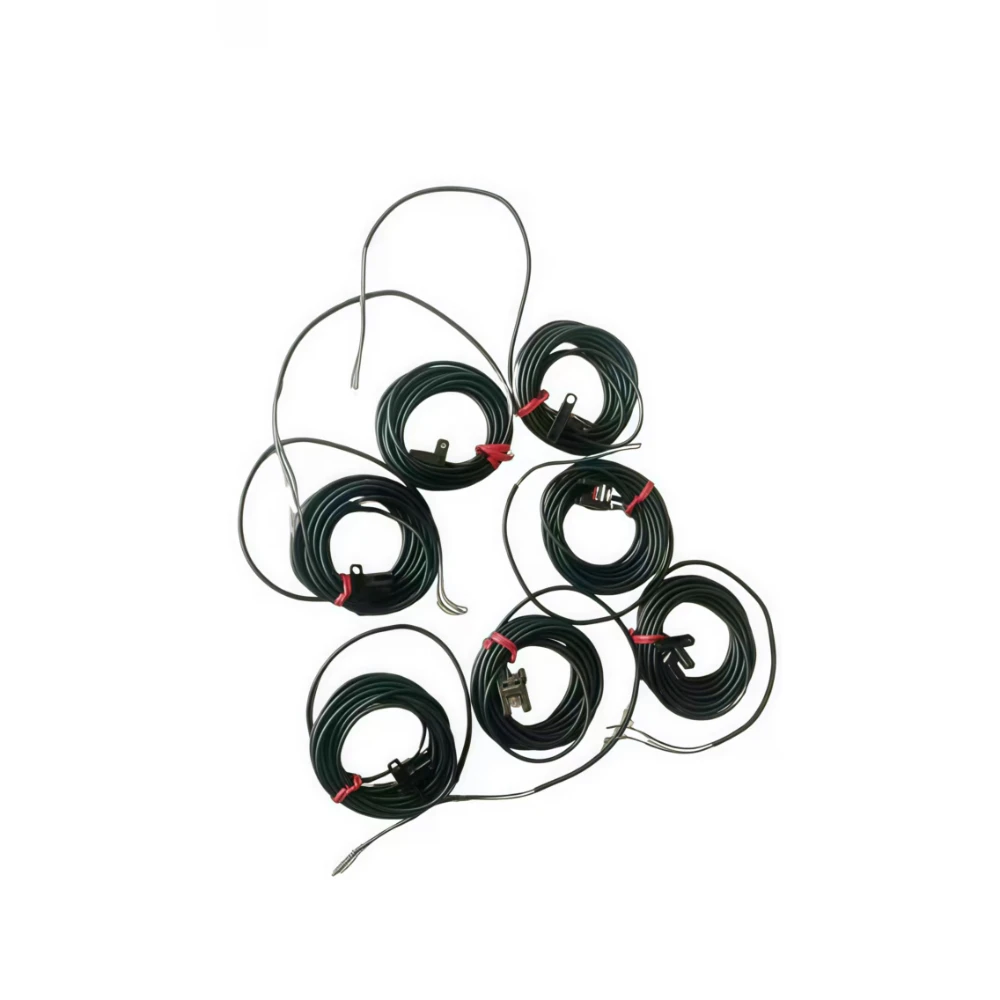

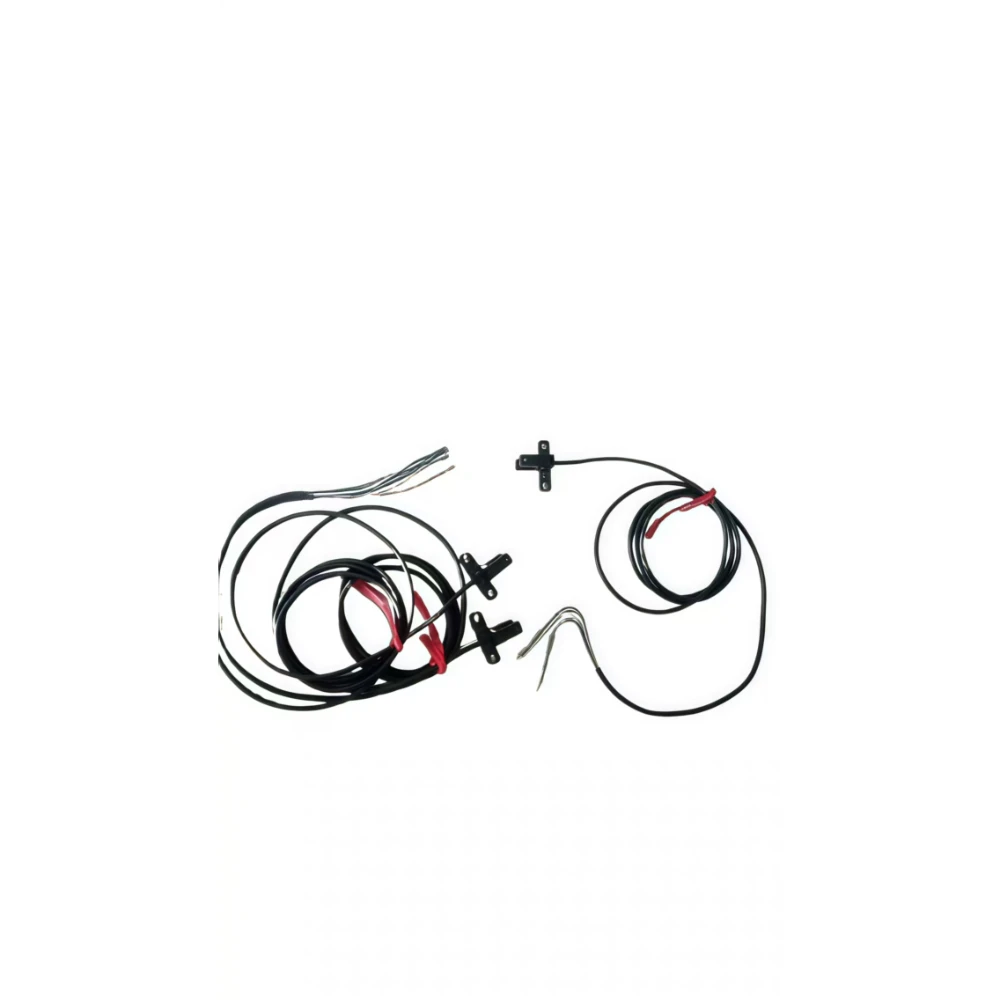

Our Panasonic PM Series U-shaped Photoelectric Sensor features an ultra-small integrated design, suitable for narrow mounting spaces of automated machinery. Built-in amplifier removes external signal modules, and fixed optical path requires no manual alignment. Equipped with full protection circuits, it runs stably for shading detection, limit induction and home position sensing in light industrial automation. We are an authorized INOVANCE distributor, providing complete industrial automation products and solutions.

Key Benefits

▶ Integrated amplifier optimizes circuit layout and simplifies on-site wiring

▶ Multiple internal protections prevent damage caused by wrong wiring

▶ Excellent sealing offers reliable dustproof and splashproof performance for workshop use

Technical Specifications

Parameter	Specification
Sensing Distance	Fixed 6mm
Minimum Detectable Object	0.8mm × 1.2mm opaque object
Hysteresis	≤0.05mm
Repeatability	≤0.01mm
Power Supply Voltage	5V~24V DC ±10%
Output Type	NPN / PNP Open-collector, Light-ON / Dark-ON selectable
Max Response Frequency	3kHz
Response Time	Light ON ≤20µs, Dark ON ≤80µs
Sink/Source Current	50mA Max
Protection	Built-in short-circuit protection

Applications & Components

▶ Mechanical moving parts home position induction

▶ Equipment travel limit protection

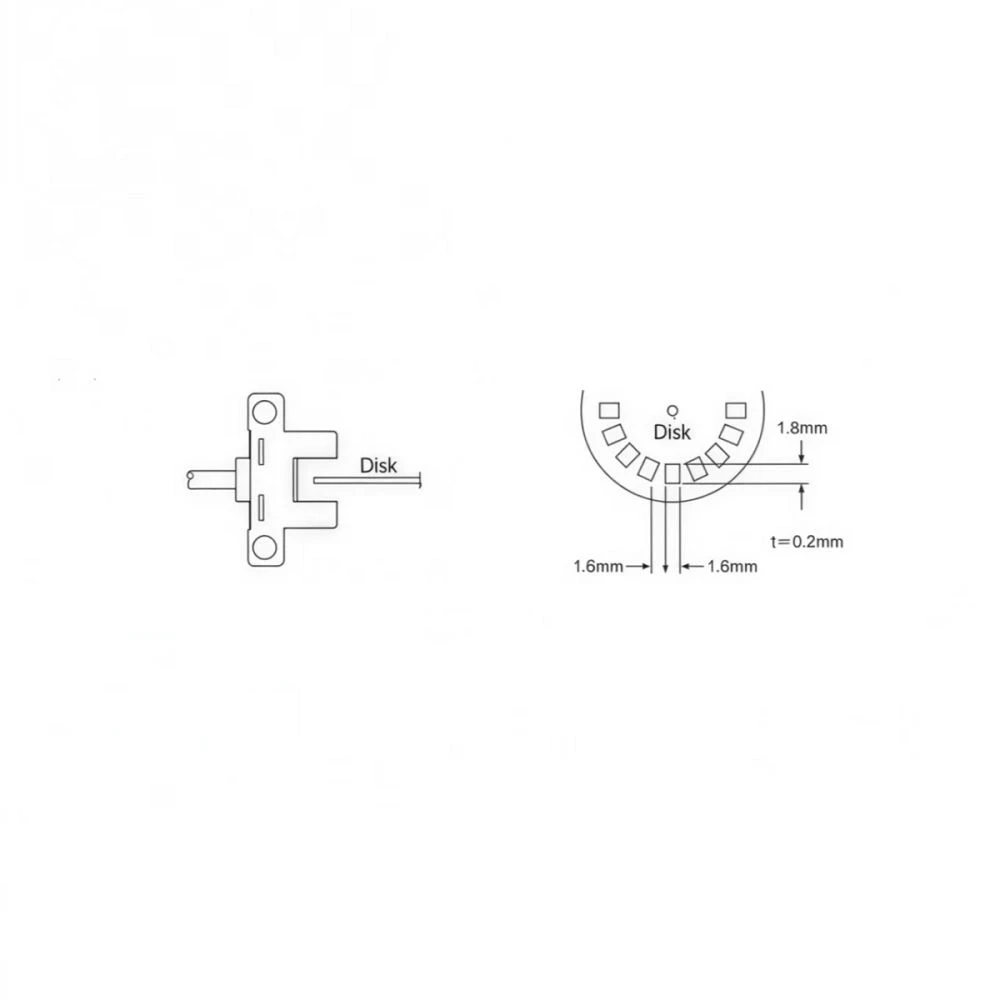

▶ Plate positioning and rotating parts origin confirmation

Why Choose This Machine

Panasonic PM Series U-shaped Photoelectric Sensor passes strict factory testing for stable sensing performance and consistent quality. Standard mounting holes support direct replacement without equipment modification. Complete accessories and operation guides improve on-site debugging efficiency.

Part of Your Smart Factory

Panasonic PM Series U-shaped Photoelectric Sensor serves as a precision miniature sensing unit. It achieves automatic signal acquisition, reduces manual errors, standardizes production operations, and promotes refined and intelligent factory production management.
