Product Introduction

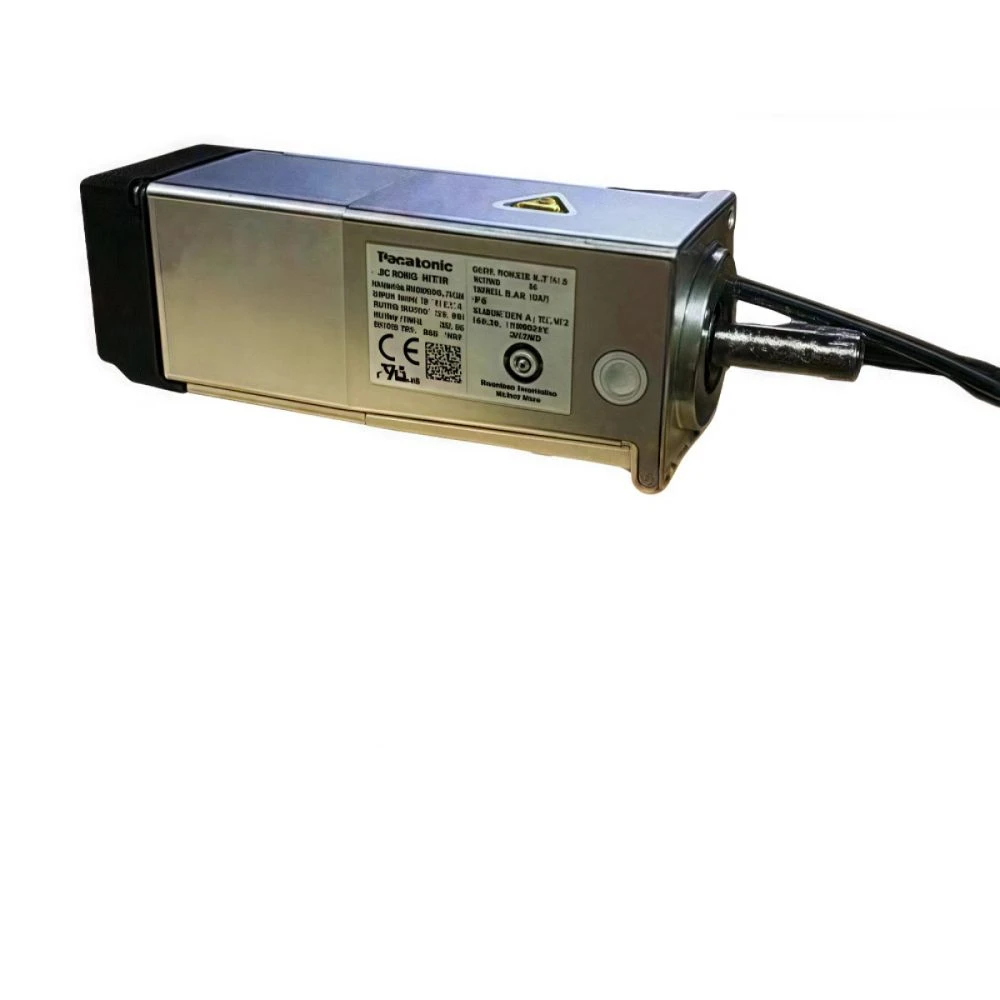

Our Panasonic MHMF012L1V2M Servo Motor is a high-inertia model from the MINAS A6 series, built for light-load precision motion control. Compact in size and stable in operation, it works well with various small automated production equipment. As an authorized INOVANCE distributor, we provide a full range of industrial automation products and customized solutions.

Key Benefits

▶ Fast response boosts production efficiency

▶ Built-in brake avoids position shift after power off

▶ Mini design saves installation space

Technical Specifications

Parameter	Specification
Model	MHMF012L1V2M, MINAS A6 High Inertia
Rated Power/Voltage	100W, 200V
Speed	Rated 3000r/min, Max 6500r/min
Torque	Rated 0.32N·m, Stall 0.33N·m, Peak 1.11N·m
Current	Rated 1.1A, Max 5.5A
Encoder	23-bit absolute/incremental, resolution 8388608
Brake	Equipped, 24V DC excitation
Load Capacity	Standard axial & radial load for operation and assembly
Structure	40mm flange, key & thread shaft, oil seal, lead wire, 0.64kg
Protection	IP65 (excluding shaft and wire end)

Applications & Components

▶ Textile machines for sewing and fabric cutting

▶ Mini handling robots and multi-axis platforms

▶ Laser marking, engraving and precision cutting devices

Why Choose This Machine

Panasonic MHMF012L1V2M Servo Motor is made with mature industrial technology for dependable performance. It matches perfectly with compatible servo drives and features simple installation and wiring. The solid structure suits regular industrial environments, and full after-sales service solves your problems in time..

Part of Your Smart Factory

Panasonic MHMF012L1V2M Servo Motor serves as a core drive unit for smart production lines. It enables real-time data collection and linkage control with industrial systems, adapting to diverse production needs and maintaining steady continuous operation.
