Product Introduction

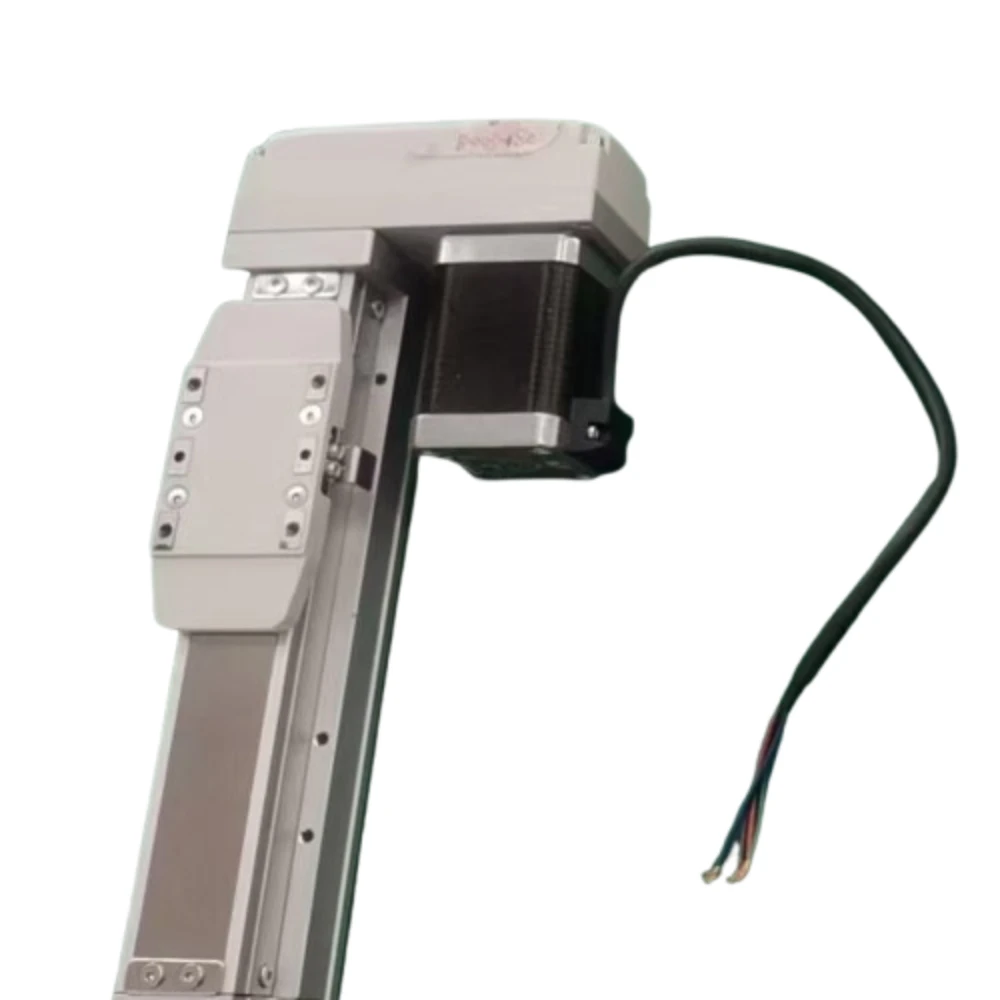

Our Electric Slide Table Actuator is a precision drive unit specially developed for left-side directional installation scenarios. Focusing on the core power needs of small automated equipment and precision transmission mechanisms, it has become a preferred dedicated power choice in the fields of industrial automation and precision manufacturing, relying on optimized directional structure, compact body design and stable operation performance. This unit not only adapts to the special layout requirements of left-side installation, but also upgrades in power output accuracy, heat dissipation efficiency and installation convenience, which can be directly matched with various directional assembly equipment, helping enterprises simplify the assembly process, improve equipment operation stability and reduce long-term use costs.

Key Benefits

▶Optimized left-side directional structure, high installation fit, no additional adapters needed, suitable for directional assembly scenarios

▶Compact and lightweight body, small size without occupying space, suitable for built-in narrow equipment and precision mechanism installation

▶Precision power output, uniform torque and stable speed, meeting the needs of high-precision transmission and positioning

Technical Specifications

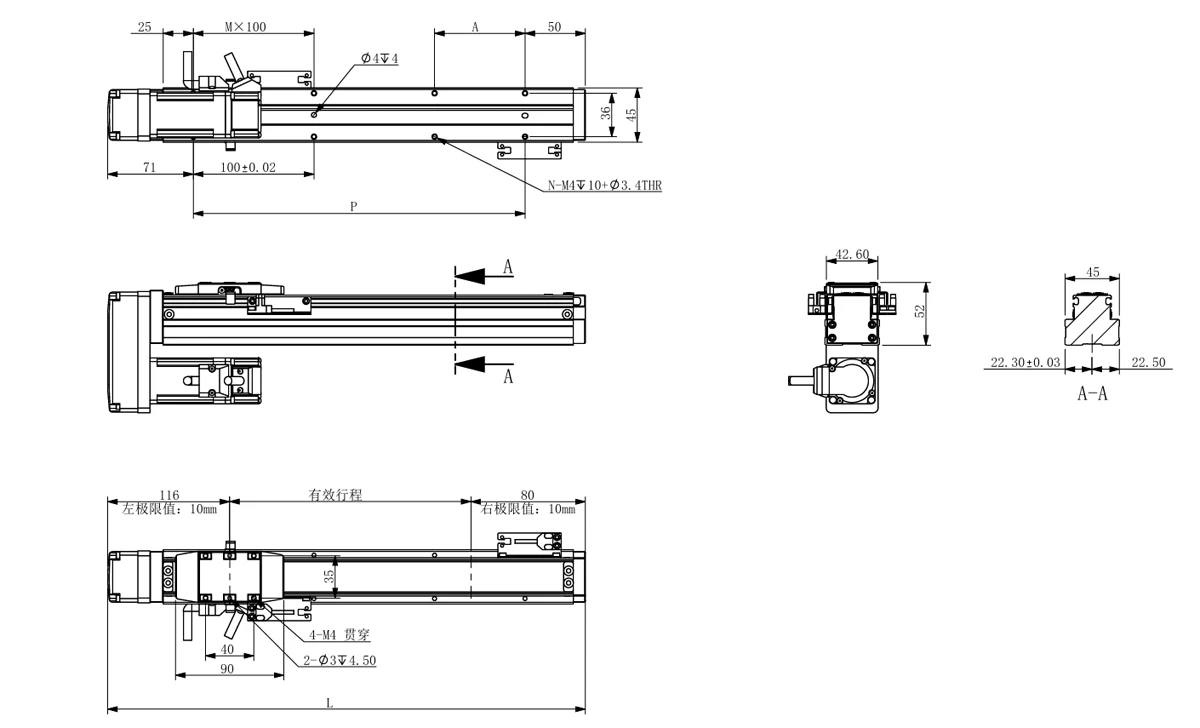

Electric Slide Table Actuator
Effective Stroke	50	100	150	200	250	300	350	400	450	500
L	246	296	346	396	446	496	546	596	646	696
A	25	75	25	75	25	75	25	75	25	75
M	1	1	2	2	3	3	4	4	5	5
N	6	6	8	8	10	10	12	12	14	14
P	125	175	225	275	325	375	425	475	525	575

product-1200-728

Applications & Components

▶Small automated execution mechanisms, left-side directional conveyor modules

▶Precision positioning sliding tables, fine-tuning equipment, small transmission machinery

▶3C electronic equipment, precision instruments, office automation equipment

Why Choose This Machine

Different from general-purpose motors, this module is specially tailored for three core scenarios: left-side directional installation, limited space and precision operation, accurately solving the pain points of traditional motors such as poor installation fit, excessive volume and insufficient power precision.

Part of Your Smart Factory

Electric Slide Table Actuator can be seamlessly integrated into smart factory and automated production line systems. As a dedicated directional power unit, it works efficiently with PLC control systems, sensor detection equipment and servo mechanisms to realize automatic start-stop, precise speed regulation, position control and linked operation. With stable performance and standardized interface, this product can adapt to modern production scenarios.

FAQ(Frequently Asked Questions)

Q: Can this product only be installed on the left side? Does it support other installation directions?

A: This product is mainly optimized for left-side directional installation and is most suitable for left-side installation scenarios; if there are special installation needs, you can contact customer service to provide equipment parameters, and we will provide a customized adaptation plan.

Q: Can it be adapted to automated control systems to achieve intelligent linkage?

A: Yes. This product adopts a standardized electrical interface, which can be directly connected to PLC and servo control systems to realize automatic start-stop, speed regulation and linked control, perfectly adapting to the use needs of smart factories and automated production lines.

Q: Will the compact body affect power output and heat dissipation effect?

A: No. While adopting a compact design, it optimizes the internal winding and heat dissipation structure. The power output and heat dissipation performance are not affected by the volume, which can meet the needs of long-term continuous operation with excellent temperature rise control.
