Product Introduction
Lead Screw Embedded Motion Stage Right Angle Drive is a dedicated industrial motor developed for right-side installation, compact equipment space and precision intermittent transmission. Instead of a generalized structure, it optimizes frame rigidity, wiring layout, rotor balance and bearing configuration specifically for right-side working conditions, solving problems such as excessive vibration, positioning shift, wiring interference and frequent maintenance. It focuses on stability, low noise and long service life, making it suitable for automated machines, small precision machine tools, packaging conveyors and intermittent start-stop equipment.
Key Benefits
▶Right-side dedicated structure with compact, interference-free layout.
▶ High precision dynamic balancing, extremely low vibrations and noise levels.
▶ Long-lasting sealed bearings with minimal maintenance and a long lifespan.
Technical Specifications
|

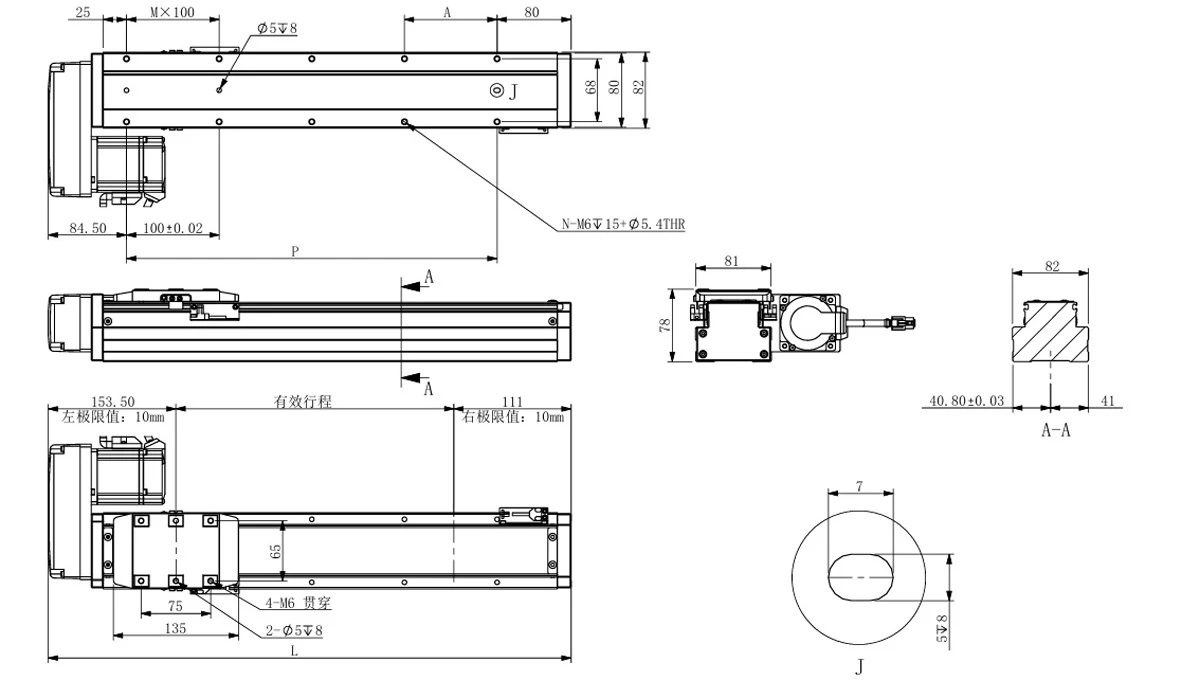

Lead Screw Embedded Motion Stage Right Angle Drive |
|||||||||||||||||||||
|
Effective Stroke |
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
|
L |
314.50 |
364.50 |
414.50 |
464.50 |
514.50 |
564.50 |
614.50 |
664.50 |
714.50 |
764.50 |
814.50 |
864.50 |
914.50 |
964.50 |
1014.50 |
1064.50 |
1114.50 |
1164.50 |
1214.50 |
1264.50 |
1314.50 |
|
A |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
100 |
50 |
|
M |
1 |
1 |
2 |
2 |
3 |
3 |
4 |
4 |
5 |
5 |
6 |
6 |
7 |
7 |
8 |
8 |
9 |
9 |
10 |
10 |
11 |
|
N |
6 |
6 |
8 |
8 |
10 |
10 |
12 |
12 |
14 |
14 |
16 |
16 |
18 |
18 |
20 |
20 |
22 |
22 |
24 |
24 |
26 |
|
P |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
650 |
700 |
750 |
800 |
850 |
900 |
950 |
1000 |
1050 |
1100 |
1150 |
|
KG |
3.57 |
3.92 |
4.27 |
4.62 |
4.97 |
5.32 |
5.67 |
6.02 |
6.37 |
6.72 |
7.07 |
7.42 |
7.77 |
8.12 |
8.47 |
8.82 |
9.17 |
9.52 |
9.87 |
10.22 |
10.57 |
Applications & Components
▶Right-side feed drive for small precision machine tools & CNC machines
▶Right-side drive & positioning for automatic packaging & labeling machines
▶Right-side power unit for intermittent conveyors & sorting mechanisms
Why Choose This Machine
▶Natively designed for right-side mounting, not modified general-purpose model, with better matching and stability
▶High rigidity & low vibration to significantly improve equipment accuracy and service life
▶Long-life maintenance-free bearings reduce downtime and maintenance costs
Part of Your Smart Factory
This right-side drive motor can be directly connected to the intelligent production scheduling system to realize real-time data feedback and coordinated action with the whole line.
It helps to improve the response speed and control accuracy of the production line, supports unmanned continuous operation, and becomes a key power module for building a highly flexible and efficient smart factory.
FAQ(Frequently Asked Questions)
Q: Can this motor directly replace ordinary modified right-side motors?
A: Yes. Lead Screw Embedded Motion Stage Right Angle Drive is specially designed for right-side use with standard mounting dimensions. It offers better rigidity and vibration performance and can be directly replaced to improve stability.
Q: Will the right-side cable outlet interfere with equipment structure?
A: No. The cable outlet is optimized for right-side installation with a compact layout and no protrusion to avoid interference.
Q: Does it support variable frequency speed control?
A: Yes. It is compatible with mainstream variable frequency drive systems, with wide speed regulation range and stable operation, suitable for speed control requirements in smart production lines.
Hot Tags: lead screw embedded motion stage right angle drive, China lead screw embedded motion stage right angle drive manufacturers, factory
