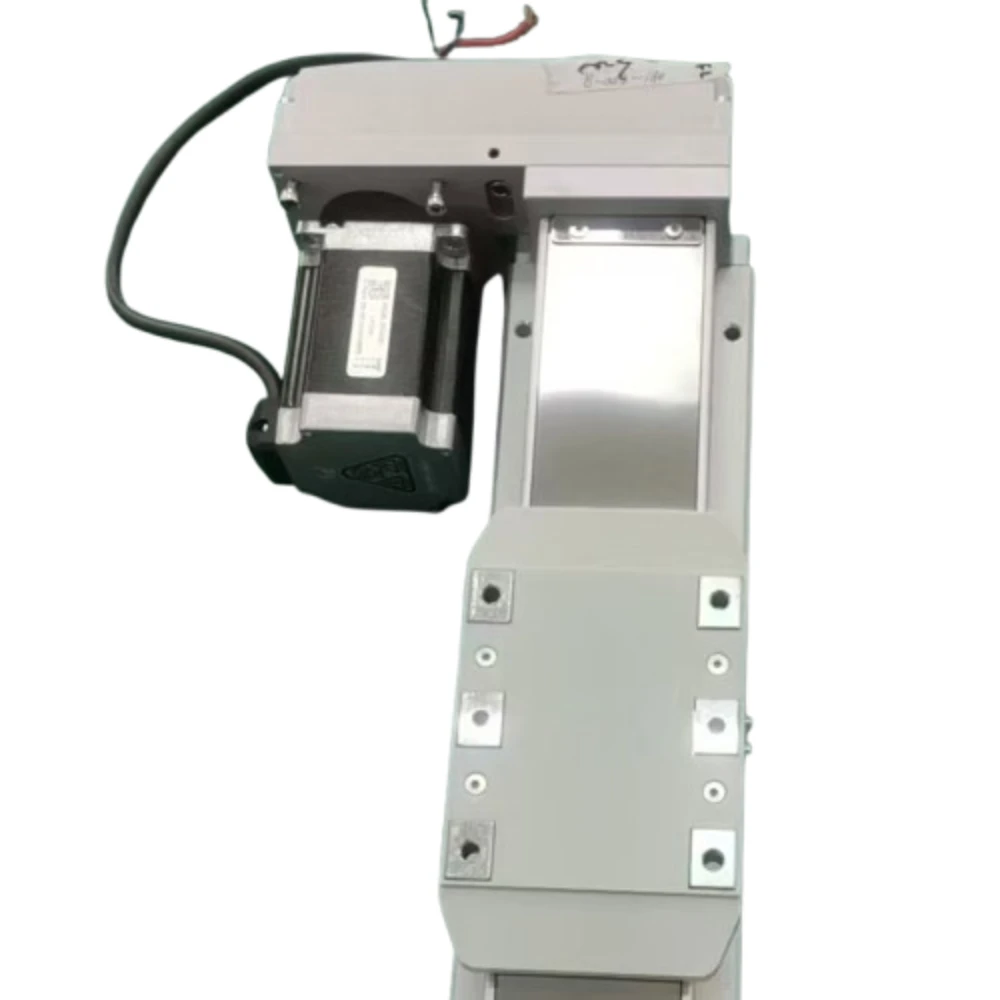

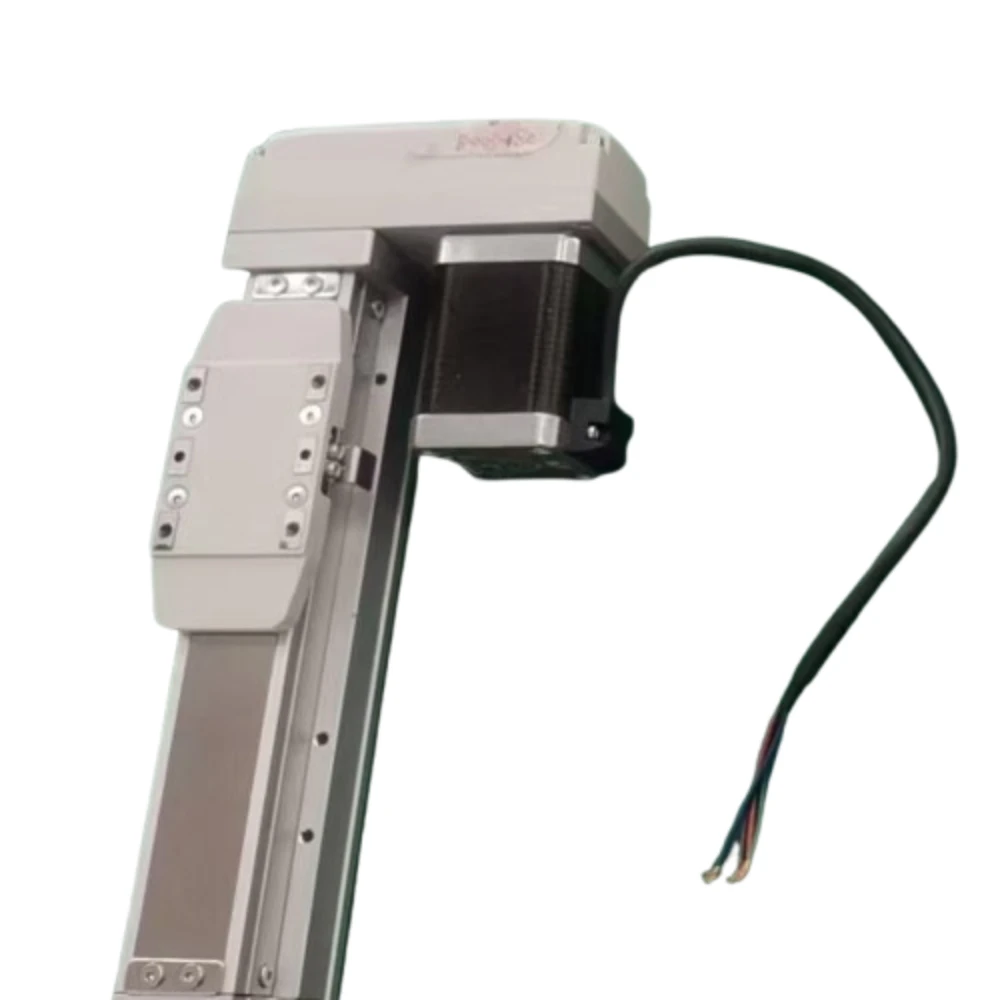

Product Introduction
Key Benefits
▶Integrated Machining of Bottom Datum Surface, Zero Deviation of Micron-Level Coaxiality
▶Sunk Low Center of Gravity Structure, No Shaking and No Vibration During High-Frequency Start-Stop
▶Front Open Type No-Lift Design, Completely Solve the Dilemma of Bottom Maintenance

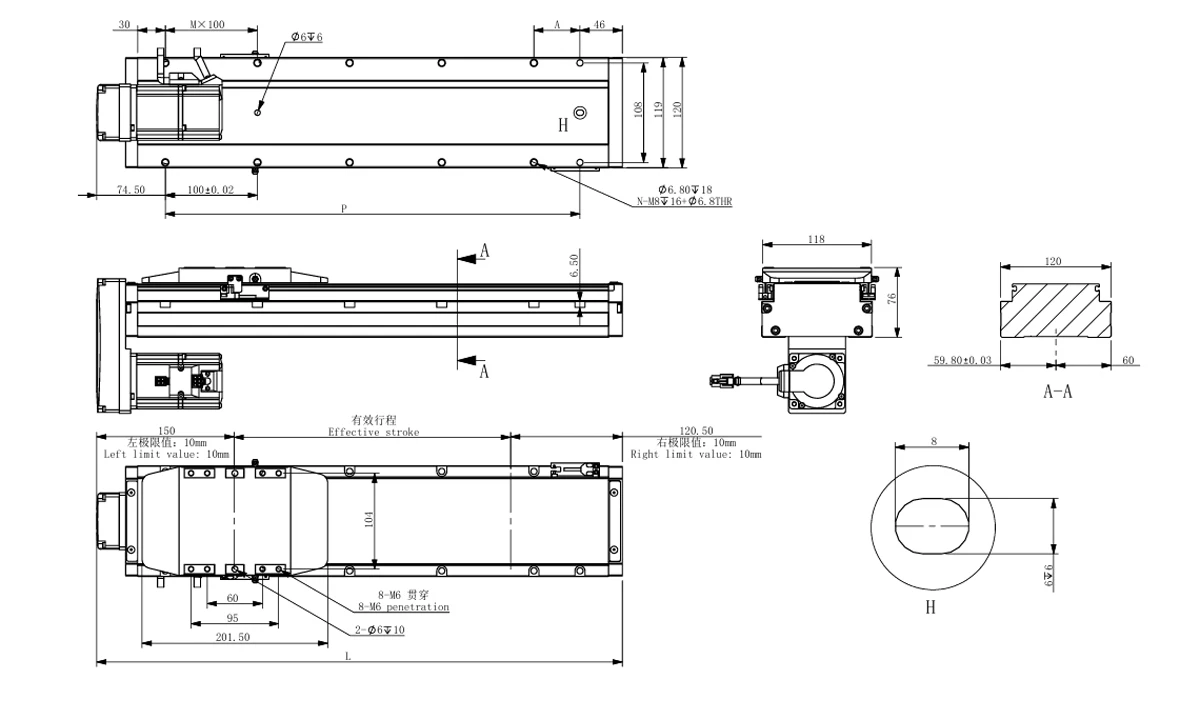

Technical Specifications
|
Lead Screw Embedded Linear Unit Bottom Mounted Drive |
||||||
|
Effective Stroke (S) |
Overall Length (L) |
A |
M |
N |
P |
Weight (KG) |
|
50 |
320.50 |
100 |
1 |
6 |
200 |
5.1 |
|
100 |
370.50 |
50 |
2 |
8 |
250 |
5.5 |
|
150 |
420.50 |
100 |
2 |
8 |
300 |
5.9 |
|
200 |
470.50 |
50 |
3 |
10 |
350 |
6.3 |
|
250 |
520.50 |
100 |
3 |
10 |
400 |
6.7 |
|
300 |
570.50 |
50 |
4 |
12 |
450 |
7.1 |
|
350 |
620.50 |
100 |
4 |
12 |
500 |
7.5 |
|
400 |
670.50 |
50 |
5 |
14 |
550 |
7.9 |
|
450 |
720.50 |
100 |
5 |
14 |
600 |
8.3 |
|
500 |
770.50 |
50 |
6 |
16 |
650 |
8.7 |
|
550 |
820.50 |
100 |
6 |
16 |
700 |
9.1 |
|
600 |
870.50 |
50 |
7 |
18 |
750 |
9.5 |
|
650 |
920.50 |
100 |
7 |
18 |
800 |
9.9 |
|
700 |
970.50 |
50 |
8 |
20 |
850 |
10.3 |
|
750 |
1020.50 |
100 |
8 |
20 |
900 |
10.7 |
|
800 |
1070.50 |
50 |
9 |
22 |
950 |
11.1 |
|
850 |
1120.50 |
100 |
9 |
22 |
1000 |
11.5 |
|
900 |
1170.50 |
50 |
10 |
24 |
1050 |
11.9 |
|
950 |
1220.50 |
100 |
10 |
24 |
1100 |
12.3 |
|
1000 |
1270.50 |
50 |
11 |
26 |
1150 |
12.7 |
|
1050 |
1320.50 |
100 |
11 |
26 |
1200 |
13.1 |
|
1100 |
1370.50 |
50 |
12 |
28 |
1250 |
13.5 |
|
1150 |
1420.50 |
100 |
12 |
28 |
1300 |
13.9 |
|
1200 |
1470.50 |
50 |
13 |
30 |
1350 |
14.3 |
|
1250 |
1520.50 |
100 |
13 |
30 |
1400 |
14.7 |
Applications & Components
▶Chassis traveling drive and lifting mechanism bottom power unit of AGV/AMR automatic guided vehicles
▶Bottom lifting drive and synchronous transmission mechanism of fixed lifting platforms and scissor lifts
Why Choose This Machine
Full Working Condition Factory Verification in Bottom Installation State, Ready to Use Out of the Box Without Debugging
Before leaving the factory, each motor has passed the full working condition simulation test in the bottom installation state, covering all scenarios such as high-frequency start-stop, forward and reverse switching, continuous full-load operation, dust and liquid accumulation environment simulation, to ensure that after the motor is installed on the bottom of the equipment, it can operate stably without additional debugging, greatly shortening the equipment assembly and debugging cycle, and accelerating the equipment launch rhythm.
Part of Your Smart Factory
As the core power base of intelligent equipment, Lead Screw Embedded Linear Unit Bottom Mounted Drive is natively compatible with the modular, unmanned and lean operation logic of modern smart factories. Different from traditional motors that only act as independent power components, it is deeply integrated into the underlying operation system of your smart factory from the unique attributes of bottom-mounted drive, becoming a key link to stabilize equipment operation, optimize maintenance efficiency and support flexible production.
FAQ(Frequently Asked Questions)
Q: Will this bottom-mounted motor interfere with the ground after installation?
A: This motor adopts a sunk embedded installation design. After installation, the main body of the standard model is completely embedded inside the equipment base, and will not protrude from the bottom of the equipment to interfere with the ground. For scenarios with special ground clearance requirements, we can also provide a customized fuselage height optimization scheme to fully adapt to your on-site installation needs.
Q: When installed on the bottom of the equipment base, will there be a risk of fuselage loosening and falling off?
A: The bottom mounting surface of the motor adopts an integrated thickened design, matched with anti-loosening special installation holes and supporting fasteners. After installation, it is fully fitted and locked with the equipment base. At the same time, we provide an exclusive anti-fall safety structure optional scheme. Even under long-term high-frequency vibration working conditions, there will be no risk of fuselage loosening and falling off, with full safety redundancy.
Q: Can the bottom mounting surface of this motor adapt to the non-planar equipment base?
A: The standard model is suitable for the equipment installation datum surface with flatness ≤0.05mm. For special equipment bases with non-planar and stepped surfaces, we can provide a customized mounting surface adaptation scheme to ensure that the motor datum surface is fully fitted after installation, ensuring transmission accuracy and operation stability.
