Product Introduction

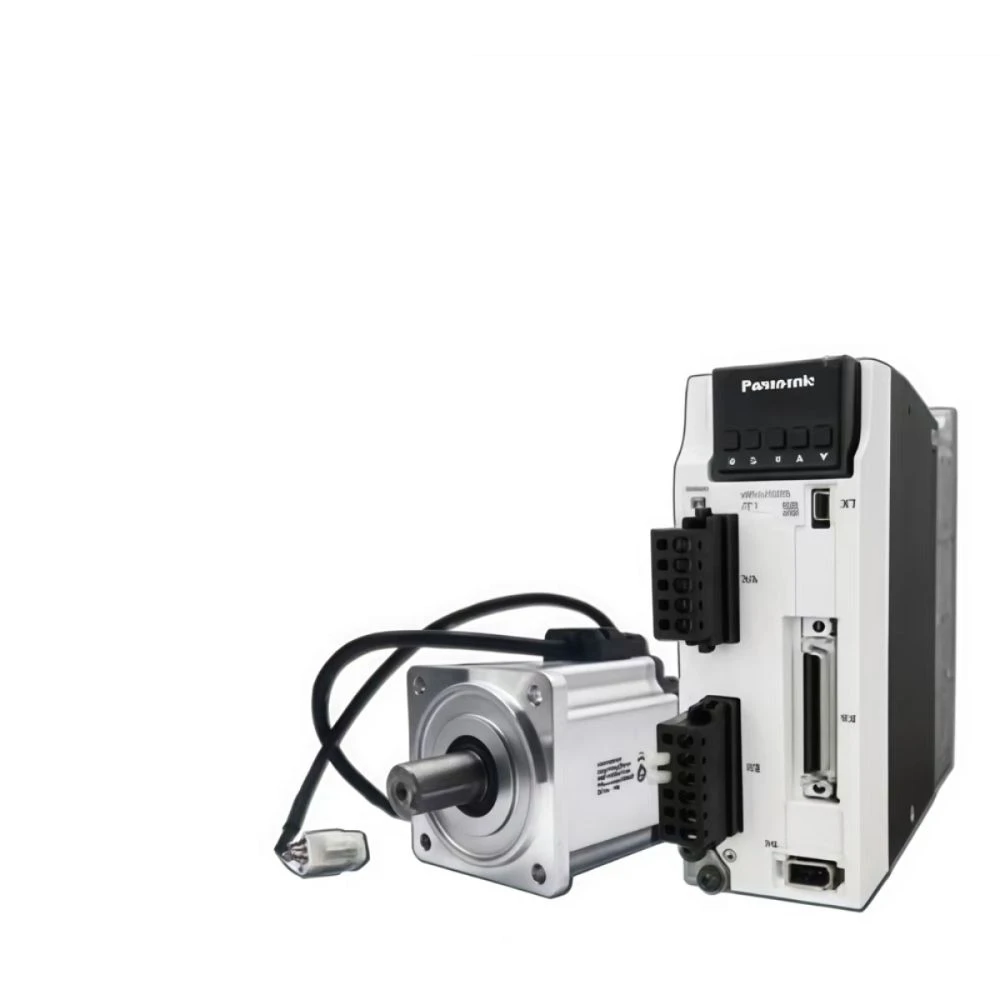

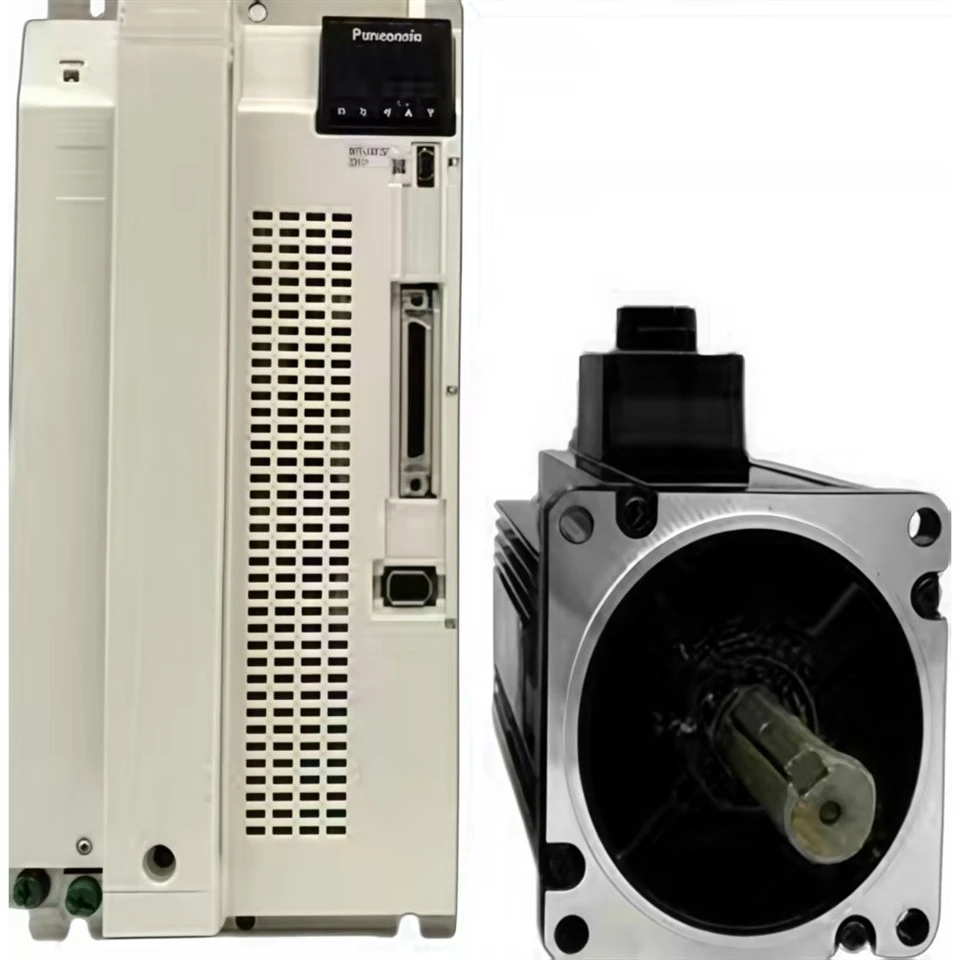

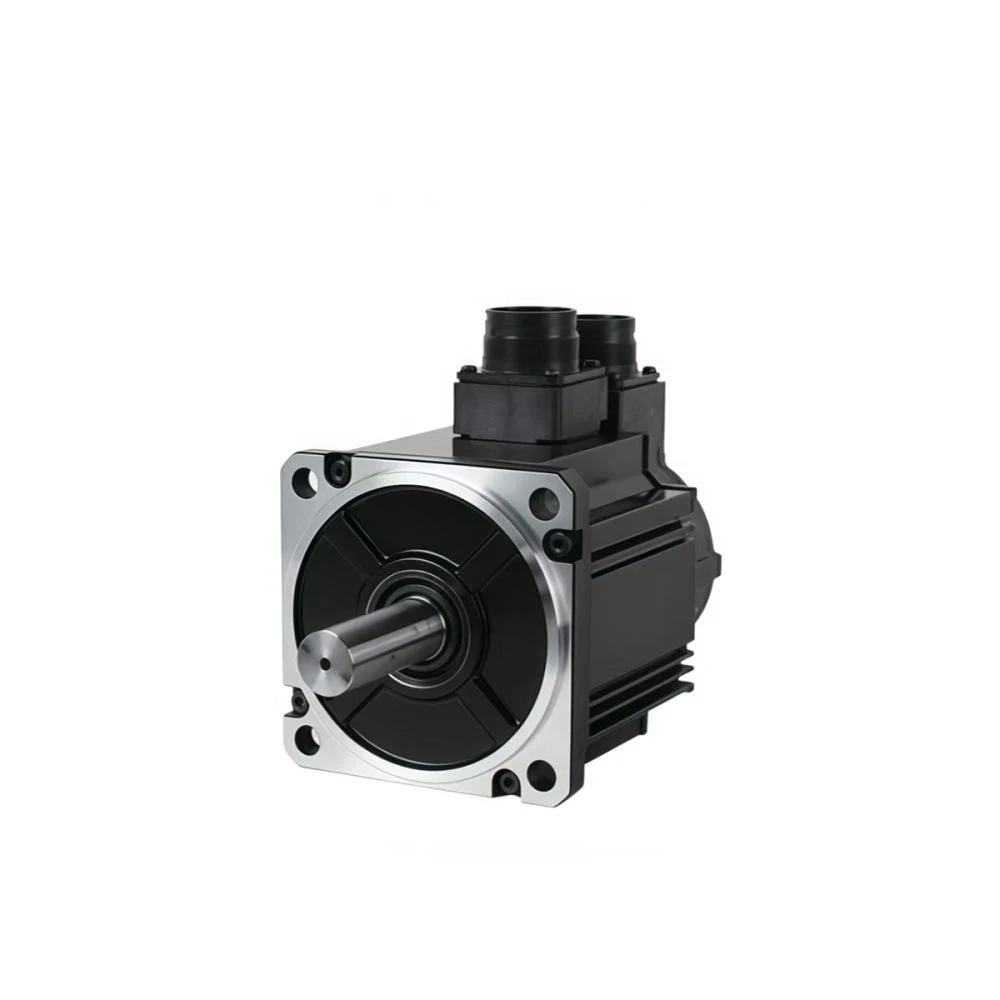

Our Panasonic MSMF152L1G6M servo motor adopts MINAS A6 low inertia design, delivering stable power and high positioning accuracy for industrial motion control. Featuring compact structure and fast response, it fits various automated production lines. As an authorized INOVANCE distributor, we provide professional automation products and solutions.
Key Benefits
▶ Stable operation effectively reduces running errors
▶Fast dynamic response improves overall production efficiency
▶Optimized structure lowers power loss and heat generation
Technical Specifications
|
Parameter Item |
Core Details |
|
Model |
Panasonic MSMF152L1G6M Servo Motor |
|
Series |
MSMF MINAS A6, Low Inertia |
|
Rated Power |
1500W |
|
Working Voltage |
200V |
|
Rated Current |
8.2A |
|
Rated Speed |
3000r/min |
|
Max Speed |
5000r/min |
|
Rated Torque |
4.77N·m |
|
Peak Torque |
14.3N·m |
|
Rotor Inertia |
3.10×10⁻⁴ kg·m² |
|
Max Load Inertia Ratio |
15 times |
|
Encoder |
23-bit Absolute/Incremental, Resolution: 8388608 |
|
Flange Size |
100mm |
|
Shaft Feature |
With keyway & oil seal, No holding brake |
|
Protection Class |
IP67 |
|
Weight |
4.6kg |
|
Wiring Type |
Connector type (JL10 lockable) |
Applications & Components
▶CNC machine tools
▶Automated packaging machinery
▶Industrial manipulators
Why Choose This Machine
Panasonic MSMF152L1G6M servo motor runs steadily under variable loads to lower defect rates. Fully compatible with MINAS A6 servo drives for easy installation and commissioning. Official after-sales service ensures long-term reliable operation.
Part of Your Smart Factory
It supports real-time data monitoring to assist equipment management, enabling intelligent scheduling and lean production for smart manufacturing.
FAQ(Frequently Asked Questions)
Q: Which servo drive does it match?
A: Compatible with Panasonic MINAS A6 series drives.
Q: Is continuous high-speed operation available?
A: Continuous operation shall be within rated speed; maximum speed is for temporary use only.
Q: What routine maintenance is required?
A: Regularly inspect wiring tightness and heat dissipation status.
