Product Introduction

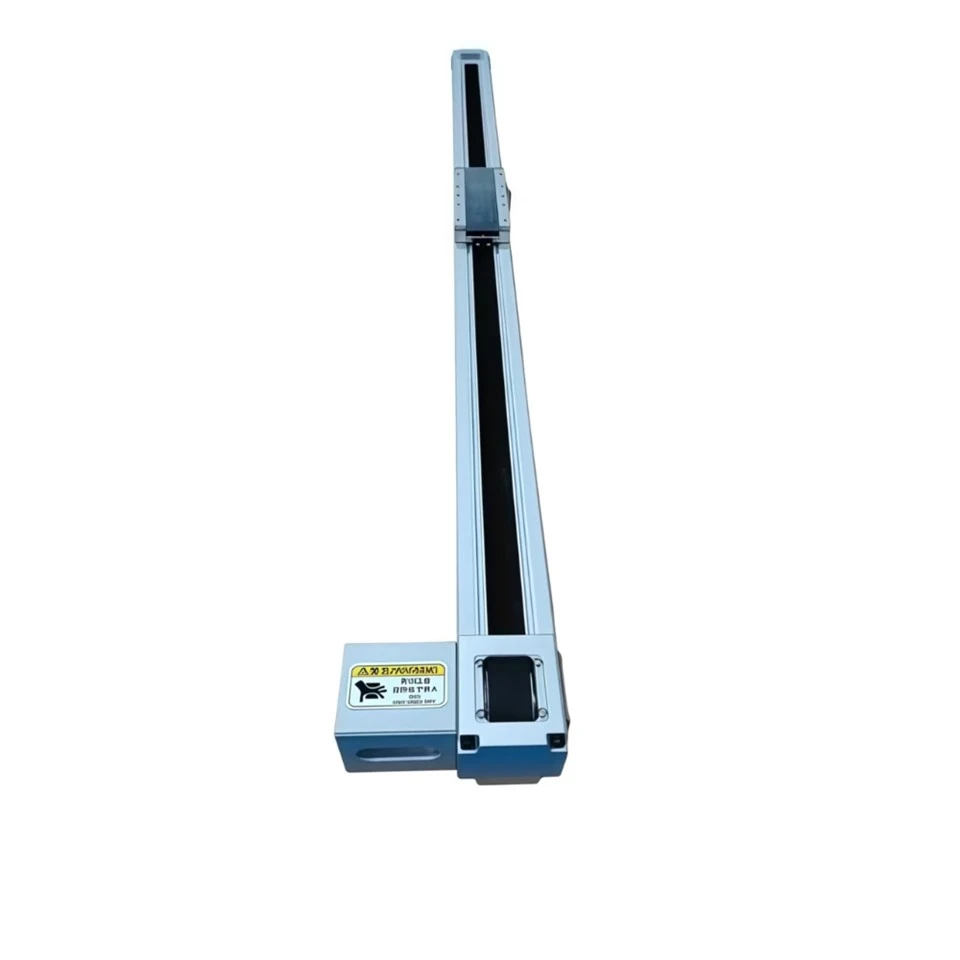

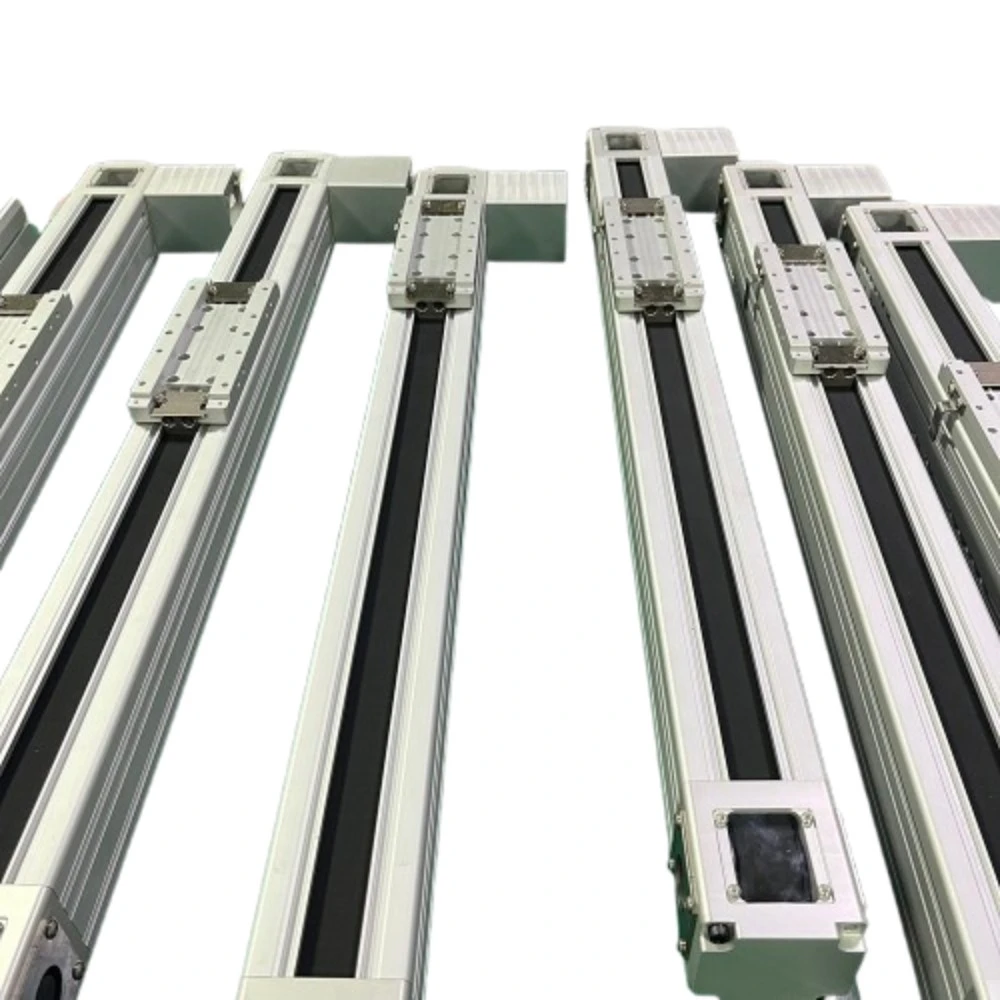

The Integrated Stepper Motor Timing Belt Linear Actuator is a left-down flange belt-driven module, purpose-built for automation equipment with tight horizontal layouts and limited left-side mounting space. As the symmetric counterpart of our standard model, it mounts the motor vertically below the module, eliminating lateral protrusions and saving over 30% left-side installation space, solving motor interference issues with adjacent components.
Key Benefits
▶ Universal Drop-In Replacement Compatibility
▶ Zero-Interference Multi-Column Parallel Installation
▶ Left-Side Exclusive Downward Flange Space-Saving Structure
Technical Specifications
|
Module Model |
Integrated Stepper Motor Timing Belt Linear Actuator |
||
|
Module Type |
Belt-driven linear module, flange downward motor drive, left-side |
||
|
Repeat Positioning Accuracy |
±0.08 mm |
||
|
Lead |
150 mm |
||
|
Horizontal Load |
85 kg |
||
|
Vertical Load |
Not supported |
||
|
Max Linear Speed |
7500 mm/s |
||
|
Compatible AC Motors |
86 / 750W / 1KW / 1.5KW |
||
|
Belt Model |
5M-40 |
||
|
Guide Rail Brand/Model |
EGH25CA |
||
|
Timing Pulley Model |
5M-30-42 |
||
|
External Sensor Model |
SX672NPN |
||
|
Internal Sensor Model |
Customizable |
||
|
Effective Stroke (S) (mm) |
Total Length (L) (mm) |
Number of Sliders (N) |
Slider Height (H) (mm) |
|
100 |
570 |
1 |
50 |
|
150 |
620 |
1 |
100 |
|
200 |
670 |
1 |
150 |
|
250 |
720 |
1 |
200 |
|
300 |
770 |
2 |
50 |
|
350 |
820 |
2 |
100 |
|
400 |
870 |
2 |
150 |
|
450 |
920 |
2 |
200 |
|
500 |
970 |
3 |
50 |
|
550 |
1020 |
3 |
100 |
|
600 |
1070 |
3 |
150 |
|
650 |
1120 |
3 |
200 |
|
700 |
1170 |
4 |
50 |
|
750 |
1220 |
4 |
100 |
|
800 |
1270 |
4 |
150 |
|
850 |
1320 |
4 |
200 |
|
900 |
1370 |
5 |
50 |
|
950 |
1420 |
5 |
100 |
|
1000 |
1470 |
5 |
150 |
Applications & Components
▶ Symmetric Dual-Axis Gantry Motion Systems
▶ Multi-Column Parallel Sorting Production Lines
▶ Enclosed Clean Room Automation Equipment
Why Choose This Machine
The Integrated Stepper Motor Timing Belt Linear Actuator is a purpose-built left-side downward flange linear module, not a modified version of traditional side-mounted models. It solves the core pain points of left-side layout interference and dual-axis asymmetric matching, with 1:1 symmetric performance with the right-side model, CE certification, drop-in replacement compatibility, cost-effective pricing, fast in-stock delivery and flexible customization support.
Part of Your Smart Factory
The All-in-One Stepper Timing Belt Linear Drive Module left-side downward flange linear module seamlessly integrates into your smart factory's symmetric dual-axis automation systems, multi-station parallel production lines and digital clean manufacturing equipment, delivering stable, space-saving and highly synchronized linear motion for high-efficiency intelligent manufacturing.
FAQ(Frequently Asked Questions)
Q: Do you provide installation guidance and supporting technical documents for the Compact Stepper Motor Timing Belt Linear Motion Module?
A: Yes. We provide free complete installation manuals, 2D/3D drawings, wiring diagrams and step-by-step installation videos. Our technical team also offers 7*24 online guidance to help you complete installation and debugging quickly, even for first-time users.
Q: Does this motor support customization?
A: Customization of power, speed, voltage and mounting dimensions is available. Please contact customer service.
Q: Which control systems is the Integrated Stepper Synchronous Belt Linear Actuator compatible with?
A: It is fully compatible with mainstream PLC control systems including Siemens, Mitsubishi, Delta, Omron and Panasonic, as well as all mainstream 86-type servo/stepper drives. No secondary development is required, and it can be directly connected to your existing control system.
