Product Introduction
The FL Type Timing Belt Driven Linear Slide Module is a purpose-built rear flange-mounted belt-driven linear module, designed for automation equipment requiring motor installation at the end of the module body rather than the side. Unlike traditional side-mounted modules, its exclusive FL (Flange Rear) design places the motor in-line at the rear end, eliminating side protrusions entirely. This end-mount configuration allows for ultra-compact horizontal integration and seamless installation in equipment with tight side clearances, such as enclosed work cells and narrow production lines.
Key Benefits
▶ Flexible Multi-Axis Layout Compatibility
▶ Proven High-Performance Core

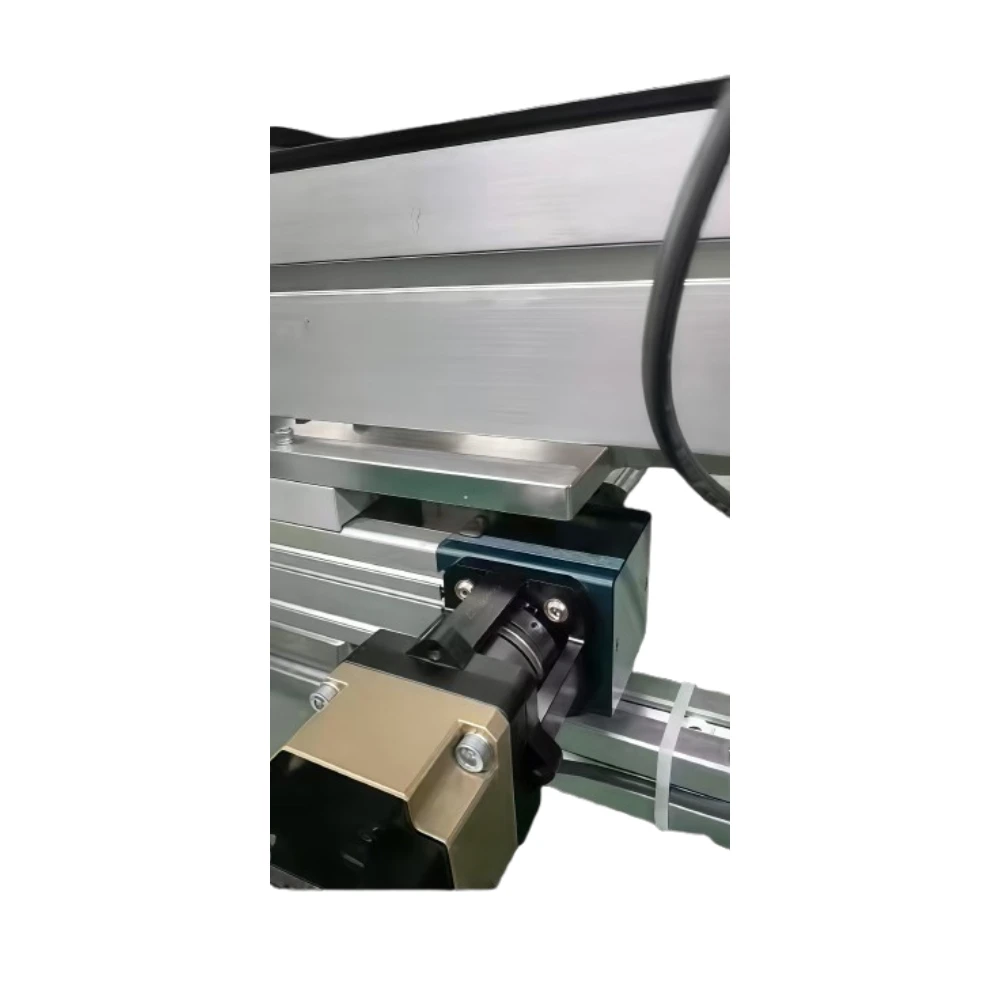

▶ Exclusive FL Rear Flange End-Mount Design
Technical Specifications
|
Module Model |
FL Type Timing Belt Driven Linear Slide Module |
||
|
Module Type |
Belt-driven linear module, flange rear-mounted motor |
||
|
Repeat Positioning Accuracy |
±0.08 mm |
||
|
Lead |
150 mm |
||
|
Horizontal Load |
85 kg |
||
|
Vertical Load |
Not supported |
||
|
Max Linear Speed |
7500 mm/s |
||
|
Compatible AC Motors |
86 / 750W / 1KW / 1.5KW |
||
|
Belt Model |
5M-40 |
||
|
Guide Rail Brand/Model |
EGH25CA |
||
|
Timing Pulley Model |
5M-30-42 |
||
|
External Sensor Model |
SX672NPN |
||
|
Internal Sensor Model |
Customizable |
||
|

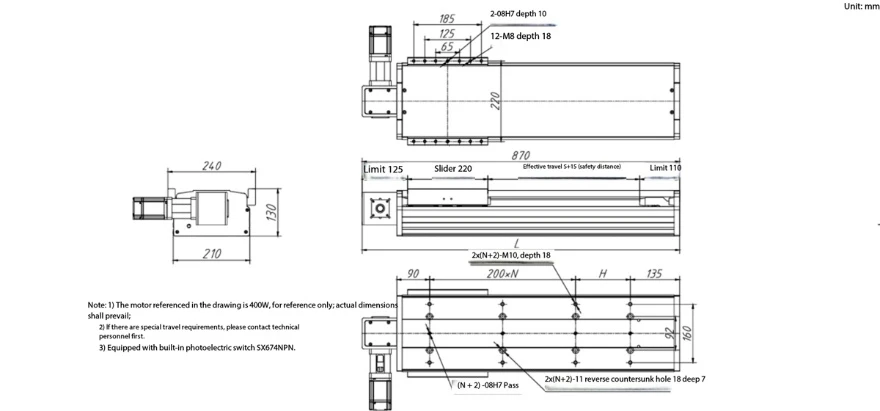

Effective Stroke (S) (mm) |
Total Length (L) (mm) |
Number of Sliders (N) |
Slider Height (H) (mm) |
|
100 |
570 |
1 |
50 |
|
150 |
620 |
1 |
100 |
|
200 |
670 |
1 |
150 |
|
250 |
720 |
1 |
200 |
|
300 |
770 |
2 |
50 |
|
350 |
820 |
2 |
100 |
|
400 |
870 |
2 |
150 |
|
450 |
920 |
2 |
200 |
|
500 |
970 |
3 |
50 |
|
550 |
1020 |
3 |
100 |
|
600 |
1070 |
3 |
150 |
|
650 |
1120 |
3 |
200 |
|
700 |
1170 |
4 |
50 |
|
750 |
1220 |
4 |
100 |
|
800 |
1270 |
4 |
150 |
|
850 |
1320 |
4 |
200 |
|
900 |
1370 |
5 |
50 |
|
950 |
1420 |
5 |
100 |
|
1000 |
1470 |
5 |
150 |
Applications & Components
▶ Narrow Production Lines & Enclosed Work Cells
▶ Cartesian Robots & Multi-Axis Gantry Systems
▶ Automated Inspection & Testing Equipment
Why Choose This Machine
The FL Type Timing Belt Driven Linear Slide Module is a purpose-built rear flange-mounted linear module, solving the core pain point of side clearance limitations that traditional modules cannot address. It offers zero side protrusions, a low-profile form factor, proven high performance, and flexible compatibility with multi-axis systems. With CE certification, competitive pricing, fast in-stock delivery and drop-in replacement support, it is the ideal choice for compact automation equipment.
Part of Your Smart Factory
The FL Series Toothed Belt Linear Slide Unit rear flange-mounted linear module seamlessly integrates into your smart factory's narrow production lines, multi-axis gantry systems and enclosed clean manufacturing equipment, delivering stable, compact and space-saving linear motion for high-density intelligent manufacturing.
FAQ(Frequently Asked Questions)
Q：Can the motor be installed on either end of the module?
A：No, the standard FL model is designed for rear end motor mounting only. If you need front end mounting, we can provide customized solutions.
Q：Does the rear-mount design affect the stroke length?
A：No. The effective stroke range remains 100-1000mm, identical to other SK210B series models. The motor is mounted in-line at the rear, so it does not occupy any stroke space.
Q：Can this module be paired with other SK210B series models for multi-axis systems?
A：Yes. It shares the same mounting hole positions and performance parameters with the SK210B series, making it perfect for pairing with side-mounted models in multi-axis Cartesian robots.
