Product Introduction

Right-Side Flange Mounted Belt Driven Module can be considered a leading identification solution that is ideal for use in contemporary industrial applications because it is specifically intended for right mounting locations in different machines and automation systems. Being a key element of the SKK65B family, this right tag plate is produced from tough composite materials and is thoroughly checked for stable operation.

Key Benefits

▶ Bottom Right Folding Design, CE Safety Certified

▶ No Bulge at Top & Front, Facilitating Straight-line Parking

▶ Very Stiff Construction to Ensure Long Stroke Reliability

Technical Specifications

Right-Side Flange Mounted Belt Driven Module
Stroke	L	KG
800	1150	9.55
850	1200	9.80
900	1250	10.05
950	1300	10.30
1000	1350	10.55
1050	1400	10.80
1100	1450	11.05
1150	1500	11.30
1200	1550	11.55
1250	1600	11.80
1300	1650	12.05
1350	1700	12.30
1400	1750	12.55
1450	1800	12.80
1500	1850	13.05
1550	1900	13.30
1600	1950	13.55
1650	2000	13.80
1700	2050	14.05
1750	2100	14.30
1800	2150	14.55
1850	2200	14.80
1900	2250	15.05
1950	2300	15.30

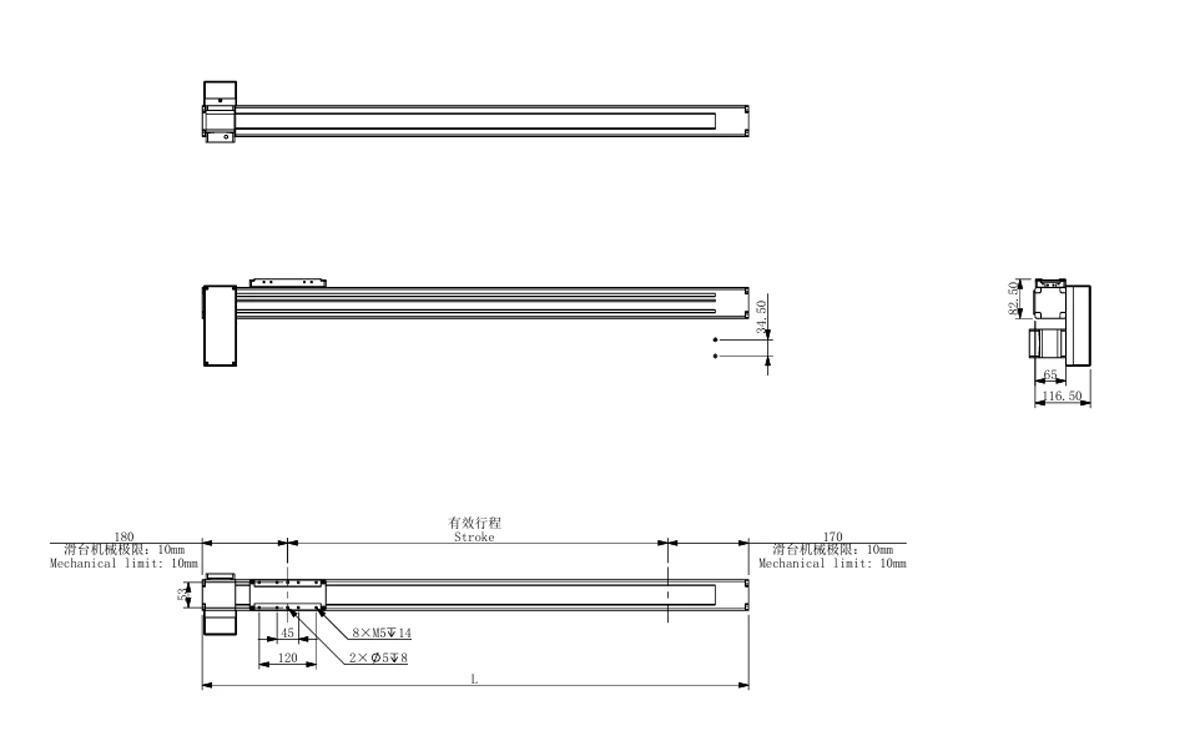

product-1200-741

Applications & Components

▶Laser processing machinery: Laser cutting machinery, Laser welding machinery, Laser marking machinery

▶Energy-saving machinery industry: Battery sorting machinery, Solar power module machinery

▶Assembly line automation: Remote transport machinery, Loading & unloading machinery

Why Choose This Machine

Right-Flange Mounted Belt-Driven Linear Motion Module is unique in that it has its own bottom right folding mechanism that is particularly well-designed for machinery that needs to be operated from the left side, while at the same time meeting the standards required by European Community Certification (EU CE). Through the installation of the motor on the bottom right, it fully prevents obstruction of the operational area.

Part of Your Smart Factory

Thanks to the compactness of the lower right folding device, the Right-Side Flange Mounted Belt Driven Module model provides high stiffness, high accuracy, and suitability for use on intelligent production lines, MES systems, and flexible manufacturing facilities. This model is equipped with a bottom-mounted motor system, which not only saves space during installation but also avoids any interference with the operational area and safety doors.

FAQ(Frequently Asked Questions)

Q: What is the biggest difference between Side-Flange Belt-Actuated Linear Drive Assembly and standard rear/front folding modules?

A: This model adopts an exclusive motor bottom right folding structure. The motor is placed on the bottom right side of the module, different from conventional layouts such as top, rear and front folding. It does not occupy top space or block rear and front stations, especially suitable for equipment with left-side operation and bottom wiring.

Q: Is such a folding design at the bottom right of the machine in compliance with the EU CE safety certification standards?

A: Yes. The motor is placed at the bottom right position and will not interfere with the left part which acts as the operating side. This design satisfies the requirements of EU CE regarding safety and operational space.

Q: Are there any protruding parts on the top and front of the module? Can it be directly docked with the production line?

A: The top and front of the whole machine are flat and closed without protruding motors or connectors. It can be directly docked with loading/unloading mechanisms, processing stations and production line connection tables, with strong space compatibility and no interference.
