Product Introduction
The Right Angle Embedded Belt Drive Brake Linear Guide Module is a high-precision right-mounted belt-driven linear module, tailor-made for industrial automation, fully interchangeable with left-mounted versions, delivering stable long-term operation for modern smart manufacturing.
Key Benefits
▶ Ultra-high precision: Repeat positioning accuracy up to ±0.08mm, meeting high-precision process requirements
▶ High-speed stable operation: Max speed up to 5000mm/s, low vibration and low noise design
▶ Reliable load capacity: 15KG rated horizontal load, covering most light and medium load automation scenarios
Technical Specifications
|
Module Model |
Right Angle Embedded Belt Drive Brake Linear Guide Module |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.08 |
||
|
Lead |
100 |
||
|
Horizontal Load |
15 KG |
||
|
Vertical Load |
N/A |
||
|
Max Speed |
5000 mm/s |
||
|
AC Motor |
100W/200W/400W |
||
|
Linear Guide |
EGW15CA |
||
|
Timing Belt |
5M-15 |
||
|
Timing Pulley |
5M-20-17 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
N/A |
||
|

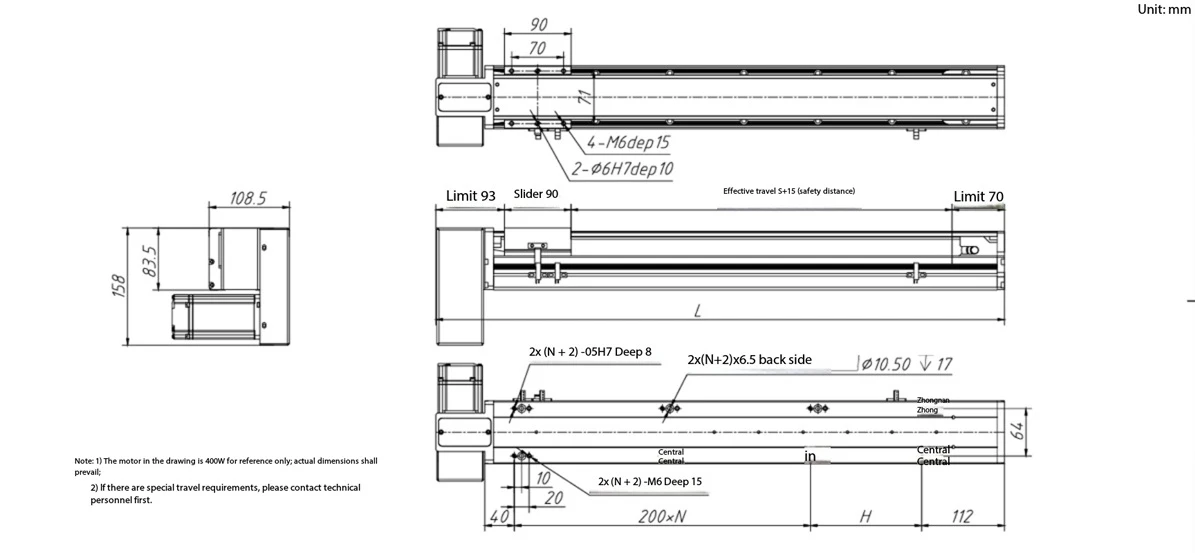

Effective Stroke(S) |
L |
N |
H |
|
100 |
368 |
0 |
150 |
|
150 |
418 |
0 |
200 |
|
200 |
468 |
1 |
50 |
|
250 |
518 |
1 |
100 |
|
300 |
568 |
1 |
150 |
|
350 |
618 |
1 |
200 |
|
400 |
668 |
2 |
50 |
|
450 |
718 |
2 |
100 |
|
500 |
768 |
2 |
150 |
|
550 |
818 |
2 |
200 |
|
600 |
868 |
3 |
50 |
|
650 |
918 |
3 |
100 |
|
700 |
968 |
3 |
150 |
|
750 |
1018 |
3 |
200 |
|
800 |
1068 |
4 |
50 |
|
850 |
1118 |
4 |
100 |
|
900 |
1168 |
4 |
150 |
|
950 |
1218 |
4 |
200 |
|
1000 |
1268 |
5 |
50 |

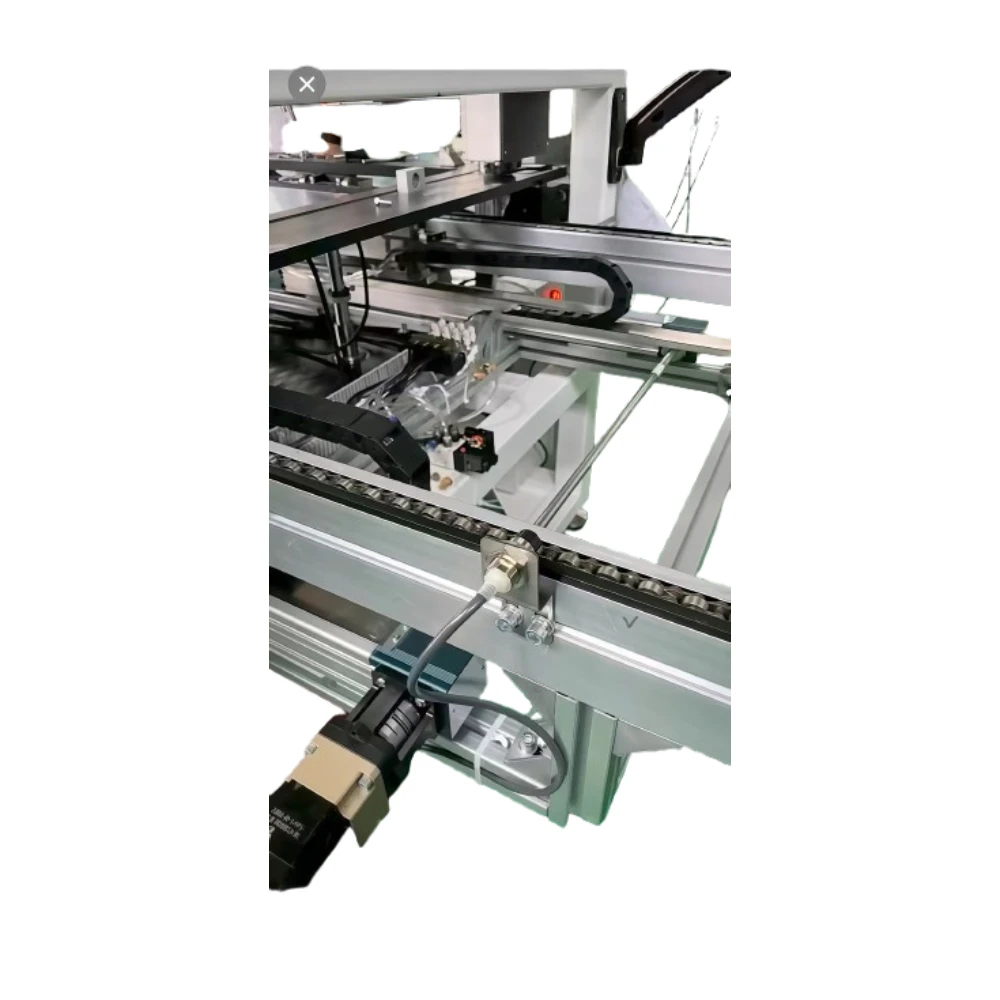

Applications & Components
▶ 3C & Semiconductor: For high-precision component assembly, lithium battery processing and semiconductor packaging.
▶ Packaging Automation: For food, pharmaceutical and daily chemical packaging, sorting and filling processes.
▶ Precision Equipment: Matches dispensing, spraying, laser processing and visual inspection systems.
Why Choose This Machine
We have more than 10 years of R&D and production experience in linear motion products, with strict quality control for every Right Angle Embedded Belt Drive Brake Linear Guide Module, all products pass full performance testing before delivery. We provide professional customization services and full technical support.
Part of Your Smart Factory
As a core execution component of intelligent manufacturing, the Right-Angle Flange-Mounted Belt-Actuated Linear Guide with Holding Brake is fully compatible with mainstream PLC and industrial control systems including Siemens, Mitsubishi and Delta, supports multi-axis linkage networking, and can be seamlessly integrated into your intelligent production line.
FAQ(Frequently Asked Questions)
Q: Is the Right-Angle Integrated Belt-Driven Brake Linear Guide?
A: Yes, the Right-Angle Integrated Belt Drive Linear Module with Brake has exactly the same performance parameters, installation dimensions and hole positions as the left-mounted model, only the motor installation direction is different, which can be directly interchanged without modifying the equipment structure.
Q: Does the Right-Angle Belt-Driven Linear Guide with Integrated Brake support customized stroke beyond the standard range?
A: Yes, we support non-standard stroke customization for the Right-Angle Embedded Belt Linear Guide with Holding Brake, as well as special modifications for motor installation, sensor configuration and other details according to your actual application needs.
Q: Will technical documents be provided when purchasing the Right-Angle Belt-Actuated Linear Rail with Embedded Brake?
A: Yes. We will provide complete supporting technical documents for each Right-Angle Compact Belt Drive Linear Stage with Brake, including 2D/3D drawings, installation manuals, parameter tables and selection guides, to help you complete equipment design, installation and debugging quickly.
