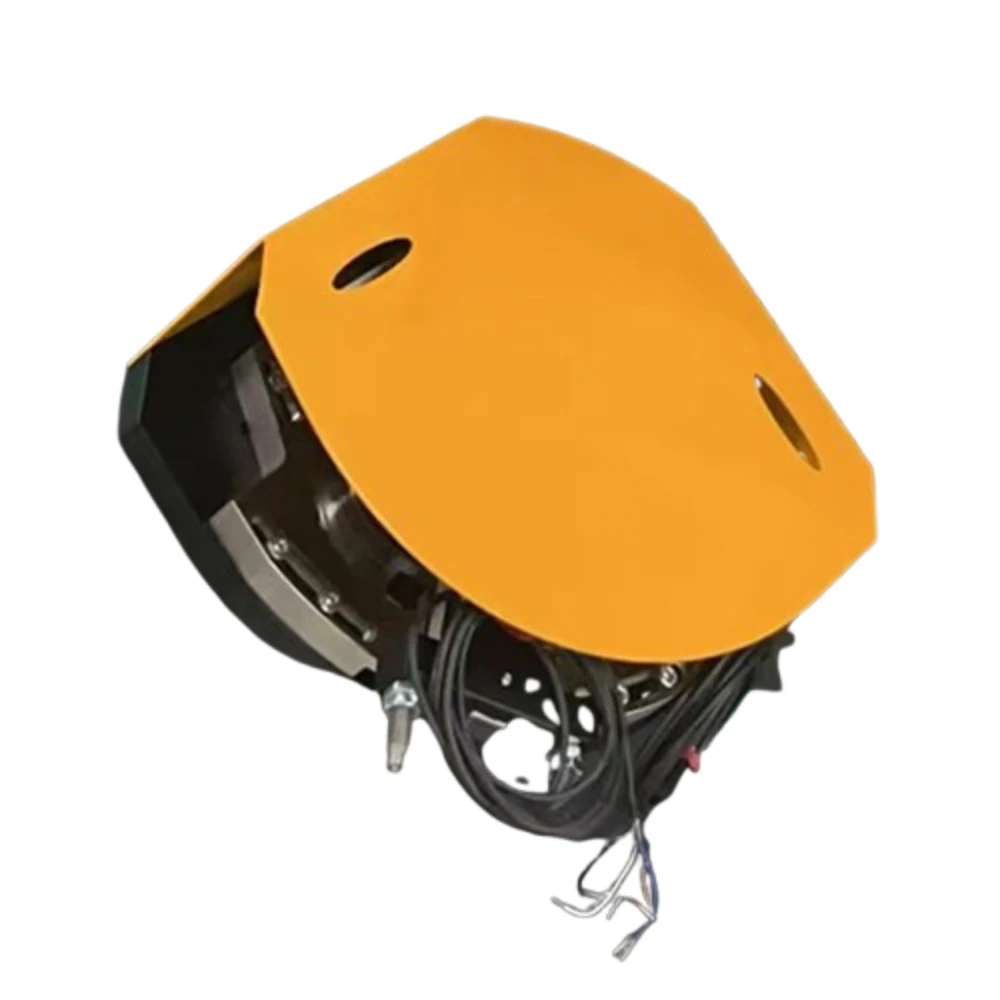

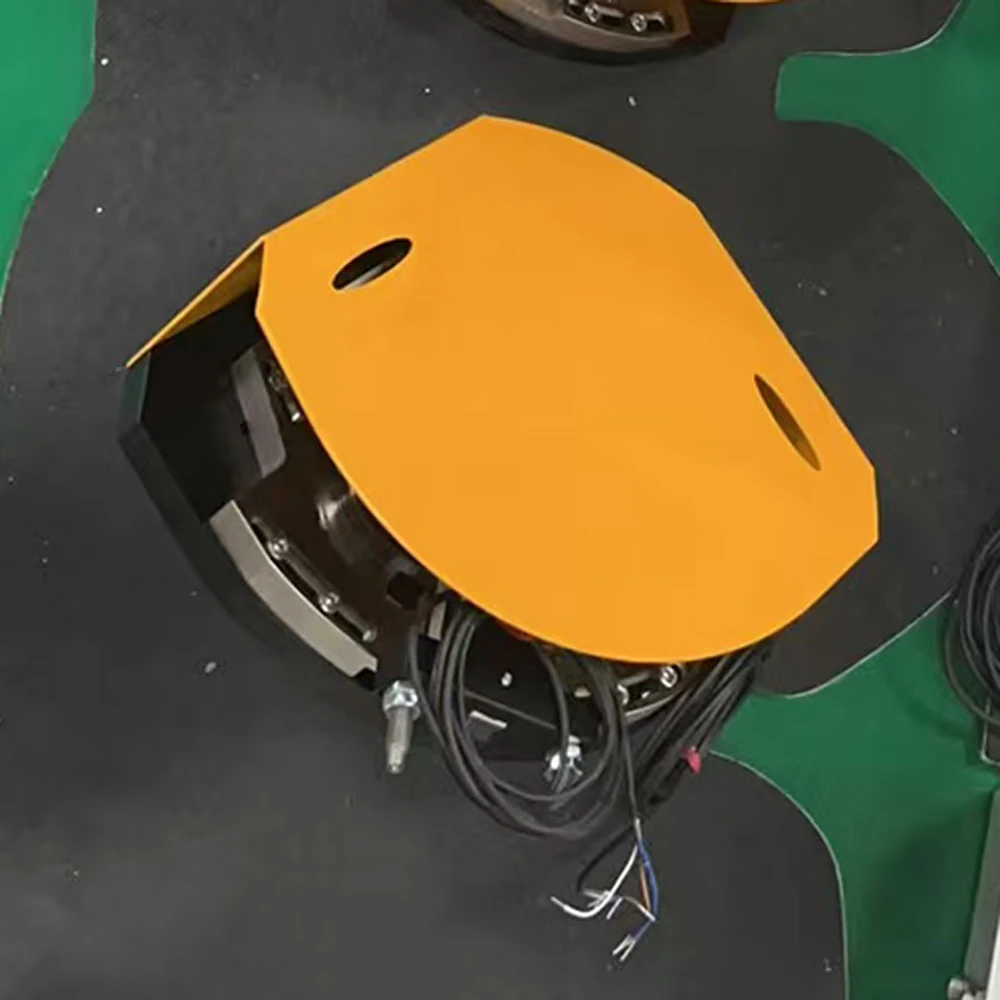

Product Introduction

PPU Pick and Place Unit adopts a pure cam structure and can achieve vertical feed, flipping, horizontal feed, and spoon action processes through controlling the cam trajectory curve. It uses servo motors or stepper motors as power sources, enabling high-speed and accurate movements with a minimum cycle time of 0.5s and positioning accuracy of ±0.02 mm.

Product features

▶The pure cam structure drive method ensures high-speed, stable, and precise operation, which can replace traditional flipping robotic arms;

▶Compact structure, easy installation, small space occupation, and attractive appearance;

▶Easy and efficient to install;

▶It uses electric drive and offers high cost-performance ratio.

Application scenarios

▶As shown in the figure, high-speed operation on the disc indexing system;

▶Feeding and discharging materials;

▶High-speed feeding or picking of materials on the feeder tray;

▶Integrated with other devices (such as robotic arms) for high-speed transfer and loading operations.

Simple explanation

1.Simple explanation.

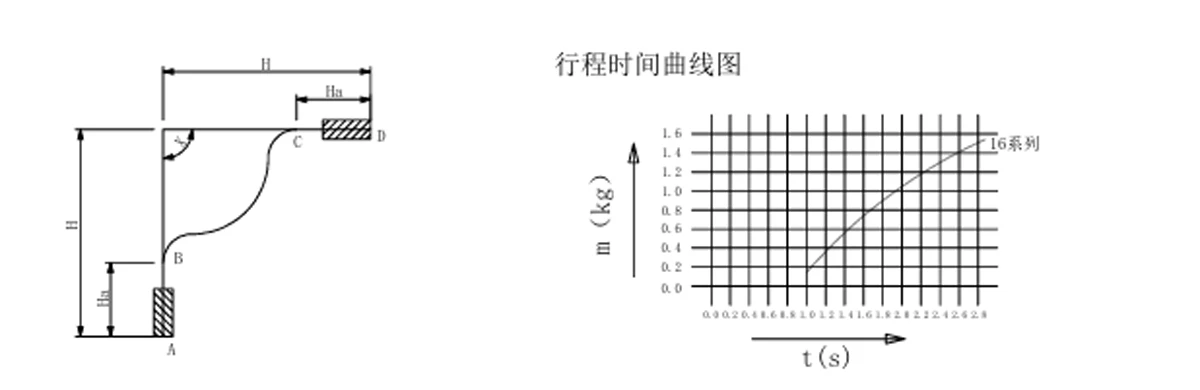

The robotic arm has four work position points: A: pick-up point, B: rotation start point (end of pick-up ascent), C: rotation end point (start of material placement translation), and D: material placement point.

2.The robotic arm achieves high-speed operation under the control of its power source.

Material collection at points A, B, C, and D.

The rotation and feeding process has been completed; the material has been released.

The sequence then proceeds from point D to point C, then to point B, and finally to point A.

Click to return to the material retrieval position, and you can load more material.

The movements are highly condensed, significantly reducing their duration.

Time reduces the complexity of control.

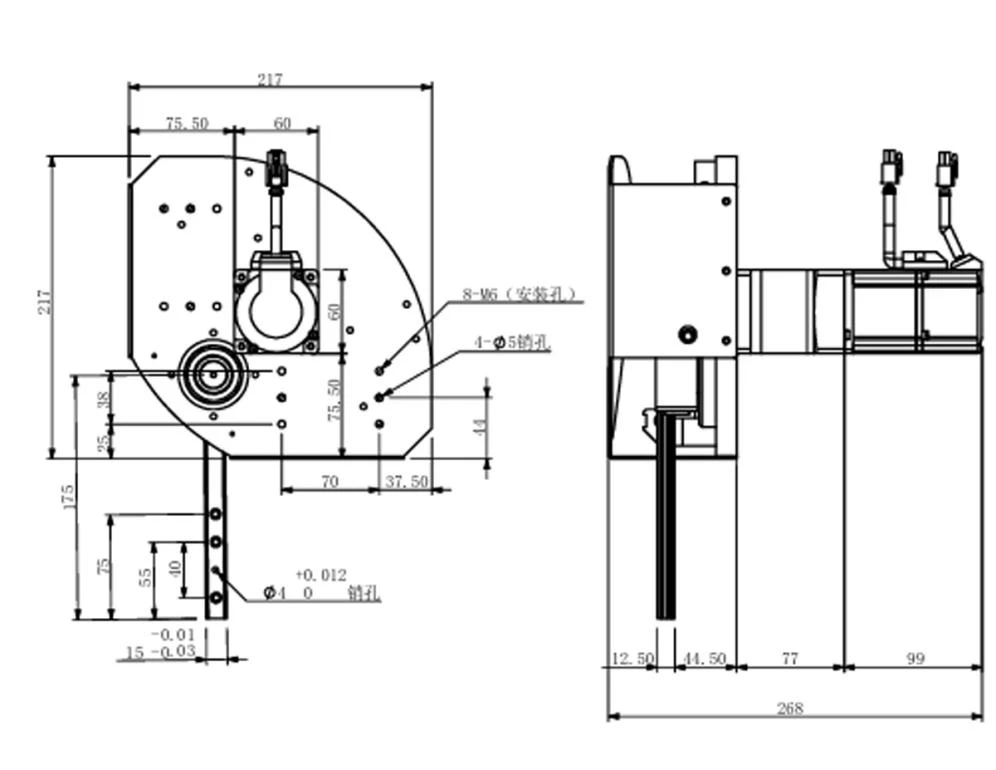

Technical Specifications

Model	PPU Pick and Place Unit
Type	90° Transfer PPU
Transfer Direction	XZ Axis
Drive Type	Electric
Size	16
Mounting Position	L (Left) / R (Right)
H Max Linear Stroke	175 mm
Ha Working Stroke	20-35 mm
Swing Angle A°	80~100°
End Position Repeatability	±0.02 mm
Minimum Cycle Time(s)	0.5
Motor Power(W)	400
Max Load(kg)	1.5
