Product Features

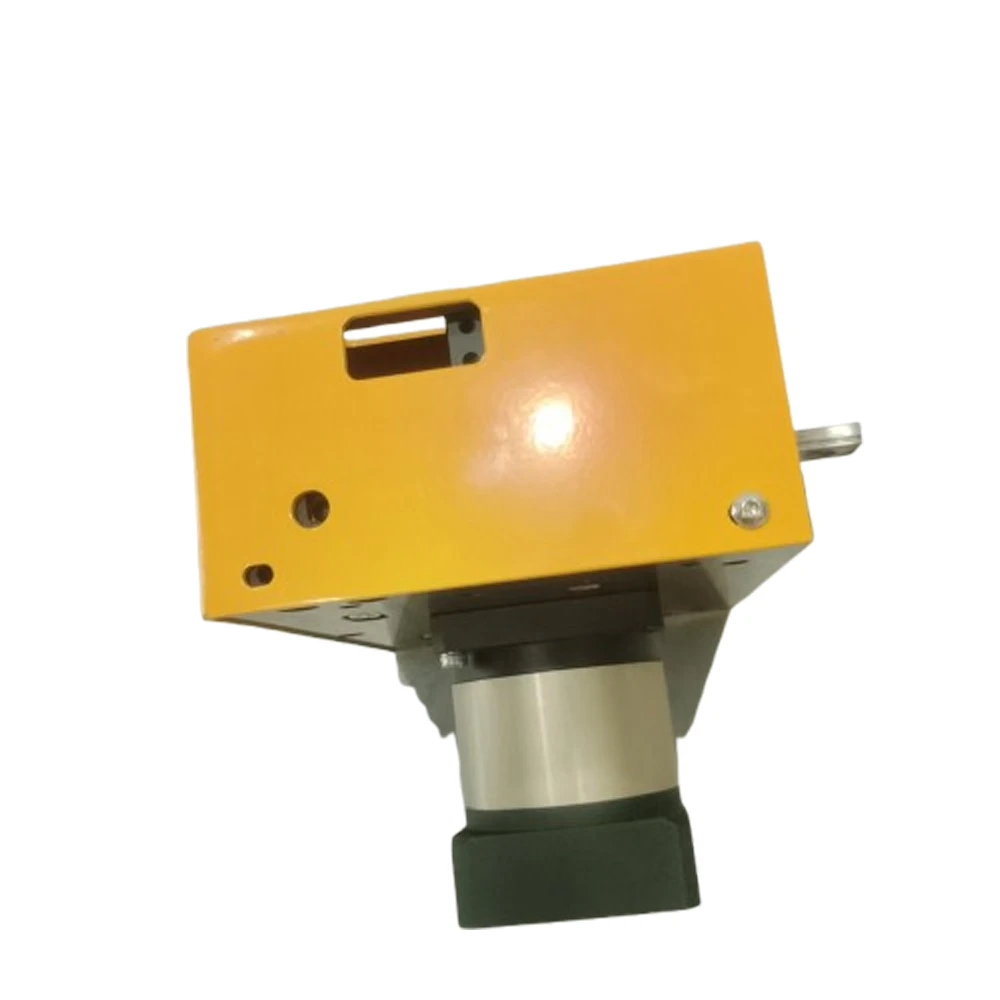

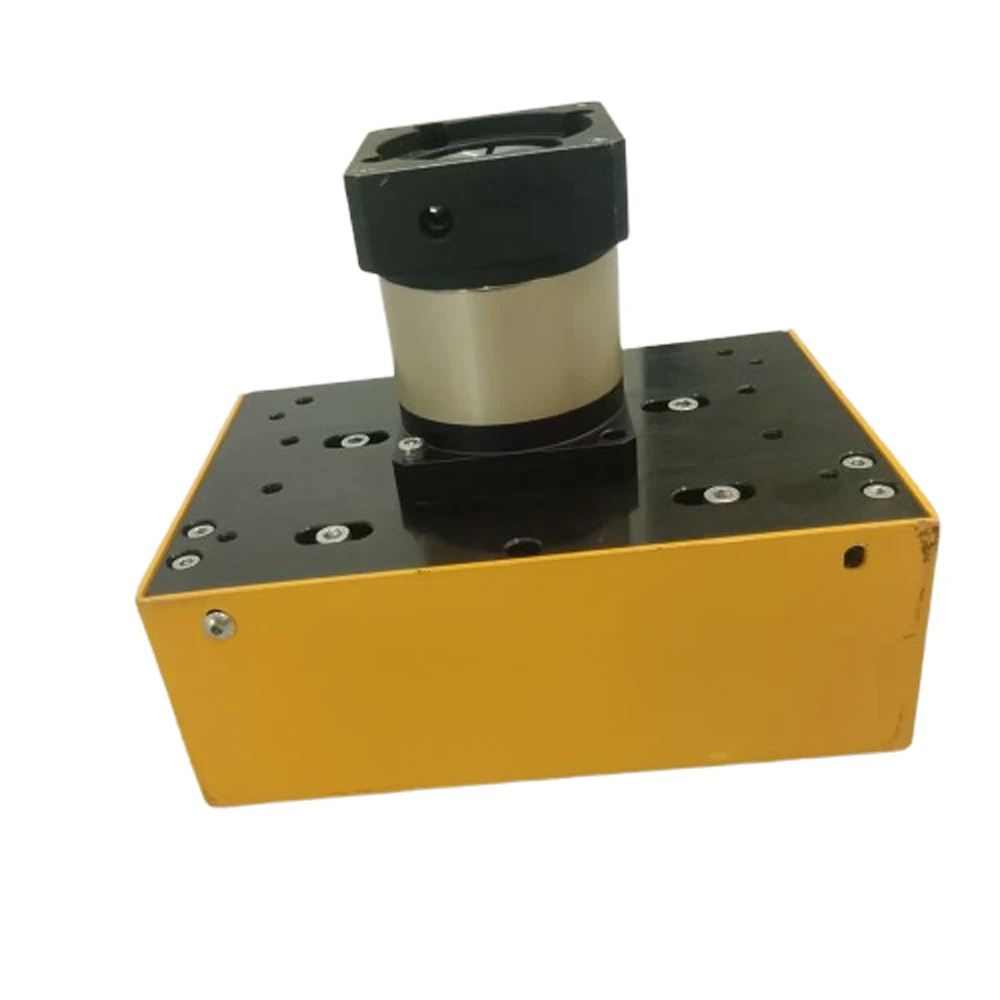

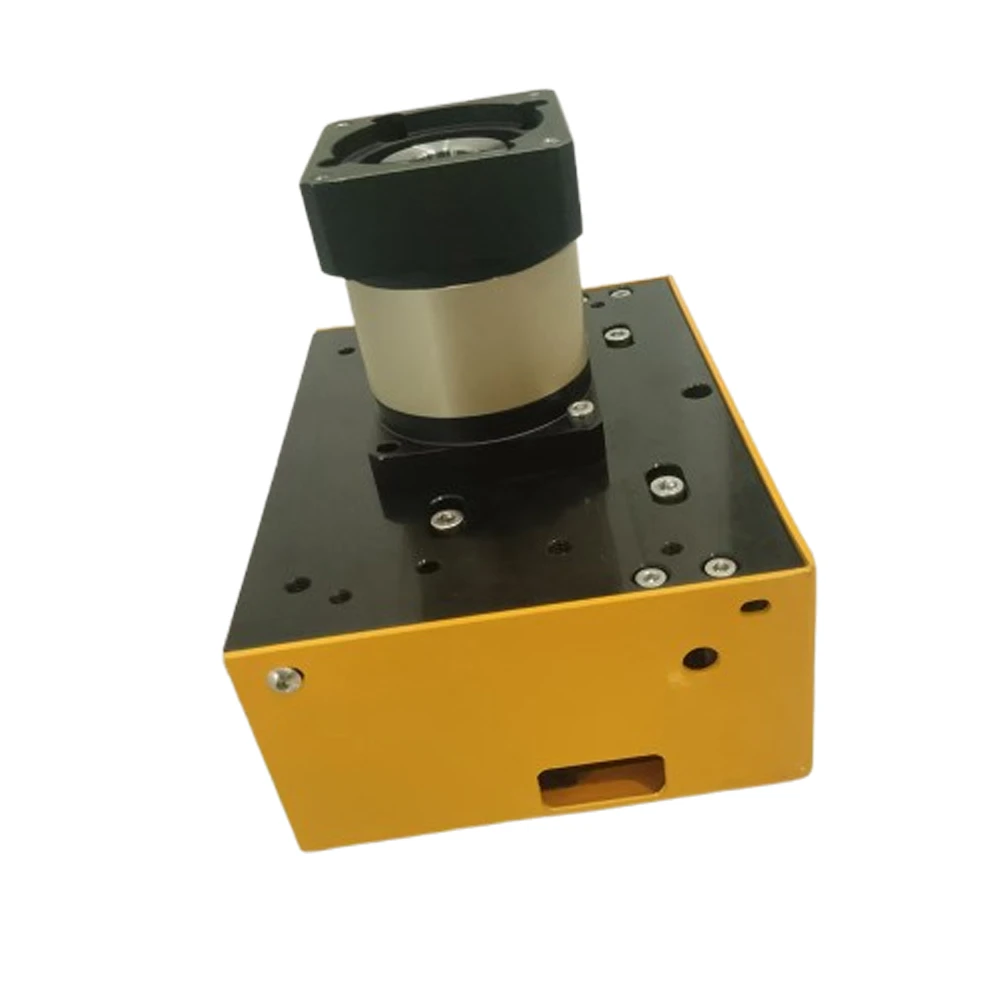

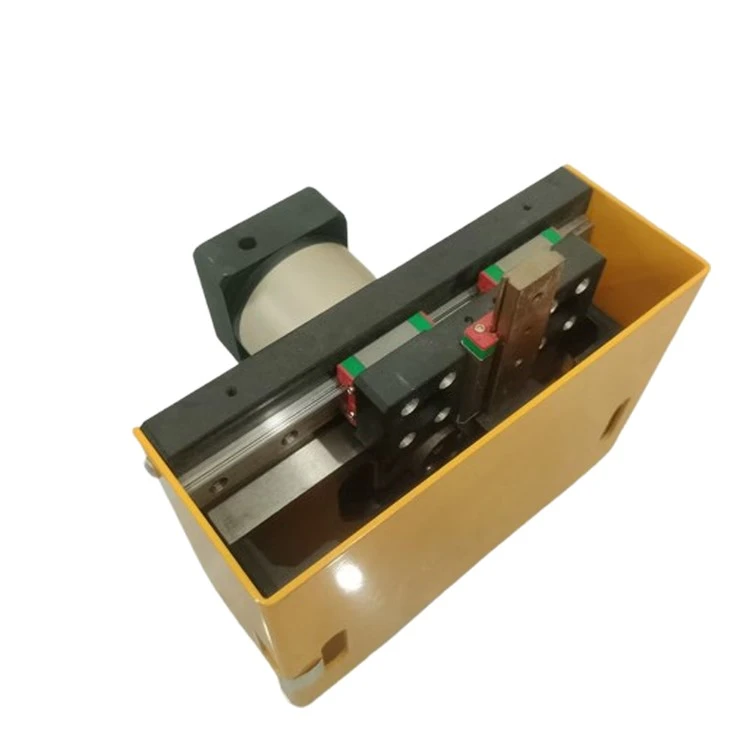

Mini PPU Pick and Place is a transfer manipulator built with an all-cam mechanism. Controlled by an external control system, it is driven by the forward and reverse rotation of the motor unit, enabling the actuator to move along a predefined trajectory.

Ultra-fast cycle performance: Minimum single working cycle of 0.5s, with a positioning accuracy of ±0.02 mm

Core advantage over standard Mini PPU Pick and Places: Fully adjustable X-axis travel, which maximizes the effective pick-and-place working stroke, greatly expanding its application compatibility across different production scenarios.

Technical Specifications

Model	Mini PPU Pick and Place

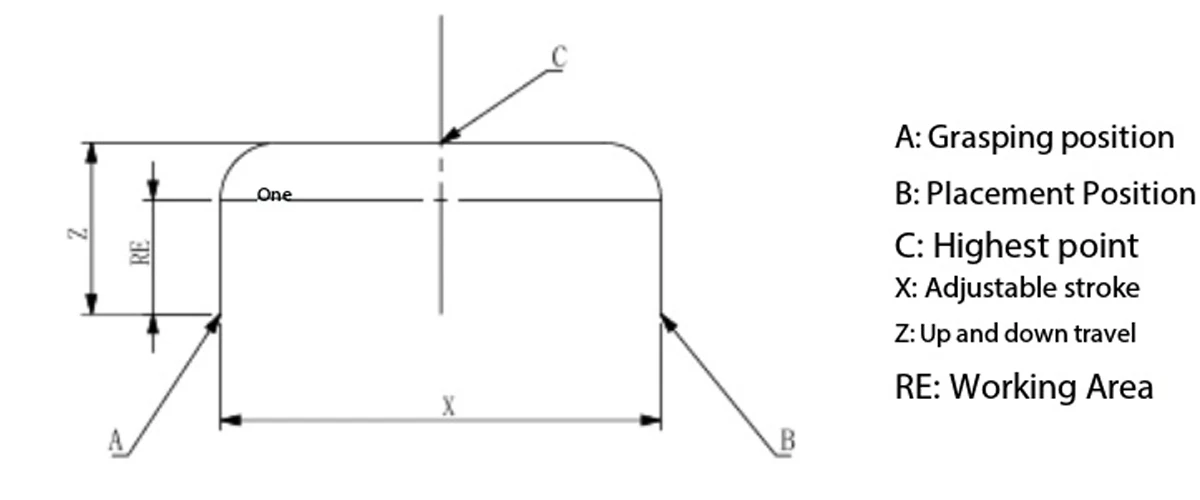

X-axis Linear Stroke	50~70 mm
Z-axis Stroke (Z-axis)	30 mm
Z-axis Stroke (RE)	15 mm
Repeatability	±0.02 mm
Cycle Time (Stepper Motor)	0.5 s
Cycle Time (Servo Motor)	0.3 s
Max Load	1.5 kg
Drive Source	57 Stepper Motor / Servo Motor

product-1200-1226

product-1200-500

Product Introduction

Compact Pick-and-Place Unit is a high-performance industrial-grade module designed for stable operation in various working environments. It adopts an integrated circuit structure with reliable materials, ensuring long service life and low failure rate. The product is compact in size, easy to install and maintain, and widely used in automated equipment, control systems, mechanical transmission and other fields.

Applications & Components

▶Industrial automation production lines

▶Mechanical equipment control systems

▶Intelligent manufacturing equipment

Why Choose This Machine

We choose this machine for its stable performance, high efficiency, reliable quality, easy operation, and excellent after-sales service, which can fully meet your production needs and bring long-term value to your business.

Part of Your Smart Factory

This machine is designed to be fully compatible with intelligent production lines and automated management systems. It can be seamlessly integrated into your smart factory, helping to realize data interconnection, efficient production and intelligent scheduling, and becoming a key module in building a modern intelligent manufacturing system.

FAQ(Frequently Asked Questions)

Q: Is this equipment compatible with different production lines?

A: It has strong compatibility and can be connected with most standard production lines and control systems to achieve stable operation.

Q: How long is the warranty coverage for this small-footprint pick-and-place solution?

A: We provide a one-year official warranty. During the warranty period, we offer free maintenance and technical support for quality problems.

Q: Do you provide installation and operation guidance?

A: Yes, we will provide detailed user manuals, wiring diagrams and online technical guidance to help you install and debug quickly.
