Product Introduction

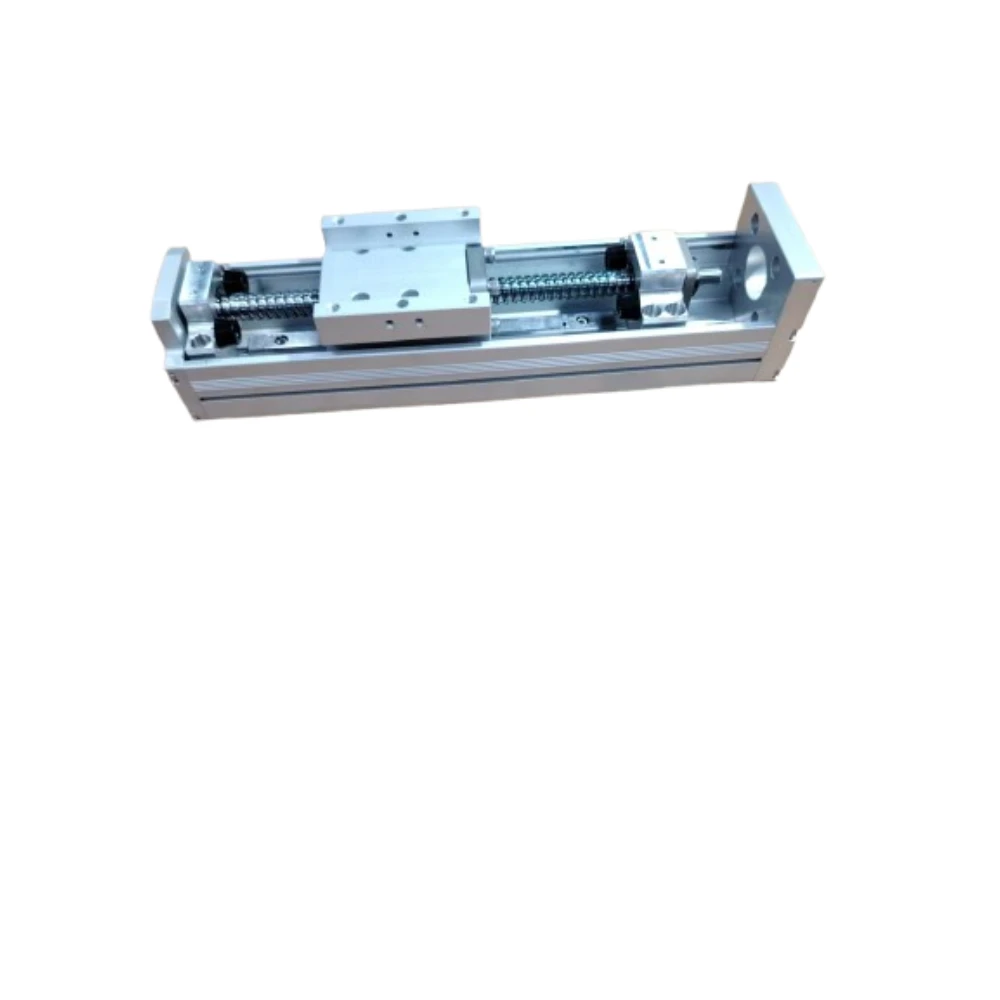

The Left-fold Ball Screw Linear Module is a belt-driven linear module built for long-stroke, low-noise high-speed automation scenarios. It adopts an 85mm standard body, matched with high-tension timing belt and precision 3M pulley, combined with EGW15CA high-rigidity linear guide. While achieving an ultra-long stroke of 1100mm, it balances the stability and low-noise performance of high-speed operation, providing a cost-effective, low-maintenance linear transmission solution for long-distance conveying and high-speed transfer scenarios.
Key Benefits
▶Long-Stroke High-Speed Adaptation
▶Low-Noise Smooth Transmission
▶Low Maintenance & High Durability
▶High-Load Rigid Structure

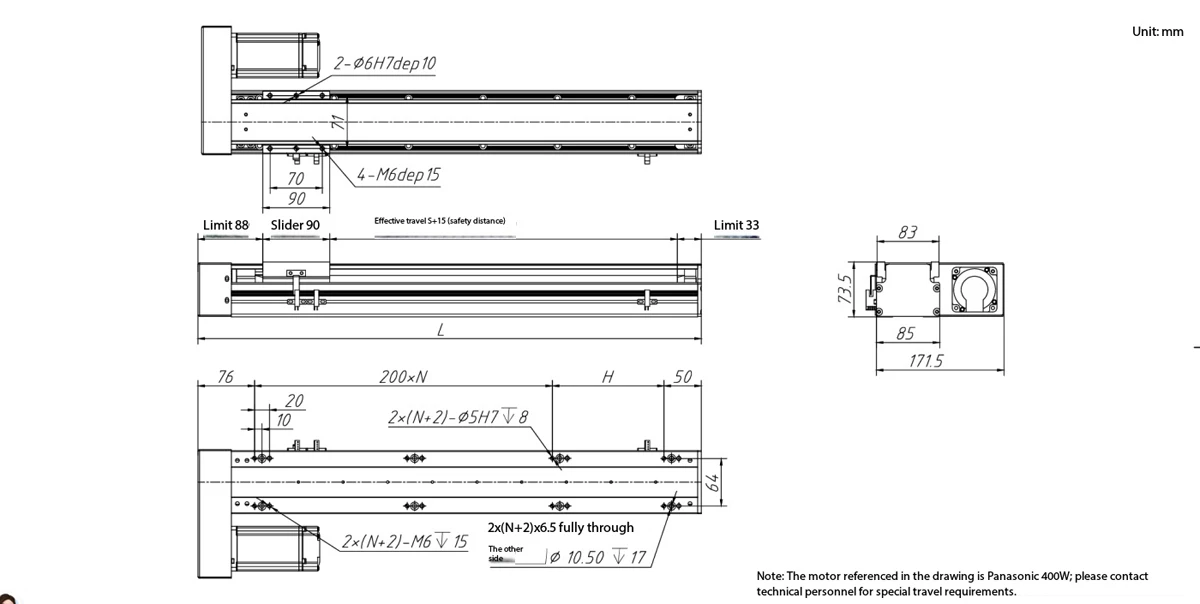

Technical Specifications
|
Module Model |
Left-fold Ball Screw Linear Module |
||
|
Repeat Positioning Accuracy C/P |
±0.02mm / ±0.01mm |
||
|
Ball Screw Lead |
5mm / 10mm / 20mm |
||
|
Max Horizontal Load |
40kg / 30kg / 15kg |
||
|
Max Vertical Load |
11kg / 9kg / 4kg |
||
|
Max Speed |
250mm/s / 500mm/s / 1000mm/s |
||
|
AC Motor Configuration |
400W |
||
|
Ball Screw Outer Diameter |
Φ16mm |
||
|
Linear Guide Brand/Model |
EGW15CA |
||
|
Timing Pulley Model |
3M-40-17 |
||
|
External Sensor |
SX672 NPN |
||
|
Internal Sensor |
None |
||
|
Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) | Height (H) |
|
50 |
276 |
0 |
150 |
|
100 |
326 |
0 |
200 |
|
150 |
376 |
1 |
50 |
|
200 |
426 |
1 |
100 |
|
250 |
476 |
1 |
150 |
|
300 |
526 |
1 |
200 |
|
350 |
576 |
2 |
50 |
|
400 |
626 |
2 |
100 |
|
450 |
676 |
2 |
150 |
|
500 |
726 |
2 |
200 |
|
550 |
776 |
3 |
50 |
|
600 |
826 |
3 |
100 |
|
650 |
876 |
3 |
150 |
|
700 |
926 |
3 |
200 |
|
750 |
976 |
4 |
50 |
|
800 |
1026 |
4 |
100 |
|
850 |
1076 |
4 |
150 |
|
900 |
1126 |
4 |
200 |
|
950 |
1176 |
5 |
50 |
|
1000 |
1226 |
5 |
100 |
|
1050 |
1276 |
5 |
150 |
|
1100 |
1326 |
5 |
200 |
Applications & Components
▶Light Industry: Textile equipment traverse, non-woven fabric cutting, printing equipment transmission unit
▶Intelligent Warehousing: Supporting transfer for small AGVs, reciprocating conveying unit for electronic silos
▶Electronic Manufacturing: PCB board conveying, SMT production line loading/unloading mechanism
Why Choose This Machine
The Left-fold Ball Screw Linear Module implements full-process quality control. Each product undergoes 100-hour continuous running test and tension calibration before delivery. Conventional specifications are in stock for 48-hour fast delivery; 18-month warranty and lifetime technical support are provided, supporting non-standard customization of mounting holes, protection level, etc.
Part of Your Smart Factory
Seamlessly compatible with Industry 4.0 production lines, supports protocols such as Modbus and EtherNet/IP, enables linkage control with vision systems and robots, and can upload operating data for predictive maintenance, helping production line digital management and efficiency improvement.
FAQ(Frequently Asked Questions)
Q: Can novices install Left-fold Ball Screw Linear Drive Stage by themselves? Is on-site debugging required?
A: Yes. It is pre-adjusted before delivery with installation tutorials. Ordinary electricians can complete the installation without on-site debugging.
Q: Does the product have international certifications? Does it meet overseas export standards?
A: It has passed CE and ROHS certifications, core accessories meet UL standards, and meet export requirements of mainstream global markets.
Q: Will the positioning accuracy decay after long-term use? How to ensure it?
A: Minimal decay under normal working conditions. High fatigue-resistant timing belt + wear-resistant guide rail, regular belt tension check can ensure stable accuracy.
