Product Introduction

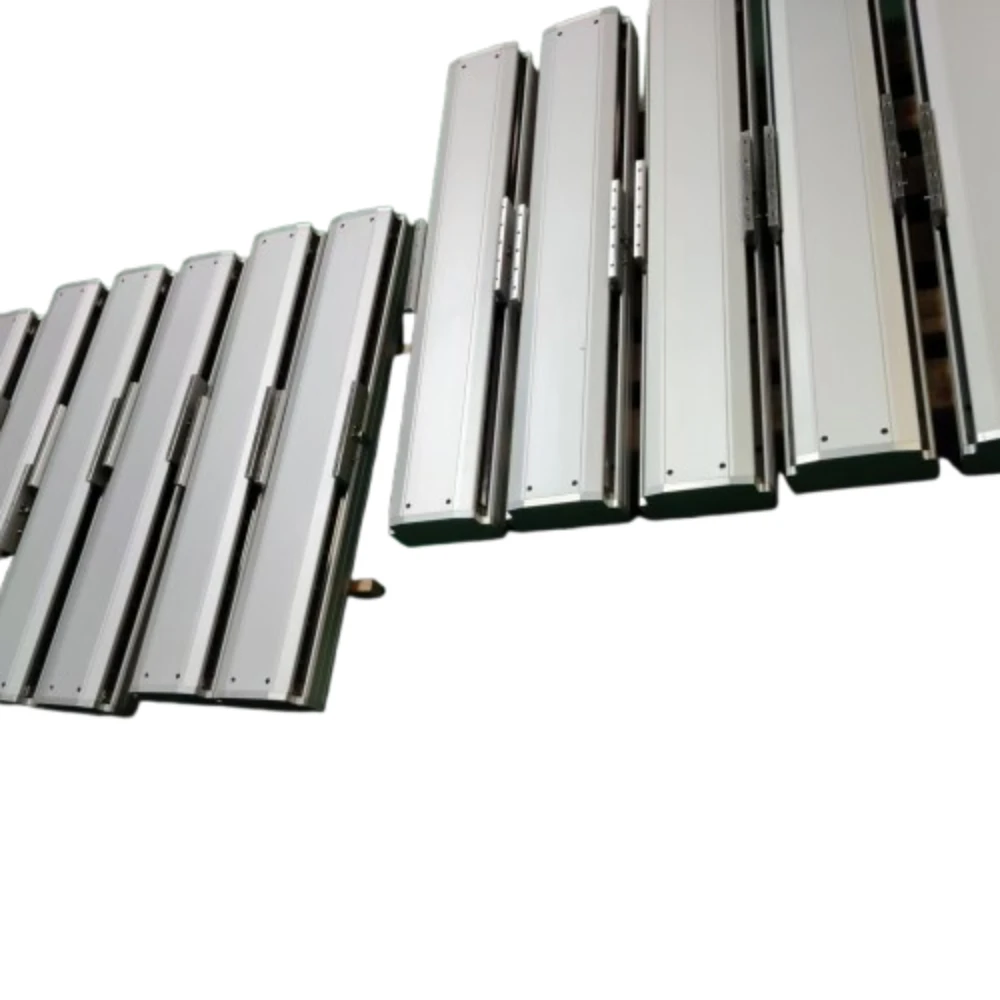

Left-side Flange-Mount Ball Screw Linear Guide Rail is a compact, low-noise belt-driven linear module equipped with high-tension timing belt and precision linear guide. The integrated extruded aluminum alloy body achieves light weight while maintaining high structural rigidity. It delivers smooth transmission without stagnation, ideal for long-stroke high-speed reciprocating motion. Perfect for building non-standard automation equipment and serving as an optimal linear motion unit for precision transfer and sorting conveying scenarios.
Key Benefits
▶Low noise & smooth operation
▶High rigidity & anti-deformation
▶Strong universal compatibility.
Technical Specifications
|
Module Model |
Left-side Flange-Mount Ball Screw Linear Guide Rail |
||
|
Repeat Positioning Accuracy C/P |
±0.02mm / ±0.01mm |
||
|
Lead |
5mm / 10mm / 20mm |
||
|
Max Horizontal Load |
70kg / 47kg / 24kg |
||
|
Max Vertical Load |
17kg / 12kg / 6kg |
||
|
Max Speed |
250mm/s / 500mm/s / 1000mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
Φ16mm / Φ20mm |
||
|
Linear Guide Brand/Model |
EGH15CA |
||
|
Timing Pulley Model |
3M-40-17 |
||
|
External Sensor |
SX672 NPN |
||
|
Internal Sensor |
None |
||
|

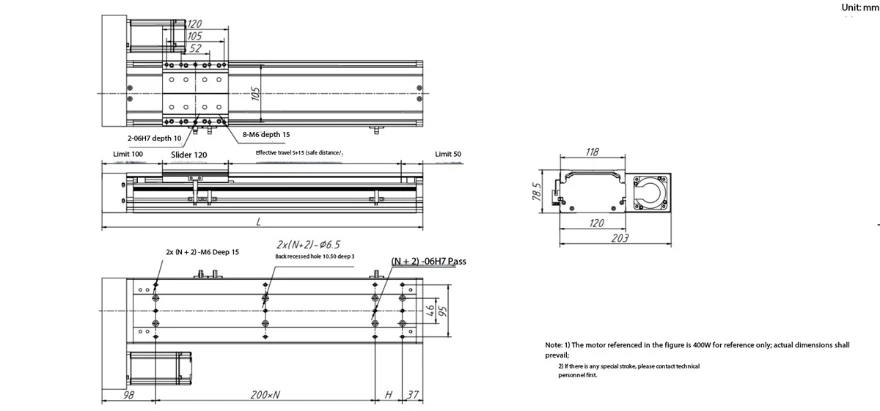

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
100mm |
385mm |
1 |
50 |
|
150mm |
435mm |
1 |
100 |
|
200mm |
485mm |
1 |
150 |
|
250mm |
535mm |
1 |
200 |
|
300mm |
585mm |
2 |
50 |
|
350mm |
635mm |
2 |
100 |
|
400mm |
685mm |
2 |
150 |
|
450mm |
735mm |
2 |
200 |
|
500mm |
785mm |
3 |
50 |
|
550mm |
835mm |
3 |
100 |
|
600mm |
885mm |
3 |
150 |
|
650mm |
935mm |
3 |
200 |
|
700mm |
985mm |
4 |
50 |
|
750mm |
1035mm |
4 |
100 |
|
800mm |
1085mm |
4 |
150 |
|
850mm |
1135mm |
4 |
200 |
|
900mm |
1185mm |
5 |
50 |
|
950mm |
1235mm |
5 |
100 |
|
1000mm |
1285mm |
5 |
150 |
Applications & Components
▶3C Electronics Automation: Automatic loading and unloading of components, reciprocating transfer of PCB boards, sliding platform for precision inspection stations.
▶Packaging Machinery Equipment: Synchronous displacement for labeling and inkjet coding, left-right transfer of automatic packaging lines, finished product sorting and pushing mechanism.
▶Logistics & Warehousing Conveying: Pick-and-place unit for small automated warehouses, multi-station transfer of sorting lines, supporting slide table for automated assembly lines.
Why Choose This Machine
Left-side Flange-Mount Ball Screw Linear Guide Rail undergoes complete assembly and running-in calibration before delivery with high positioning consistency. Standardized structure enables easy splicing and multi-axis networking, supporting custom stroke and mounting holes. With stable lead time and cost performance, it fits long-term mass production of small and medium automation equipment.
Part of Your Smart Factory
Equipped with universal industrial interface, it is compatible with mainstream PLC and motion control systems, easy to integrate into smart factory production lines. Modular design supports multi-axis combination for flexible stations, matching unmanned operation demands of digital workshops.
FAQ(Frequently Asked Questions)
Q: Will positioning accuracy decline after long-term frequent reciprocating operation?
A: Calibrated in tension and accuracy before delivery, the transmission structure features low wear and maintains stable positioning under long-term high-frequency operation.
Q: Can the sensor position be adjusted according to equipment requirements?
A: Sensor mounting position and wiring direction can be adjusted on demand, and overall non-standard modification is available per customer drawings.
Q: Is the installation complicated for new users?
A: Standardized interface and mounting holes simplify installation. With installation reference provided, one person can finish assembly quickly.
