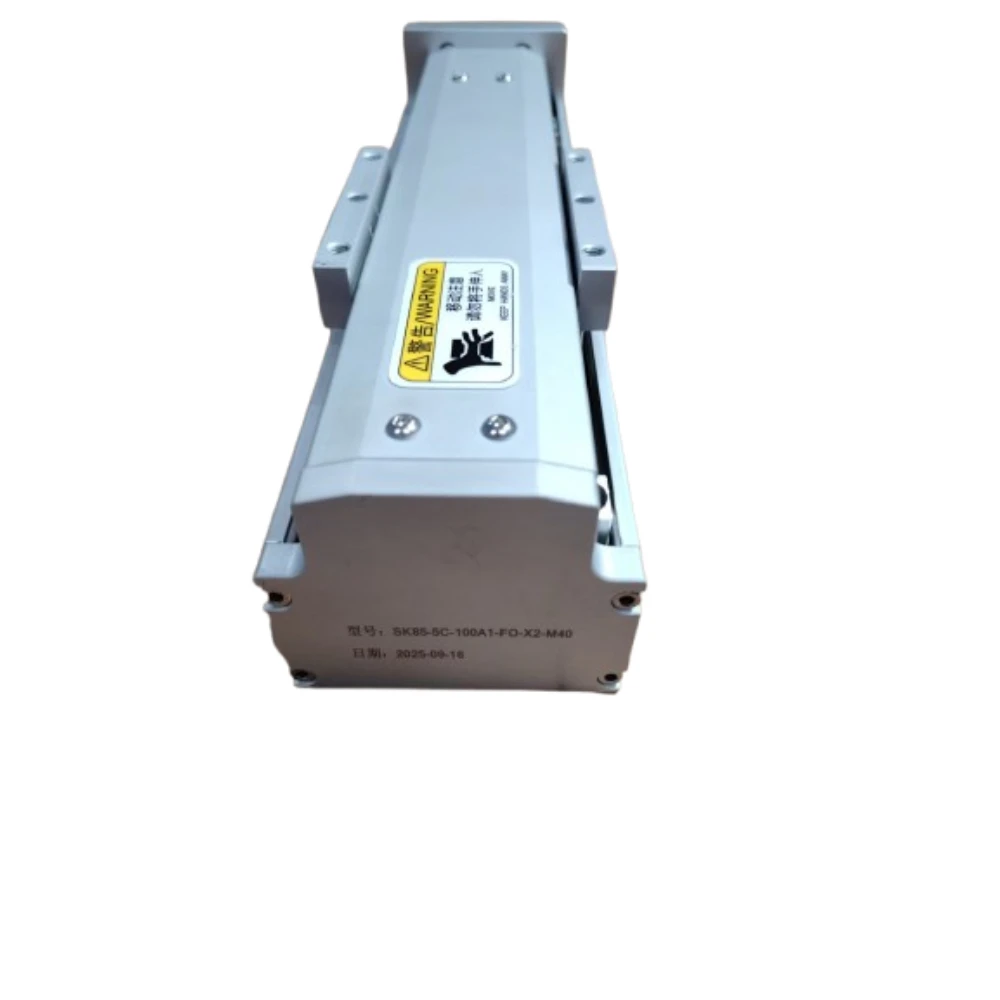

Product Introduction
The High-precision Ball Screw Module is a direct-drive ball screw linear module built for high-precision automation scenarios. It adopts a motor-screw coaxial direct-drive structure, matched with a high-rigidity linear guide, eliminates transmission backlash, realizes micron-level stable positioning, covers 50-1000mm full stroke, and provides a highly reliable linear transmission solution for precision machining, high-end inspection and other scenarios.
Key Benefits
▶ Direct-Drive Zero Backlash Transmission
▶ High-Rigidity Heavy Load Adaptation
▶ Semi-Enclosed Maintenance-Free
Technical Specifications
|
Module Model |
High-precision Ball Screw Module |
||
|
Repeat Positioning Accuracy C/P |
±0.02mm / ±0.01mm |
||
|
Ball Screw Lead |
5mm / 10mm / 20mm |
||
|
Max Horizontal Load |
40kg / 30kg / 15kg |
||
|
Max Vertical Load |
11kg / 9kg / 4kg |
||
|
Max Speed |
250mm/s / 500mm/s / 1000mm/s |
||
|
AC Motor Configuration |
100W / 200W / 400W |
||
|
Ball Screw Outer Diameter |
Φ16mm |
||
|
Linear Guide Brand/Model |
EGW15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX672 NPN |
||
|
Internal Sensor |
None |
||
|

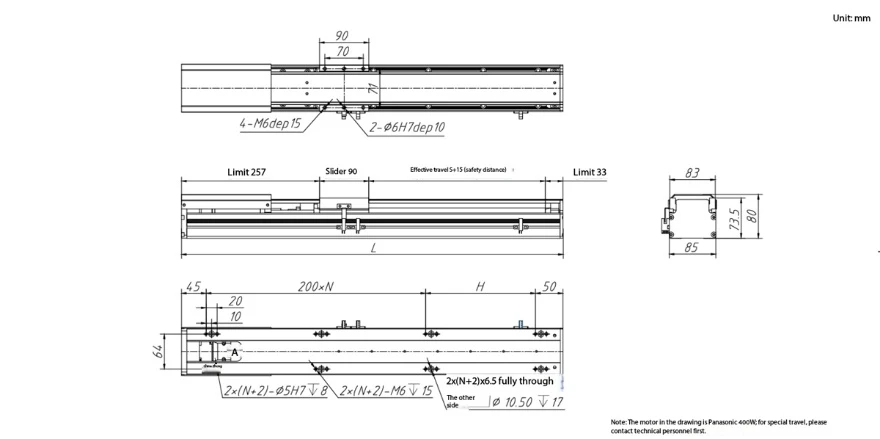

Effective Stroke (S) |
Overall Length (L) |
||
|
50 |
445 |
1 |
150 |
|
100 |
495 |
1 |
200 |
|
150 |
545 |
2 |
50 |
|
200 |
595 |
2 |
100 |
|
250 |
645 |
2 |
150 |
|
300 |
695 |
2 |
200 |
|
350 |
745 |
3 |
50 |
|
400 |
795 |
3 |
100 |
|
450 |
845 |
3 |
150 |
|
500 |
895 |
3 |
200 |
|
550 |
945 |
4 |
50 |
|
600 |
995 |
4 |
100 |
|
650 |
1045 |
4 |
150 |
|
700 |
1095 |
4 |
200 |
|
750 |
1145 |
5 |
50 |
|
800 |
1195 |
5 |
100 |
|
850 |
1245 |
5 |
150 |
|
900 |
1295 |
5 |
200 |
|
950 |
1345 |
6 |
50 |
|
1000 |
1395 |
6 |
100 |
Applications & Components
▶ Precision Machining: CNC engraving, laser cutting, precision drilling equipment
▶ 3C & Semiconductor: Chip packaging inspection, mobile phone precision assembly equipment
▶ Medical Instruments: Endoscope assembly, diagnostic reagent dispensing platform
Why Choose This Machine
Full-process ISO9001 accuracy control, each product comes with an exclusive accuracy test report, conventional specifications in stock for 48-hour ultra-fast delivery; 18-month ultra-long warranty, lifetime technical support, full-dimensional non-standard customization supported.
Part of Your Smart Factory
Compatible with mainstream industrial protocols such as EtherCAT and Profinet, seamlessly connects to MES system, vision inspection and servo system, supports real-time upload of operating data, adapts to digital management of Industry 4.0 smart production lines.
FAQ(Frequently Asked Questions)
Q: Core difference between direct-drive and folded modules?
A: Direct-drive coaxial transmission has no backlash, better accuracy retention, suitable for high-precision scenarios; folded module saves more installation space, suitable for size-limited scenarios.
Q: Can we customize the specification for low temperature environment?
A: Yes, we can customize low-temperature special grease and low-temperature resistant materials for cold storage, low-temperature workshops and other special scenarios.
Q: Can you provide 3D models after purchase?
A: Free 3D models in mainstream formats such as STEP and SolidWorks are provided for all specifications, available after placing an order.
