Product Introduction
Right End Coupled Ball Screw Linear Slide Module is a screw-driven linear module with semi-closed design, delivering high rigidity, precise positioning and stable load capacity. Built for medium-to-high precision automation, it fits 3C, packaging, and assembly lines perfectly.
Key Benefits
▶Rigid & Stable: Reinforced aluminum base resists deflection under heavy loads.
▶Motor Compatibility: Direct fit for stepper/servo motors; standard mounting interface.
▶Low Maintenance: Sealed design reduces dust ingress, extending service life.
Technical Specifications
|
Model |
Right End Coupled Ball Screw Linear Slide Module |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.02 / ±0.01 mm |
||
|
Horizontal Load (KG) |
150 (Lead 5mm) / 120 (Lead 10mm) / 90 (Lead 20mm) |
||
|
Vertical Load (KG) |
60 (Lead 5mm) / 45 (Lead 10mm) / 30 (Lead 20mm) |
||
|
Max. Speed (mm/s) |
250 (Lead 5mm) / 500 (Lead 10mm) / 1000 (Lead 20mm) |
||
|
AC Motor Configuration |
750W / 1KW / 1.5KW |
||
|
Ball Screw Outer Diameter |
Ø25 / Ø32 |
||
|
Guide Rail Brand / Model |
EGH25CA |
||
|
Timing Pulley Model |
5M-25-21 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Optional |
||
|

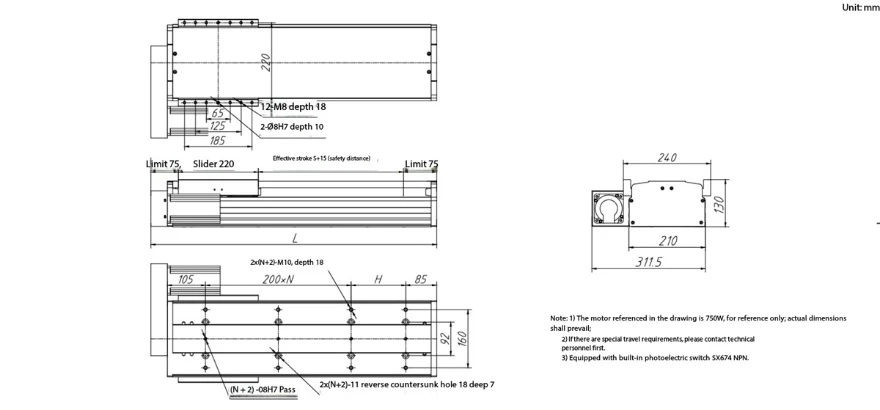

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
100 |
485 |
1 |
50 |
|
150 |
535 |
1 |
100 |
|
200 |
585 |
1 |
150 |
|
250 |
635 |
1 |
200 |
|
300 |
685 |
2 |
50 |
|
350 |
735 |
2 |
100 |
|
400 |
785 |
2 |
150 |
|
450 |
835 |
2 |
200 |
|
500 |
885 |
3 |
50 |
|
550 |
935 |
3 |
100 |
|
600 |
985 |
3 |
150 |
|
650 |
1035 |
3 |
200 |
|
700 |
1085 |
4 |
50 |
|
750 |
1135 |
4 |
100 |
|
800 |
1185 |
4 |
150 |
|
850 |
1235 |
4 |
200 |
|
900 |
1285 |
5 |
50 |
|
950 |
1335 |
5 |
100 |
|
1000 |
1385 |
5 |
150 |
Applications & Components
▶Precision Instrument Calibration: Perfect for fine positioning of testing instruments and laboratory precision adjustment platforms.
▶Non-standard Automation Matching: Matched for small multi-axis platform, special process handling and customized mechanical linear motion structure.
▶Automated Assembly Production: Suitable for electronic parts fitting, locking screw mechanism and workstation cyclic shifting.
Why Choose This Machine
Engineered for high accuracy + heavy load + cost efficiency, Right End Coupled Ball Screw Linear Slide Module outperforms standard belt modules in rigidity and precision. Strict factory calibration ensures consistent quality; modular design enables easy integration and replacement, lowering project costs.
Part of Your Smart Factory
As a core motion unit, Right-coupled Ball Screw Linear Motion Module integrates seamlessly into automated lines, gantry systems, and multi-axis robots. It supports stable cyclic operation, reduces manual intervention, and boosts workshop efficiency and intelligence.
FAQ(Frequently Asked Questions)
Q: What advantages does semi-closed screw module have?
A: It balances dustproof performance and cost, with high positioning accuracy and stable running.
Q: Is the running noise low during operation?
A: Adopting high-precision screw and guide rail, friction is small and operation is quiet.
Q: Are mounting accessories provided together?
A: We can offer complete mounting brackets and connecting parts for one-stop matching.
