Product Introduction

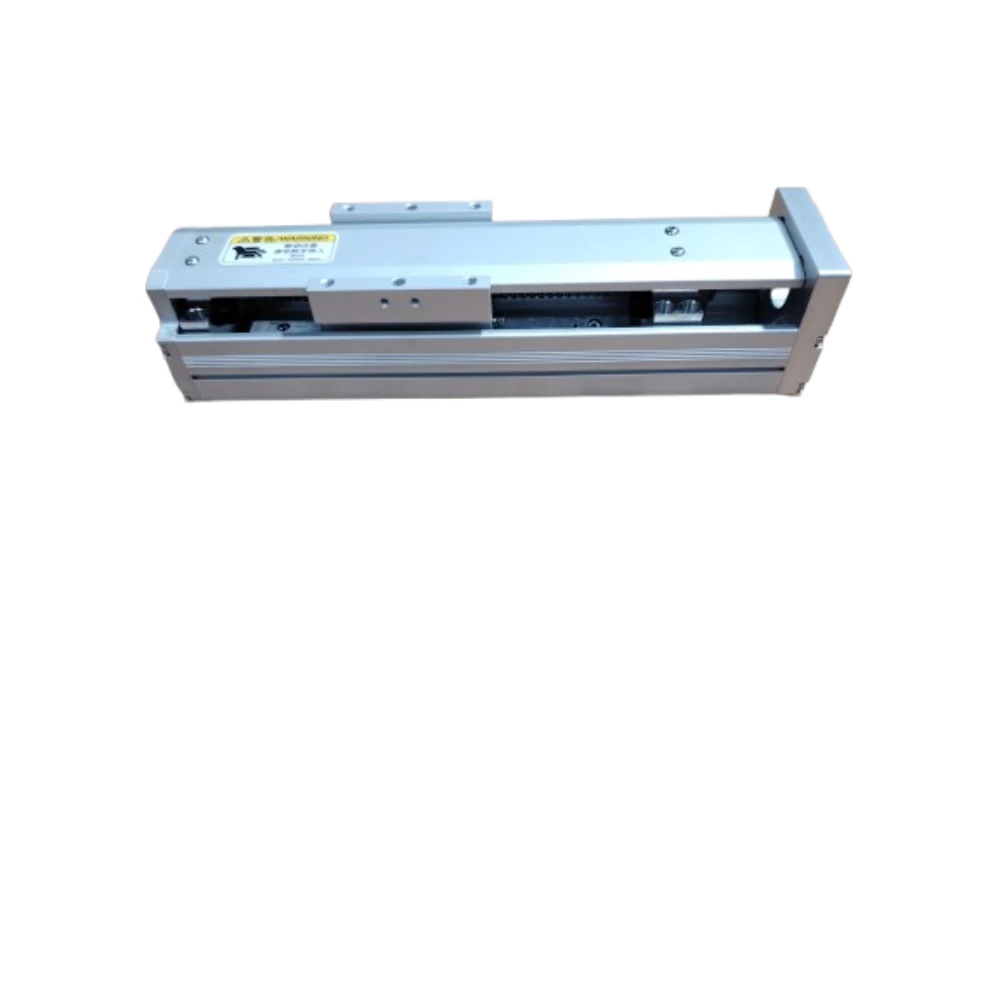

The General-purpose Ball Screw Linear Stage is a high-rigidity, high-precision, long-stroke ball screw driven linear module designed for industrial automation. Constructed with an aluminum alloy body and imported linear guides, it balances light weight with high load capacity, enabling high-speed, quiet, accurate linear motion. Widely used in electronics manufacturing, 3C equipment, precision inspection, automatic loading/unloading and intelligent warehousing.
Key Benefits
▶Ultra-high positioning accuracy
▶High load capacity
▶Durable & reliable:
▶Flexible integration
Technical Specifications
|
Module Model |
General-purpose Ball Screw Linear Stage |
||
|
Repeat Positioning Accuracy C/P |
±0.02mm / ±0.01mm |
||
|
Ball Screw Lead |
5mm / 10mm / 20mm |
||
|
Max Horizontal Load |
70kg / 47kg / 24kg |
||
|
Max Vertical Load |
17kg / 12kg / 6kg |
||
|
Max Speed |
250mm/s / 500mm/s / 1000mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
Φ16mm / Φ20mm |
||
|
Linear Guide Brand/Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX672 NPN |
||
|
Internal Sensor |
None |
||
|

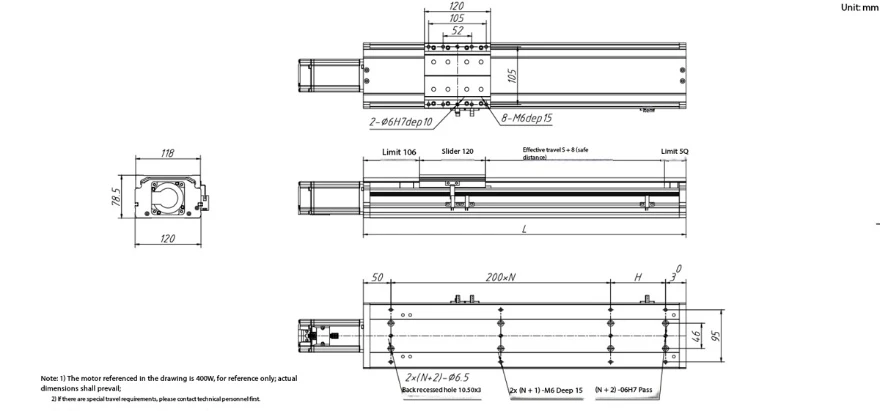

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
1000 |
38 |
1 |
100 |
|
1500 |
43 |
1 |
150 |
|
2000 |
48 |
1 |
200 |
|
2500 |
53 |
2 |
50 |
|
3000 |
58 |
2 |
100 |
|
3500 |
63 |
2 |
150 |
|
4000 |
68 |
2 |
200 |
|
4500 |
73 |
3 |
50 |
|
5000 |
78 |
3 |
100 |
|
5500 |
83 |
3 |
150 |
|
6000 |
88 |
3 |
200 |
|
6500 |
93 |
4 |
50 |
|
7000 |
98 |
4 |
100 |
|
7500 |
103 |
4 |
150 |
|
8000 |
108 |
4 |
200 |
|
8500 |
113 |
5 |
50 |
|
9000 |
118 |
5 |
100 |
|
9500 |
123 |
5 |
150 |
|
10000 |
128 |
5 |
200 |
Applications & Components
▶3C electronics: Dispensing, soldering, inspection, transfer
▶Precision machining: CNC loading/unloading, tool axes
▶PV/semiconductor: Light handling, precision alignment
Why Choose This Machine
With years of R&D and production experience in linear motion components, the General-purpose Ball Screw Linear Stage undergoes strict factory testing for stable accuracy, high interchangeability, fast delivery and cost-effectiveness. We provide complete drawings, 3D models and installation guides, with custom options for stroke, motor flanges and sensors-helping you accelerate automation projects.
Part of Your Smart Factory
The Multi-purpose Ball Screw Linear Guide Stage precision ball screw module adopts standardized industrial interface, which can be easily connected to the whole control system of smart factory and compatible with mainstream PLC and communication protocols. The modular body design supports multi-axis free combination to build gantry and Cartesian robot structure, matching the cycle of flexible production lines. With low failure rate and low maintenance, it fits the continuous operation requirement of unmanned production workshops, helping factories realize automation upgrading and capacity improvement.
FAQ(Frequently Asked Questions)
Q: Will the long-stroke Universal Ball Screw Linear Motion Stage shake or deviate during operation?
A: It adopts dual-rail high-rigidity structure and precision ball screw drive, no jitter or position deviation even at long stroke, delivering excellent stability.
Q: Can I replace motors with different power by myself?
A: Standardized mounting flange supports interchange of 200W/400W servo motors without modifying the body structure for flexible matching.
Q: Can the effective stroke be customized according to equipment demands?
A: Custom stroke cutting is available, and mounting holes can be adjusted on demand to fit various non-standard automation equipment.
