Product Introduction

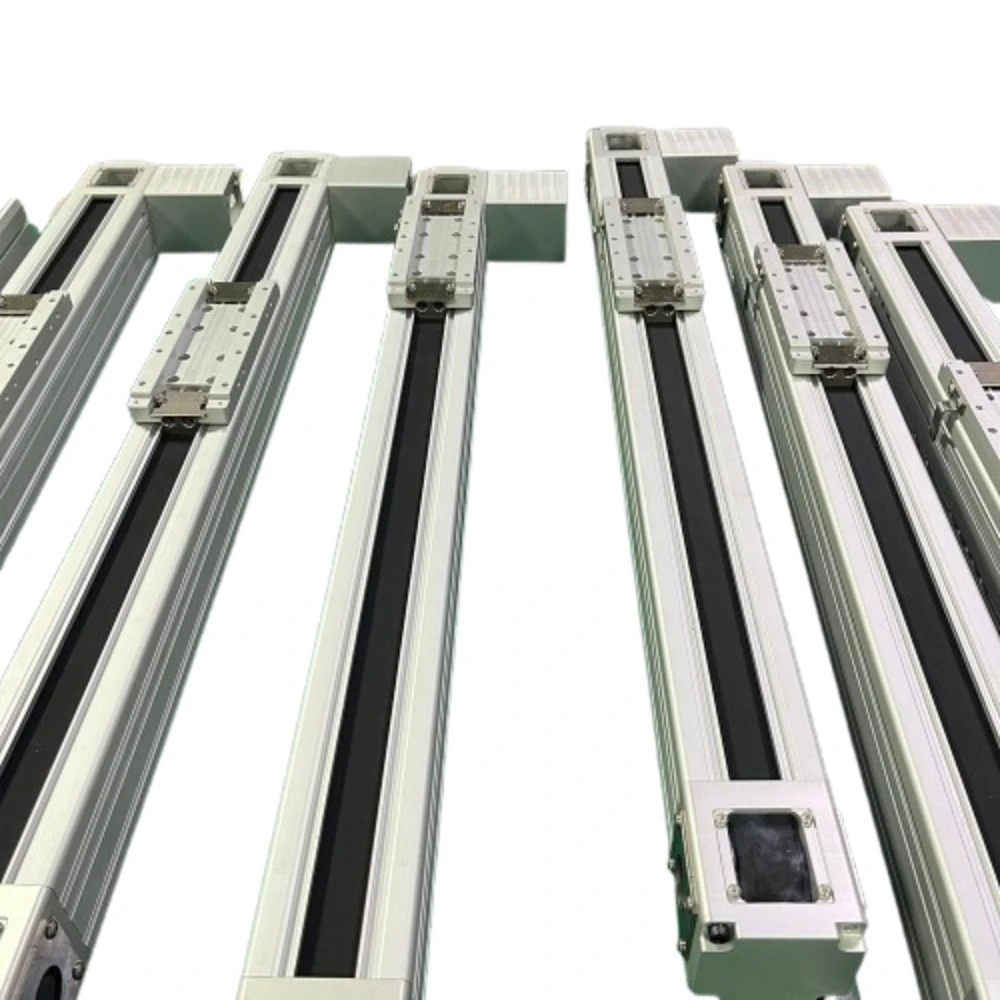

The FR-Type Industrial Belt Drive Brake Linear Module is an industrial-grade high-precision belt-driven linear module with a front-right mounted motor layout, tailor-made for automation equipment with limited right-side front installation space. As a mirror-matched model, it maintains ±0.08mm repeat positioning accuracy and 5000mm/s high-speed performance, perfectly adapting to right-oriented equipment layouts and dual-axis symmetric production lines. Fully interchangeable with same-spec models, it is ideal for compact automation scenarios where side motor installation is not feasible.
Key Benefits
▶ Front-right exclusive layout: Optimized for right-side front installation, perfectly paired with FL model for dual-axis symmetric design
▶ Space-saving design: No extra side space required, fits compact desktop equipment and narrow installation positions
▶ Stable high performance: ±0.08mm precision, 5000mm/s max speed, low vibration and low noise during long-term operation
Technical Specifications
|
Module Model |
FR-Type Industrial Belt Drive Brake Linear Module |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.08 |
||
|
Lead |
100 |
||
|
Rated Load (Horizontal, KG) |
15 |
||
|
Rated Load (Vertical, KG) |
Not Applicable |
||
|
Max Speed |
5000mm/s |
||
|
AC Motor Configuration |
100W / 200W / 400W |
||
|
Linear Guide Brand/Model |
EGW15CA |
||
|
Timing Belt Model |
5M-15 |
||
|
Timing Pulley Model |
5M-20-17 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Not Applicable |
||
|

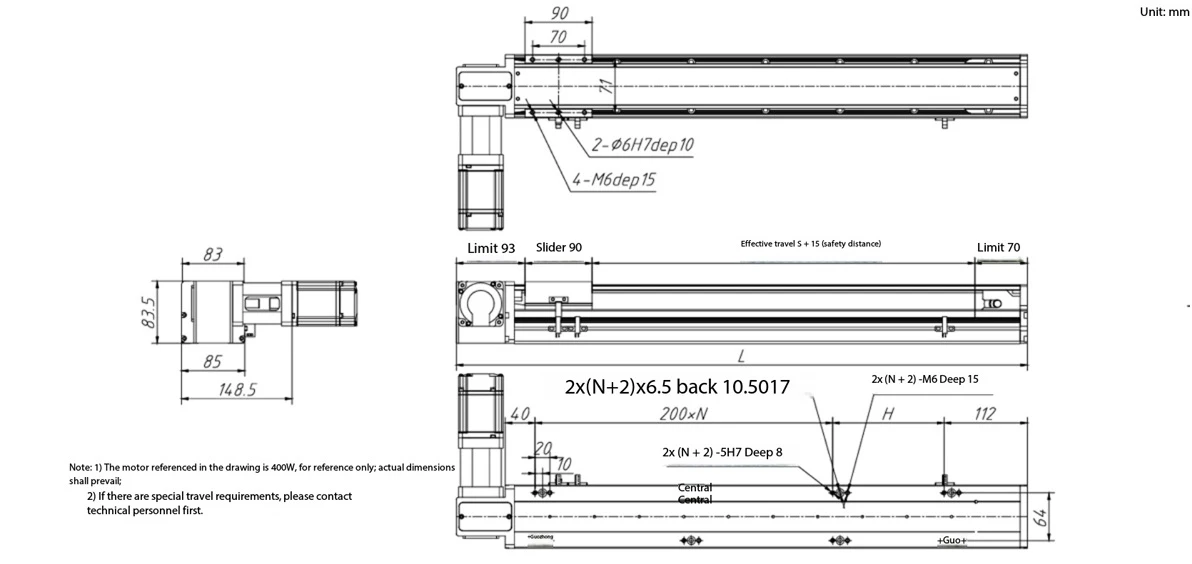

Effective Stroke (S, mm) |
L (mm) |
N |
H (mm) |
|
100 |
368 |
0 |
150 |
|
150 |
418 |
0 |
200 |
|
200 |
468 |
1 |
50 |
|
250 |
518 |
1 |
100 |
|
300 |
568 |
1 |
150 |
|
350 |
618 |
1 |
200 |
|
400 |
668 |
2 |
50 |
|
450 |
718 |
2 |
100 |
|
500 |
768 |
2 |
150 |
|
550 |
818 |
2 |
200 |
|
600 |
868 |
3 |
50 |
|
650 |
918 |
3 |
100 |
|
700 |
968 |
3 |
150 |
|
750 |
1018 |
3 |
200 |
|
800 |
1068 |
4 |
50 |
|
850 |
1118 |
4 |
100 |
|
900 |
1168 |
4 |
150 |
|
950 |
1218 |
4 |
200 |
|
1000 |
1268 |
5 |
50 |
Applications & Components
▶ Dual-axis symmetric gantry systems and paired multi-axis manipulators
▶ Right-oriented desktop dispensing, spraying and visual inspection equipment
▶Packaging machinery with right-side layout and linear production flow
Why Choose This Machine
We have optimized the FR-Type Industrial Belt Actuated Brake Linear Slide specifically for front-right mounting scenarios. Each unit undergoes full-cycle running test, precision calibration and load performance test before delivery. We provide one-to-one paired selection guidance, free 2D/3D drawings and fast non-standard customization services.
Part of Your Smart Factory
As a core execution component of smart manufacturing, the FR-Type Industrial Belt Drive Brake Linear Module is fully compatible with mainstream PLC and industrial control systems, and can be seamlessly integrated into your intelligent production line. Its front-right layout perfectly adapts to the standardized wiring norms of smart factories, supports multi-axis linkage networking with FL models, helps you optimize production line layout, improve production efficiency, and empower the flexible upgrade of your smart factory.
FAQ(Frequently Asked Questions)
Q: Can the industrial-grade FR belt-actuated linear stage with brake be directly paired with its counterpart for dual-axis synchronous operation?
A: Yes. The two models have completely consistent performance parameters, stroke range and mounting dimensions, only the motor mounting direction is mirrored. They are specially designed for dual-axis symmetric operation, and can be directly paired for synchronous use without adjusting the equipment structure.
Q: Does the front-right mounted design affect the module's load capacity?
A: No. The structural design of the FR-Type Belt Drive Linear Guide with Integrated Brake fully guarantees the overall rigidity, and its 15KG horizontal rated load is completely consistent with the same-series models. The front-right layout does not reduce the load performance while optimizing the installation space.
Q: Can I customize the sensor configuration for the FR Industrial Belt-Driven Brake Linear Motion Module?
A: Yes. In addition to the standard SX672NPN external sensor, we support built-in sensor customization, different brand sensor adaptation, and multi-sensor position customization to meet your special application needs.
