Product Introduction
The Long Stroke Belt Drive is an industrial-grade heavy-duty long-stroke linear module with a front-left mounted motor layout, professionally engineered for high-load, long-travel automation scenarios. It is equipped with a 750W high-power motor, 20 reduction ratio, and 1700mm effective stroke, paired with EGH25CA2R dual high-rigidity linear guides, delivering a 160kg rated horizontal load and ±0.1mm repeat positioning accuracy. The front-left motor design of the Long Stroke Belt Drive perfectly adapts to heavy equipment with limited left-front installation space, maintains stable performance under continuous high-load operation, and serves as the core actuator for heavy-duty smart manufacturing.
Key Benefits
▶ Ultra-high Heavy Load Capacity: The Long-Travel Belt-Operated Linear Guide System delivers 160kg rated horizontal load, specially optimized for heavy material handling and large equipment actuation
▶ Long Stroke Precision Retention: 1700mm full travel, dual-guide structure ensures no accuracy attenuation during long-term full-stroke operation of the extended-Travel Belt-Actuated Linear Drive
▶ Super Strong Structural Rigidity: EGH25CA2R linear guides + 50mm wide 8M timing belt, excellent anti-eccentric load capacity, low vibration under high load

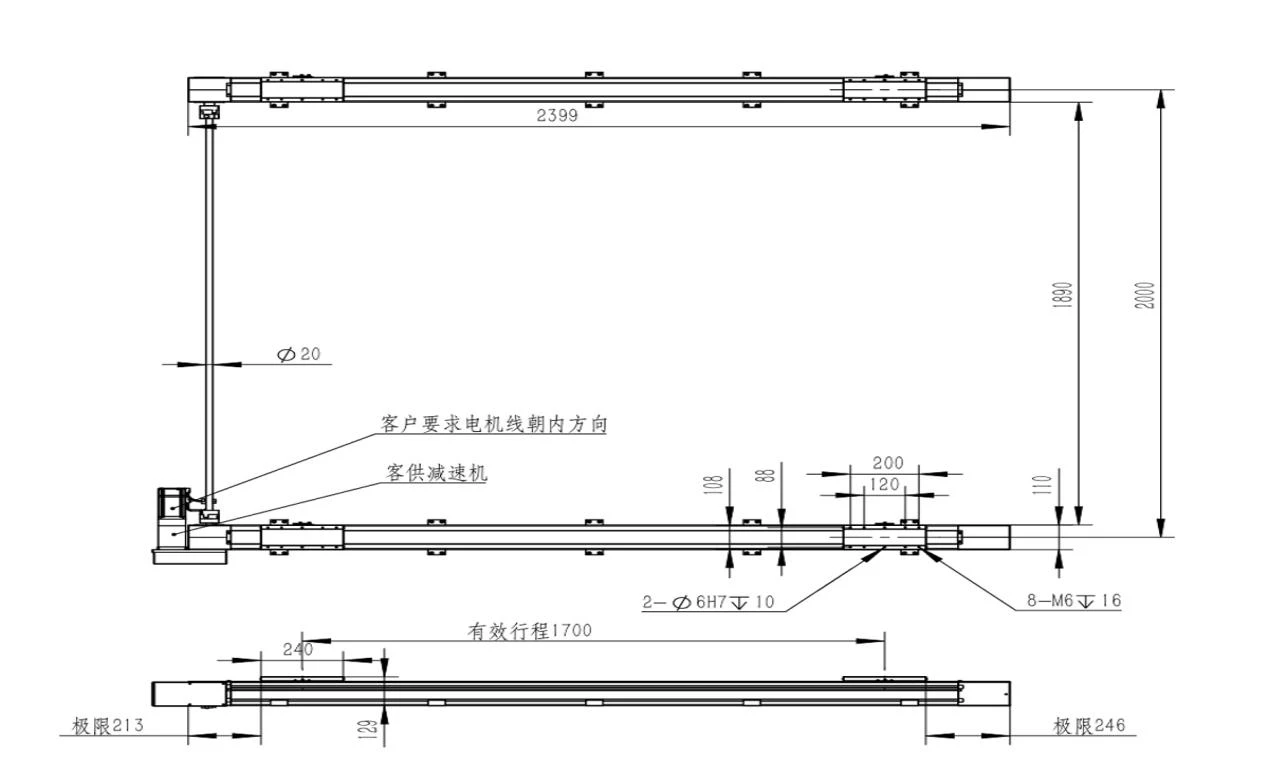

Technical Specifications
|
Long Stroke Belt Drive |
|
|
Repeat Positioning Accuracy |
±0.1mm |
|
Motor Power |
750W |
|
Reduction Ratio |
20 |
|
Horizontal Load |
160kg |
|
Timing Pulley Profile |
8M-35T |
|
Timing Belt Width |
50mm |
|
Linear Guide Model |
EGH25CA2R |
|
External Sensor |
672 (SX672NPN series) |
|
Stroke Options |
2000mm / 1700mm |
|
Lead |
14mm |
|
Maximum Speed |
700mm/s |
Applications & Components
▶ Gantry machining equipment, large welding automation lines & sheet metal processing equipment
▶ Heavy packaging machinery for food, chemical and building materials industries
▶ New energy battery pack assembly large-scale non-standard automation equipment
Why Choose This Machine
We have directionally optimized the Extended Travel Belt-Driven Linear Rail System for 1700mm long-stroke and 160kg heavy-load scenarios. Every High-Travel Belt-Actuated Linear Drive Module undergoes full-stroke load testing, precision calibration, and 200-hour continuous running test before delivery to ensure long-term stability under heavy-duty working conditions.
Part of Your Smart Factory
As the core execution component of heavy-duty smart manufacturing lines, the Long-Stroke Belt-Driven Linear Actuator Unit is fully compatible with mainstream heavy-duty PLC control systems including Siemens, Mitsubishi, Rockwell and Delta, Modbus bus communication, and can be seamlessly connected to MES management systems for intelligent warehousing and heavy processing lines.
FAQ(Frequently Asked Questions)
Q: Will the 1700mm long stroke of the High-Stroke Belt-Driven Linear Stage cause accuracy attenuation during long-term operation?
A: No. The High-Stroke Belt-Driven Linear Stage adopts EGH25CA2R dual high-rigidity linear guides and 50mm wide high-strength 8M timing belt, which effectively controls long-stroke deformation and deflection. After strict factory calibration, it can maintain ±0.1mm repeat positioning accuracy for a long time under full-load operation, without obvious accuracy attenuation.
Q: Can the Extended-Stroke Belt-Actuated Linear Guide Module be used for vertical lifting of heavy loads?
A: The standard model of the Extended-Stroke Belt-Actuated Linear Guide Module is optimized for horizontal heavy-load operation. For vertical lifting scenarios, we can equip it with a 750W brake motor with holding brake, anti-fall components and reinforced guide sliders, and customize a special protection scheme to ensure the safety of vertical heavy-load lifting.
Q: What is the service life of the Long-Travel Belt-Driven Linear Motion System under full load?
A: Under normal working conditions with regular lubrication and maintenance, the service life of the Long-Travel Belt-Driven Linear Motion System can reach more than 20,000 working hours under 80% rated load. The wearing parts are easy to replace, which greatly reduces your later maintenance costs.
