Product Introduction
The Embedded Linear Guide Belt Drive Crawler-Type Linear Module FL is an industrial-grade high-precision belt-driven linear module, designed with a front-mounted motor layout to optimize compact equipment footprint. Built for scenarios where side motor installation is restricted, it delivers the same ±0.08mm precision and 5000mm/s high-speed performance while saving critical horizontal space. Fully interchangeable with same-spec models, it's ideal for tight-layout automation equipment and smart production lines.
Key Benefits
▶ Front-mounted motor design: Optimized for tight equipment layouts, no side installation space required
▶ Low maintenance: Pre-assembled modular structure with dust-sealed design, long service life
▶ Universal compatibility: Identical mounting dimensions to same-series models, reducing inventory costs
Technical Specifications
|
Module Model |
Embedded Linear Guide Belt Drive Crawler-Type Linear Module FL |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.08 |
||
|
Lead |
100 |
||
|
Rated Load (Horizontal, KG) |
15 |
||
|
Rated Load (Vertical, KG) |
Not Applicable |
||
|
Max Speed |
5000mm/s |
||
|
AC Motor Configuration |
100W / 200W / 400W |
||
|
Linear Guide Model |
EGW15CA |
||
|
Timing Belt Model |
5M-15 |
||
|
Timing Pulley Model |
5M-20-17 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Not Applicable |
||
|

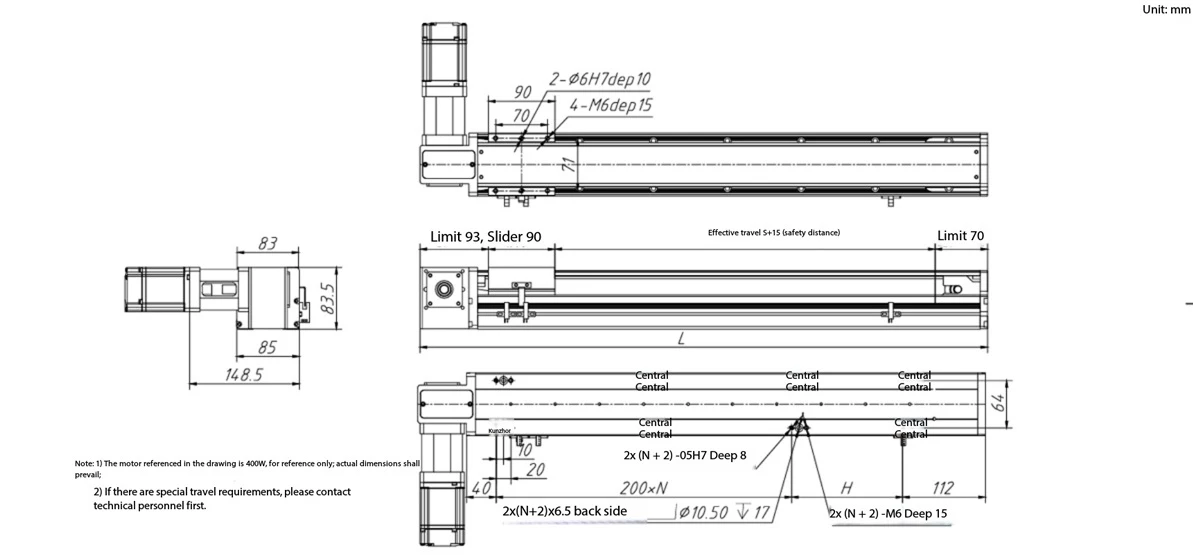

Effective Stroke (S, mm) |
L (mm) |
N |
H (mm) |
|
100 |
368 |
0 |
150 |
|
150 |
418 |
0 |
200 |
|
200 |
468 |
1 |
50 |
|
250 |
518 |
1 |
100 |
|
300 |
568 |
1 |
150 |
|
350 |
618 |
1 |
200 |
|
400 |
668 |
2 |
50 |
|
450 |
718 |
2 |
100 |
|
500 |
768 |
2 |
150 |
|
550 |
818 |
2 |
200 |
|
600 |
868 |
3 |
50 |
|
650 |
918 |
3 |
100 |
|
700 |
968 |
3 |
150 |
|
750 |
1018 |
3 |
200 |
|
800 |
1068 |
4 |
50 |
|
850 |
1118 |
4 |
100 |
|
900 |
1168 |
4 |
150 |
|
950 |
1218 |
4 |
200 |
|
1000 |
1268 |
5 |
50 |

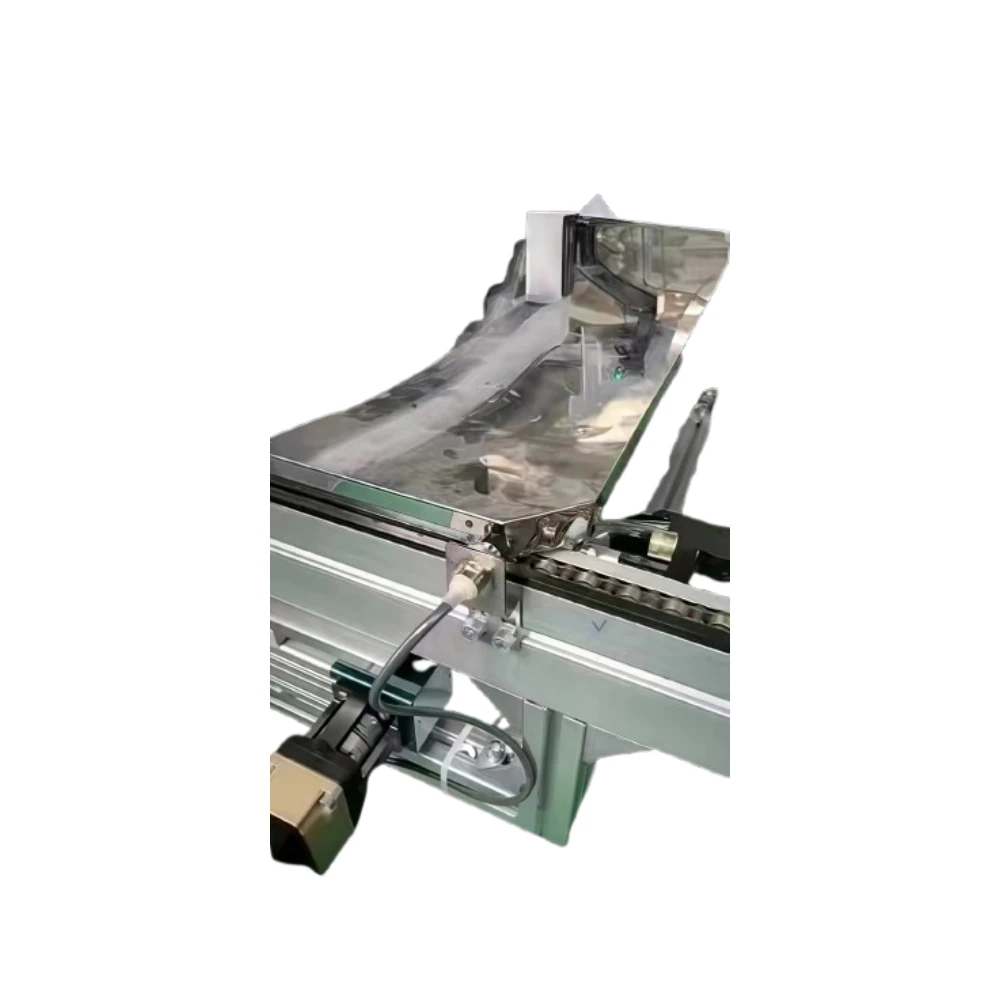

Applications & Components
▶ Compact automation equipment with limited side space (desktop dispensers, small inspection machines)
▶ High-density multi-axis manipulators requiring space-saving layouts
▶ Packaging machinery with linear flow paths and tight installation positions
Why Choose This Machine
the Embedded Linear Guide Belt Drive Crawler-Type Linear Module FL is purpose-built for front-mounted layout requirements. Every unit undergoes full-cycle performance testing before delivery, ensuring consistent precision and reliability. It supports quick customization and technical support, offering a cost-effective solution for space-constrained automation projects.
Part of Your Smart Factory
The FL-Spec Crawler Linear Guide with Internal Belt Drive is fully compatible with mainstream PLC systems and industrial communication protocols, seamlessly integrating into smart production lines. It supports multi-axis linkage and digital control, helping you optimize equipment layout, improve production efficiency, and support factory automation upgrades.
FAQ(Frequently Asked Questions)
Q: Do you provide 2D and 3D drawings for FL Crawler-Type Belt Actuated Linear Guide with Embedded Drive?
A: Yes, we offer complete 2D drawings and 3D models for free to help your design and assembly work.
Q: How long is the service life of this module?
A: Under normal working conditions, its service life can reach more than 8000 working hours, with stable performance.
Q: Can I mix this model with other series in my production line?
A: Yes, Belt-Actuated Crawler Linear Guide, FL Embedded Type has unified installation interface and standard signal interface, which can be freely combined with other linear modules.
