Product Introduction
The Left-Angle Toothed Belt Driven Linear Motion Unit is an industrial-grade high-speed left back-mounted belt-driven linear module. Designed for left-space-restricted automation setups, dual-axis symmetric gantries and left-aligned production lines, it delivers a peak speed of 6250mm/s via 125mm large lead design, while maintaining ±0.08mm repeat positioning accuracy and 20kg rated horizontal load. Its back-mounted structure eliminates front/side installation interference, and it is fully compatible with the right-mounted model for plug-and-play synchronous operation, making it an ideal high-speed actuator for high-efficiency automation production lines.
Key Benefits
▶ Left-specific back-mounted layout: Optimized for left-side back installation, perfectly solves left space interference, no need for custom adapter plates
▶ Mirror-matched synchronous design: Fully consistent parameters with the right-mounted model, no extra debugging required for dual-axis synchronous operation
▶ High rigidity anti-eccentric load structure: Equipped with EGH15CA high-precision linear guide, stable performance under 20kg rated load for a long time
Technical Specifications
|
Module Model |
Left-Angle Toothed Belt Driven Linear Motion Unit |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.08mm |
||
|
Lead |
125mm |
||
|
Rated Load (Horizontal, KG) |
20kg |
||
|
Rated Load (Vertical, KG) |
Not Applicable |
||
|
Maximum Speed |
6250mm/s |
||
|
AC Motor Configuration |
50W / 200W / 400W |
||
|
Timing Belt |
5M-20 |
||
|
Linear Guide Brand / Model |
EGH15CA |
||
|
Timing Pulley Model |
5M-25-21 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Not Applicable |
||
|

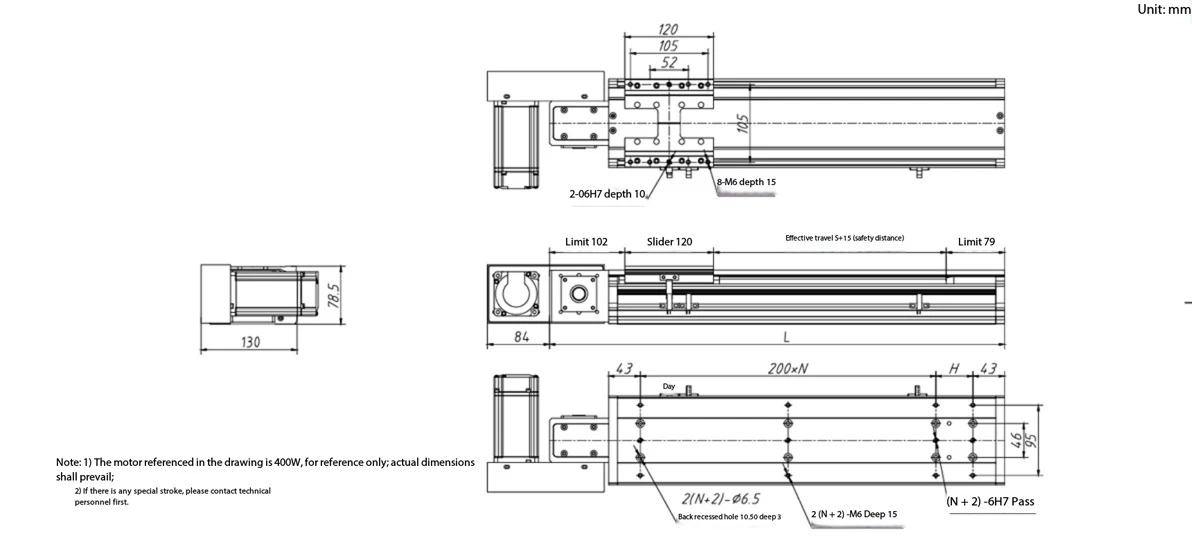

Effective Stroke (S, mm) |
L (mm) |
N |
H (mm) |
|
100 |
416 |
1 |
50 |
|
150 |
466 |
1 |
100 |
|
200 |
516 |
1 |
150 |
|
250 |
566 |
1 |
200 |
|
300 |
616 |
2 |
50 |
|
350 |
666 |
2 |
100 |
|
400 |
716 |
2 |
150 |
|
450 |
766 |
2 |
200 |
|
500 |
816 |
3 |
50 |
|
550 |
866 |
3 |
100 |
|
600 |
916 |
3 |
150 |
|
650 |
966 |
3 |
200 |
|
700 |
1016 |
4 |
50 |
|
750 |
1066 |
4 |
100 |
|
800 |
1116 |
4 |
150 |
|
850 |
1166 |
4 |
200 |
|
900 |
1216 |
5 |
50 |
|
950 |
1266 |
5 |
100 |
|
1000 |
1316 |
5 |
150 |
Applications & Components
▶ Left drive unit of dual-axis symmetric gantry systems and paired multi-axis manipulators
▶ Left-oriented desktop dispensing, sorting and visual inspection equipment in 3C electronics industry
▶ Left-layout packaging machinery for food, pharmaceutical and daily chemical industries
Why Choose This Machine

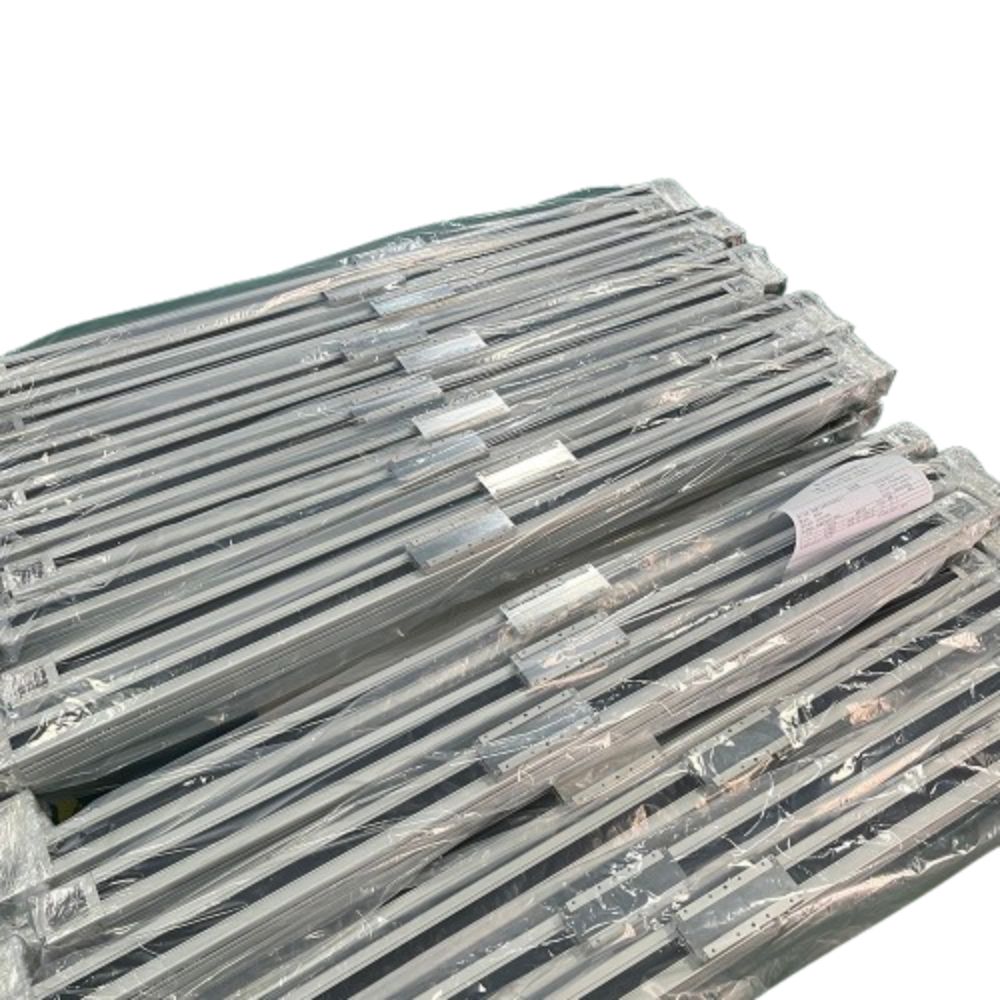

The Left-Side Mounted Belt-Driven Linear Motion Assembly breaks the industry pain point that "left-mounted modules need separate customization", and creates a standardized off-the-shelf solution for left back-mounted scenarios. It is fully mass-produced with the right-mounted model, with 100-1000mm full stroke models in stock all year round, which can be delivered in the same batch as the right-mounted model, avoiding the long cycle of separate customization.
Part of Your Smart Factory
The Left-Angle Toothed Belt-Driven Linear Motion Module is fully compatible with mainstream PLC control systems such as Siemens, Mitsubishi and Delta, Modbus bus communication, and can realize high-precision synchronous linkage with the right-mounted model without secondary debugging. It can be seamlessly connected to MES and SCADA systems, supports real-time upload of operating status and position data, and helps you build a full-process traceable digital production system. Its left-oriented back-mounted layout perfectly adapts to the standardized wiring specifications of intelligent production lines, and can be quickly integrated with manipulators, vision systems and conveyor lines, fully empowering the intelligent upgrade of your production line.
FAQ(Frequently Asked Questions)
Q: Are the wearing parts of Left-Configured Timing Belt Actuated Linear Motion Unit interchangeable with the right-mounted model?
A: Yes. All wearing parts are 100% interchangeable with the Left-Configured Timing Belt Actuated Linear Motion Unit, greatly reducing your spare parts inventory and maintenance costs.
Q: Can this module be adapted to other brands of motors besides the standard configuration?
A: Yes. It supports customized adaptation of mainstream brand motors, perfectly matching your existing control system.
Q: What is the warranty policy of the Left-Angle Toothed Belt Driven Linear Motion Unit?
A: We provide a 12-month standard warranty for non-human quality defects, with 24-hour online technical support during the period.
