Product Introduction

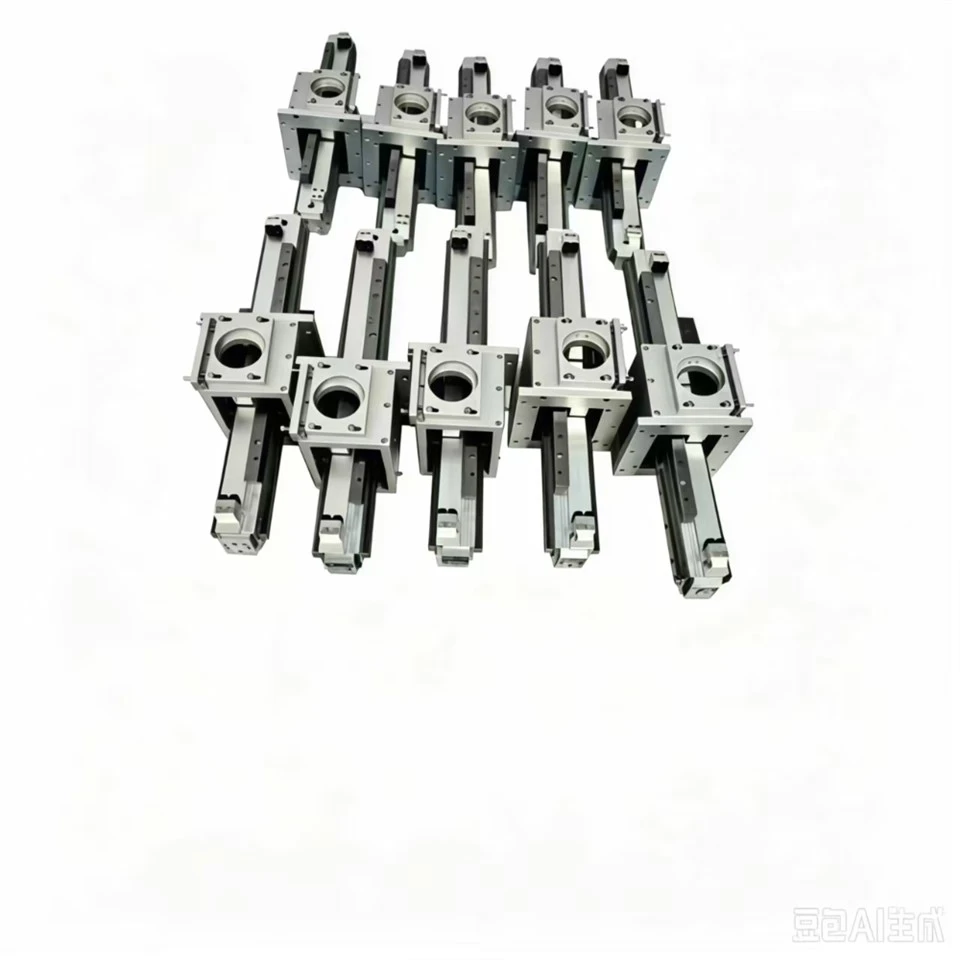

Left-Angle Toothed Synchronous Belt Linear Guide Drive Unit is a powerful linear ball screw module that is completely closed, offering maximum rigidity and protection against any form of dirt in the working environment. The module uses a specially designed left-sided motor arrangement that works in conjunction with a fully sealed protective shield. The ball screw linear module utilizes a large aluminum alloy section with a diameter of 135mm along with a pair of EGH15CA linear guides to ensure smooth movement down to ±0.01mm accuracy.
Key Benefits
▶ Sealed Dustproof Housing: The sealed housing keeps out dust particles, fragments, and other foreign matter, increasing durability in challenging conditions.
▶ Motor on the Right Side: Ideal for machinery in which the left side is meant for control and maintenance purposes.
▶ Precise & Stable Operation: The high precision of ±0.01mm, along with sturdy construction, ensures reliable performance in accurate operations.
Technical Specifications
|
Model |
Left-Angle Toothed Synchronous Belt Linear Guide Drive Unit |
|||
|
Stroke (S) |
mm |
|||
|
Repeat Positioning Accuracy |
±0.01 / ±0.02 mm |
|||
|
Lead |
5 / 10 / 20 mm |
|||
|
Max. Horizontal Load (kg) |
70 / 47 / 24 |
|||
|
Max. Vertical Load (kg) |
17 / 12 / 6 |
|||
|
Max. Speed |
250 / 500 / 1000 mm/s |
|||
|
AC Motor Configuration |
200W / 400W |
|||
|
Ball Screw Diameter |
Ø16 / Ø20 |
|||
|
Linear Guide Model |
EGH15CA |
|||
|
Coupling Model |
P40-42-10-Motor Shaft |
|||
|
External Sensor |
SX572NPN |
|||
|

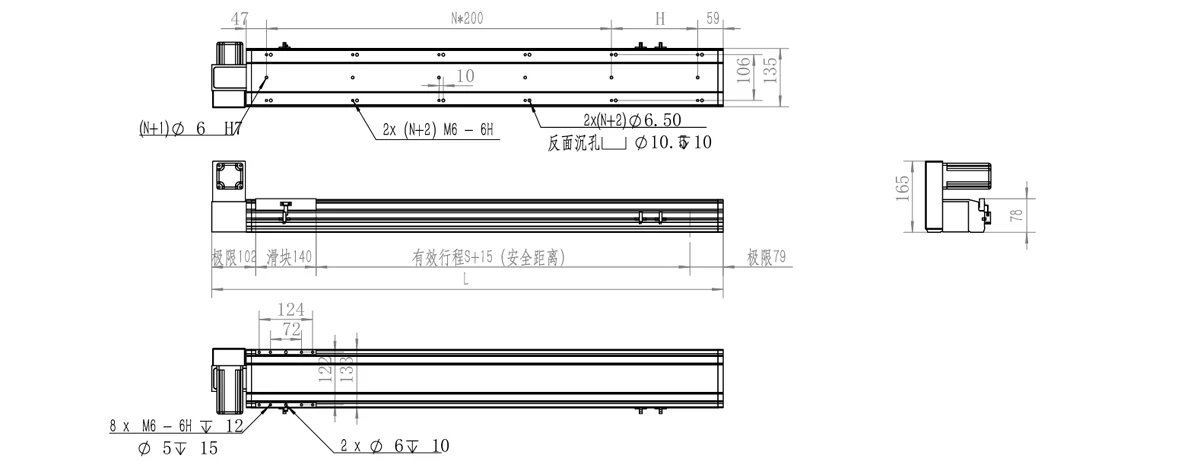

Effective Stroke (mm) |
L(mm) |
N |
H(mm) |
|
|
100 |
436 |
1 |
50 |
|
|
150 |
486 |
1 |
100 |
|
|
200 |
536 |
1 |
150 |
|
|
250 |
586 |
1 |
200 |
|
|
300 |
636 |
2 |
50 |
|
|
350 |
686 |
2 |
100 |
|
|
400 |
736 |
2 |
150 |
|
|
450 |
786 |
2 |
200 |
|
|
500 |
836 |
3 |
50 |
|
|
550 |
886 |
3 |
100 |
|
|
600 |
936 |
3 |
150 |
|
|
650 |
986 |
3 |
200 |
|
|
700 |
1036 |
4 |
50 |
|
|
750 |
1086 |
4 |
100 |
|
|
800 |
1136 |
4 |
150 |
|
|
850 |
1186 |
4 |
200 |
|
|
900 |
1236 |
5 |
50 |
|
|
950 |
1286 |
5 |
100 |
|
|
1000 |
1336 |
5 |
150 |
|

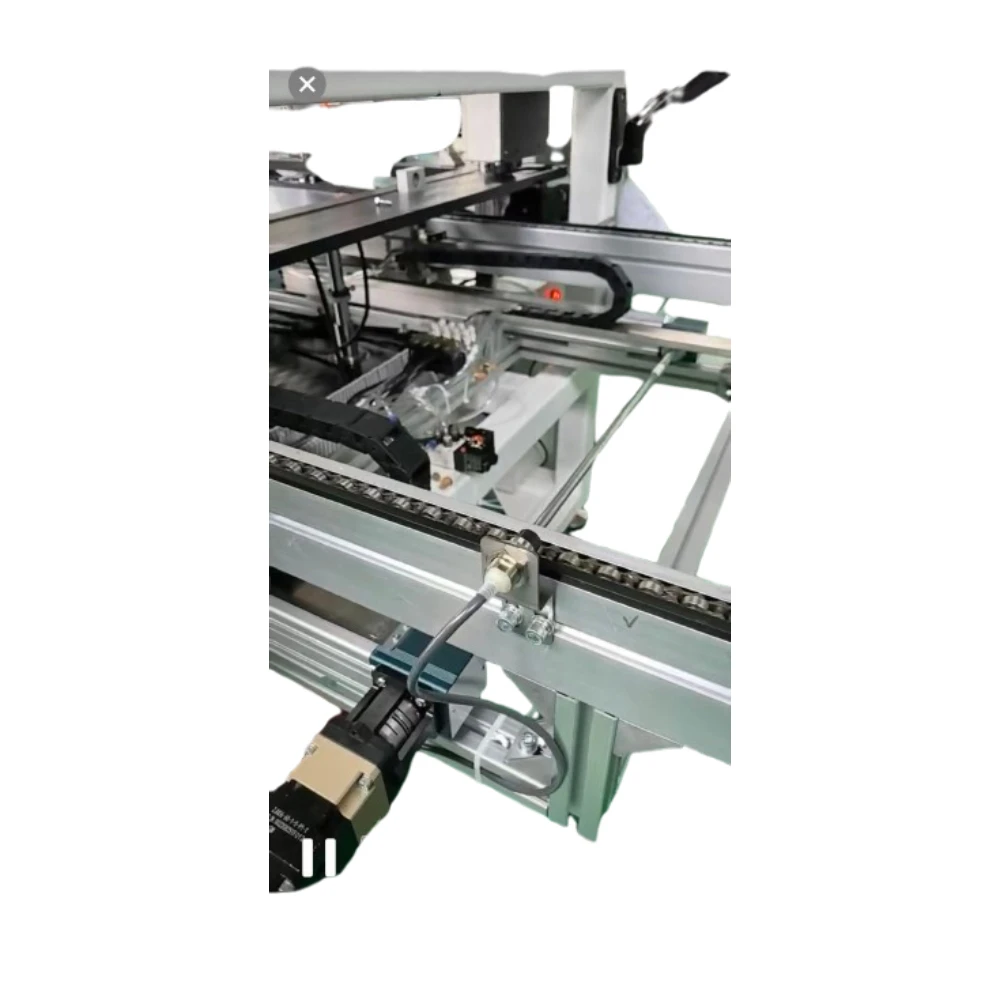

Applications & Components
▶ Automotive Parts Processing: High-precision positioning systems for engine cylinder head drilling, gearbox housing milling, and automated part sorting lines.
▶ Woodworking & Acrylic Processing: Heavy-duty cutting and carving mechanisms for furniture production, acrylic letter manufacturing, and sign making.
▶ Food & Beverage Industry: Hygienic-grade positioning solutions for automated packaging, filling, and sorting systems resistant to moisture and food debris.
Why Choose This Machine
The Left-Angle Synchronous Belt Driven Linear Motion Module sets itself apart with its specially designed left motor that fits well with machinery where the right side is dedicated to maintenance, control panel placement, or additional machinery.
Part of Your Smart Factory
Including the Left-Mounted Toothed Timing Belt Linear Rail Assembly in your smart manufacturing network turns complicated automation problems into dependable solutions. The modularity of the unit makes it easily replaceable and scalable, while its sealed housing lowers maintenance expenses due to lower rates of contamination-caused malfunctions.
FAQ(Frequently Asked Questions)
Q: Is it possible to mount the sensor internally if necessary?
A: Yes, the Left-Angle Toothed Synchronous Belt Linear Guide Drive Unit has been manufactured in such a way that its sensor can be mounted both externally and internally.
Q: What measures are taken to prevent backlash in the ball screw?
A: The module utilizes a preloaded ball screw nut assembly and precision ground screws, which effectively eliminate backlash and ensure smooth, accurate motion under all load conditions.
Q: How often does the ball screw and guide need lubrication?
A: Under normal working conditions, lubricate every 3–6 months. The fully enclosed design reduces dust entry, so the lubrication cycle is longer than open modules.
