Product Introduction

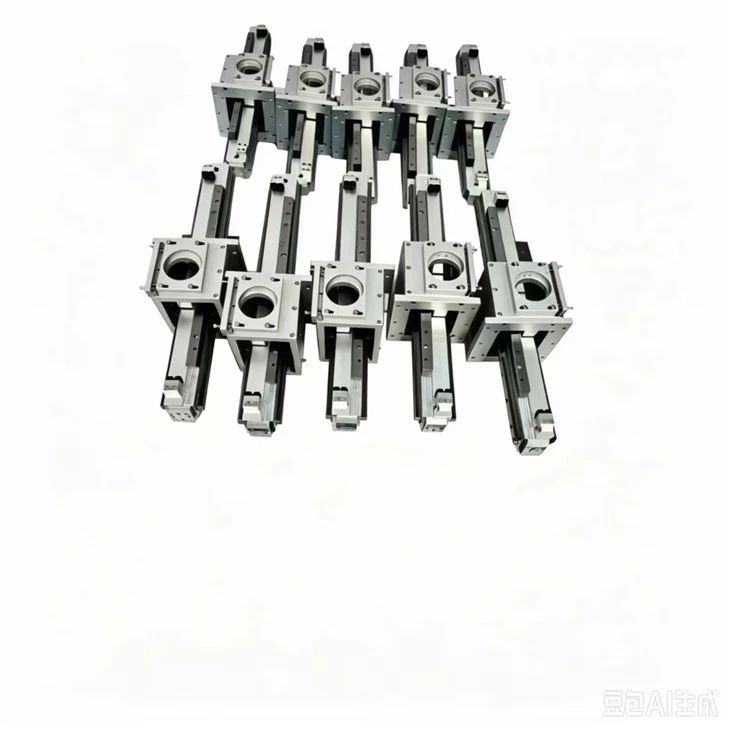

This Left-Angle Timing Belt Driven Linear Rail Stage adopts unique left angle structural layout, matched with high strength timing belt and precision linear rail. It adopts integral aluminum alloy base for overall firmness and deformation resistance. The timing belt driving method realizes high speed linear movement, with smooth operation and low noise. The special left angle design saves installation space greatly, adapts to narrow equipment layout and compact automation production line. It can be matched with stepper motor and servo motor freely, suitable for various industrial precision positioning, material handling and automatic feeding and discharging scenarios, and is a common core linear motion module in automation equipment.
Key Benefits
▶ Modular integrated design, easy installation, disassembly and daily maintenance.
▶ Low noise and low vibration during operation, suitable for long-term continuous working condition.
▶ Integral aluminum alloy body features light weight, high rigidity and anti-deformation performance.
Technical Specifications
|
Model |
Left-Angle Timing Belt Driven Linear Rail Stage |
||
|
Repeat Positioning Accuracy |
±0.08 |
||
|
Lead |
100 |
||
|
Horizontal Load |
15 KG |
||
|
Vertical Load |
N/A |
||
|
Max Speed |
5000 mm/s |
||
|
Motor |
100W/200W/400W |
||
|
Linear Guide |
EGW15CA |
||
|
Timing Belt |
5M-15 |
||
|
Timing Pulley |
5M-20-17 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
N/A |
||
|

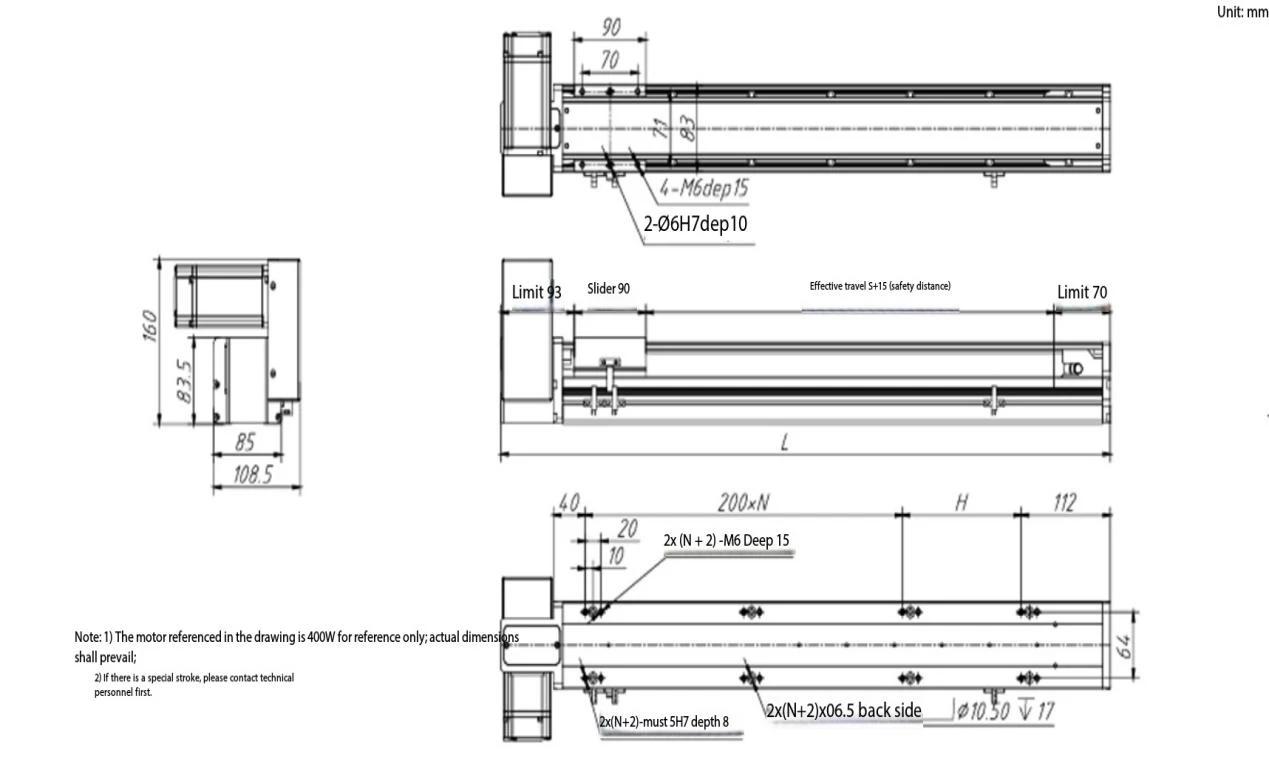

Effective Stroke(S) |
L |
N |
H |
|
100 |
368 |
0 |
150 |
|
150 |
418 |
0 |
200 |
|
200 |
468 |
1 |
50 |
|
250 |
518 |
1 |
100 |
|
300 |
568 |
1 |
150 |
|
350 |
618 |
1 |
200 |
|
400 |
668 |
2 |
50 |
|
450 |
718 |
2 |
100 |
|
500 |
768 |
2 |
150 |
|
550 |
818 |
2 |
200 |
|
600 |
868 |
3 |
50 |
|
650 |
918 |
3 |
100 |
|
700 |
968 |
3 |
150 |
|
750 |
1018 |
3 |
200 |
|
800 |
1068 |
4 |
50 |
|
850 |
1118 |
4 |
100 |
|
900 |
1168 |
4 |
150 |
|
950 |
1218 |
4 |
200 |
|
1000 |
1268 |
5 |
50 |
Applications & Components

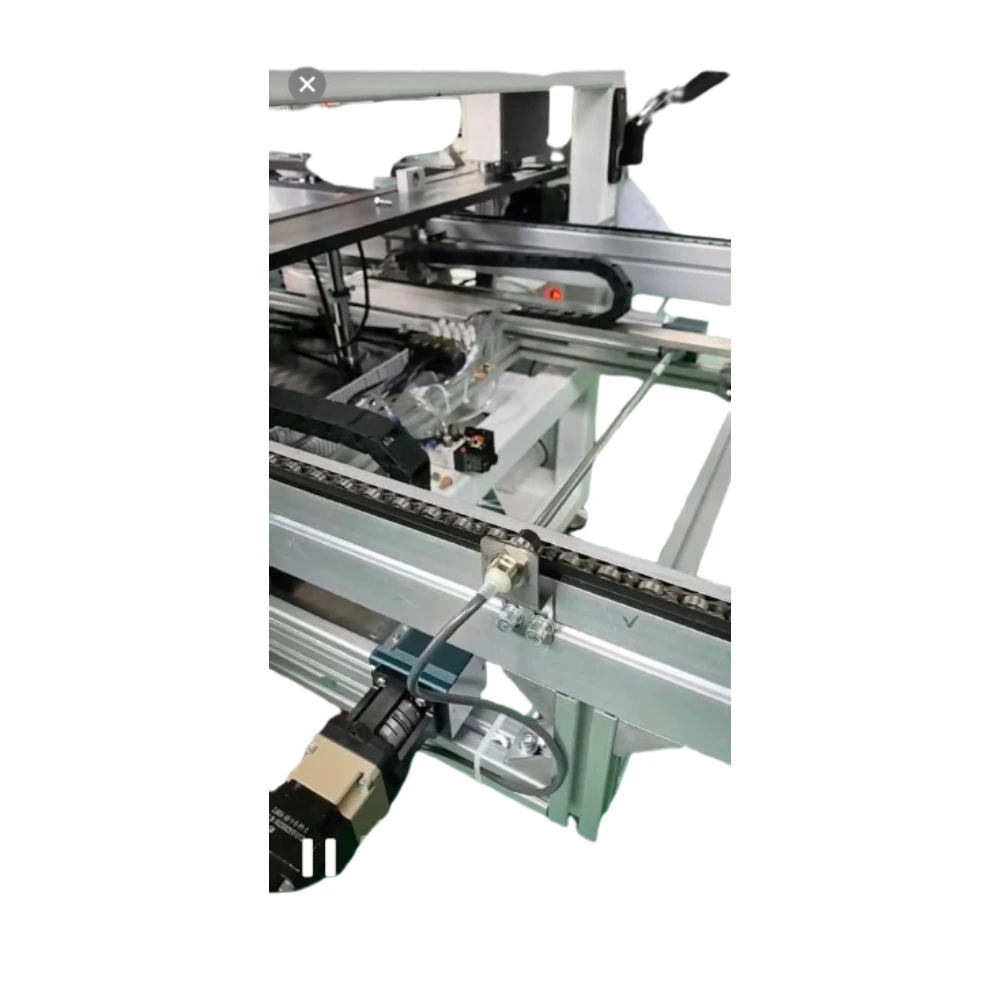

▶ Electronic automation assembly and automatic dispensing labeling equipment.
▶ Logistics sorting conveying and automated production line linear transmission.
▶ Visual inspection camera reciprocating sliding and precision testing instrument platform.
Why Choose This Machine
Optimized left-angle layout saves more space than ordinary linear modules; premium timing belt and linear rail ensure stable performance and long service life; balance high speed and high precision at the same time; standard mounting holes for easy installation without complicated debugging; support non-standard stroke and structure customization.
Part of Your Smart Factory
This Left-Angle Timing Belt Driven Linear Rail Stage features high speed, stable operation and space-saving advantage. It can cooperate with all kinds of automation equipment to complete linear transmission and precise positioning tasks, upgrade overall automatic production level, and act as an indispensable core motion part of your smart factory.
FAQ(Frequently Asked Questions)
Q: Can we customize the stroke length?
A: Yes, we support various customized stroke lengths according to customer requirements.
Q: What motors are compatible with this linear stage?
A: It can be well matched with stepper motors and servo motors.
Q: What is the main material of the stage?
A: The main body adopts high-strength aluminum alloy material.
