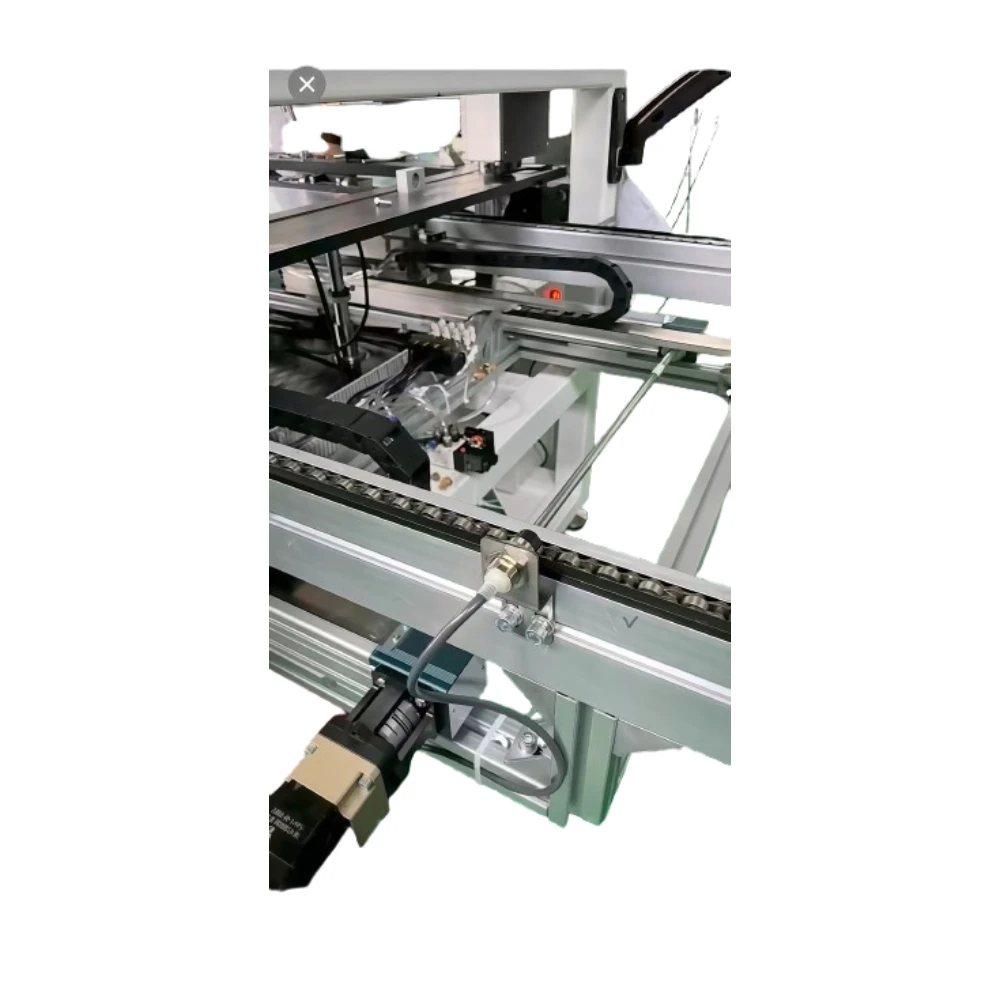

Product Introduction
This Stepper Motor Driven Industrial Timing Pulley Linear Module adopts timing pulley and timing belt transmission structure, matched with precision linear guide rail. Equipped with dedicated stepper motor drive, it delivers stable power output and accurate synchronous transmission. The whole module adopts high strength aluminum alloy frame, light weight and high rigidity, not easy to deform during long time operation. It features smooth movement, low noise and fast running speed, with excellent repeat positioning accuracy. With compact structure and flexible installation, it is widely applied in various industrial automation equipment, ideal for linear reciprocating motion, precise positioning and automatic material conveying tasks.
Key Benefits
▶ Matched with dedicated stepper motor, precise speed control and accurate positioning.
▶ Timing pulley belt drive realizes high speed operation and efficient transmission.
▶Precision linear guide rail ensures smooth movement and strong load capacity.
Technical Specifications
|
Model |
Stepper Motor Driven Industrial Timing Pulley Linear Module |
|||
|
Stroke (S) |
mm |
|||
|
Repeat Positioning Accuracy |
±0.01 / ±0.02 mm |
|||
|
Lead |
5 / 10 / 20 mm |
|||
|
Max. Horizontal Load (kg) |
70 / 47 / 24 |
|||
|
Max. Vertical Load (kg) |
17 / 12 / 6 |
|||
|
Max. Speed |
250 / 500 / 1000 mm/s |
|||
|
AC Motor Configuration |
200W / 400W |
|||
|
Ball Screw Diameter |
Ø16 / Ø20 |
|||
|
Linear Guide Model |
EGH15CA |
|||
|
Coupling Model |
P40-42-10-Motor Shaft |
|||
|
External Sensor |
SX572NPN |
|||
|

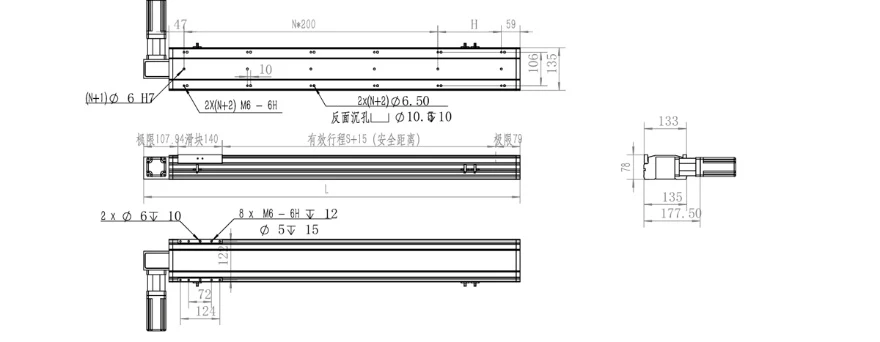

Effective Stroke (mm) |
L(mm) |
N |
H(mm) |
|
|
100 |
436 |
1 |
50 |
|
|
150 |
486 |
1 |
100 |
|
|
200 |
536 |
1 |
150 |
|
|
250 |
586 |
1 |
200 |
|
|
300 |
636 |
2 |
50 |
|
|
350 |
686 |
2 |
100 |
|
|
400 |
736 |
2 |
150 |
|
|
450 |
786 |
2 |
200 |
|
|
500 |
836 |
3 |
50 |
|
|
550 |
886 |
3 |
100 |
|
|
600 |
936 |
3 |
150 |
|
|
650 |
986 |
3 |
200 |
|
|
700 |
1036 |
4 |
50 |
|
|
750 |
1086 |
4 |
100 |
|
|
800 |
1136 |
4 |
150 |
|
|
850 |
1186 |
4 |
200 |
|
|
900 |
1236 |
5 |
50 |
|
|
950 |
1286 |
5 |
100 |
|
|
1000 |
1336 |
5 |
150 |
|
Applications & Components
▶3C electronics automatic assembly, welding and dispensing equipment.
▶ Automated labeling, coding and printing linear moving mechanism.
▶ Logistics automated sorting, handling and conveying production line.
Why Choose This Machine
Professional stepper motor matching design, stable power and accurate control performance. Timing pulley transmission structure with high operating efficiency and no slipping phenomenon. High precision guide rail configuration, ensuring long-term stable running accuracy. Excellent overall rigidity, not easy to deform under long load operation. Standard installation size, convenient for equipment docking and secondary development. Factory direct sales, stable quality and cost-effective with reliable after-sales service.
Part of Your Smart Factory
This Stepper Motor Driven Industrial Timing Pulley Linear Module integrates precise drive, stable transmission and space-saving structure. It can perfectly connect with various automation equipment to complete automatic linear positioning, reciprocating conveying and processing operations. It effectively improves production automation degree and working efficiency, and becomes a reliable and essential core motion component for your intelligent factory layout and upgrading.
FAQ(Frequently Asked Questions)
Q: What type of drive does this linear module adopt?
A: It adopts industrial timing pulley and timing belt driven mode with stepper motor configuration.
Q: What accuracy level can this module achieve?
A: It owns excellent repeat positioning accuracy and runs smoothly without deviation.
Q: What is the advantage of aluminum alloy frame?
A: It is light in weight, high in rigidity, not easy to deform and resistant to corrosion.
