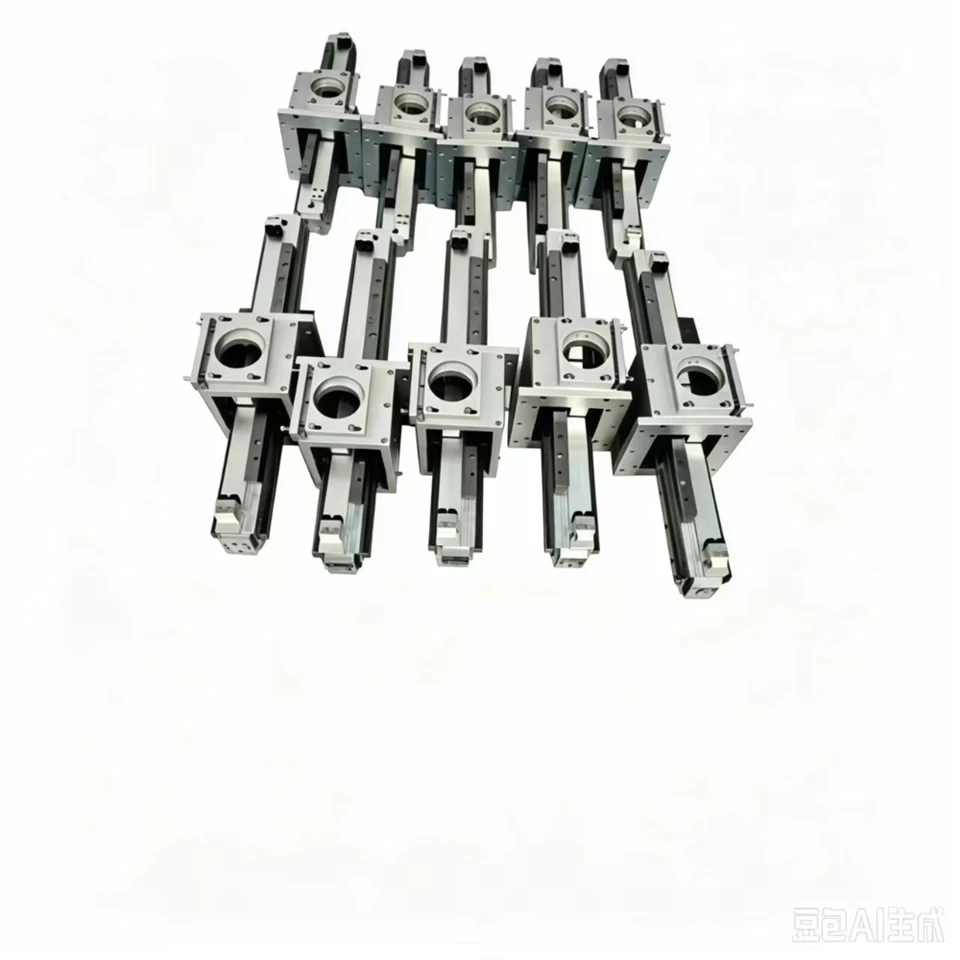

Product Introduction
The FR-Type Toothed Belt Linear Module is a professional linear motion module that integrates a right-side motor layout and a flange mounting base. It is specially designed for automated machines with limited left-side space and fixed installation needs. The whole body adopts high-strength aluminum profile, matched with precision guide rails and wear-resistant synchronous belt, to ensure low noise, stable movement and long service life under high-speed operation.
Key Benefits
▶ Right-side motor layout perfectly matches equipment with limited left space, avoiding interference during installation and operation.
▶ Flange mounting structure provides stronger rigidity and more stable fixation, suitable for various installation postures.
▶ High-speed belt drive system ensures fast response and short beat time, greatly improving overall production efficiency.

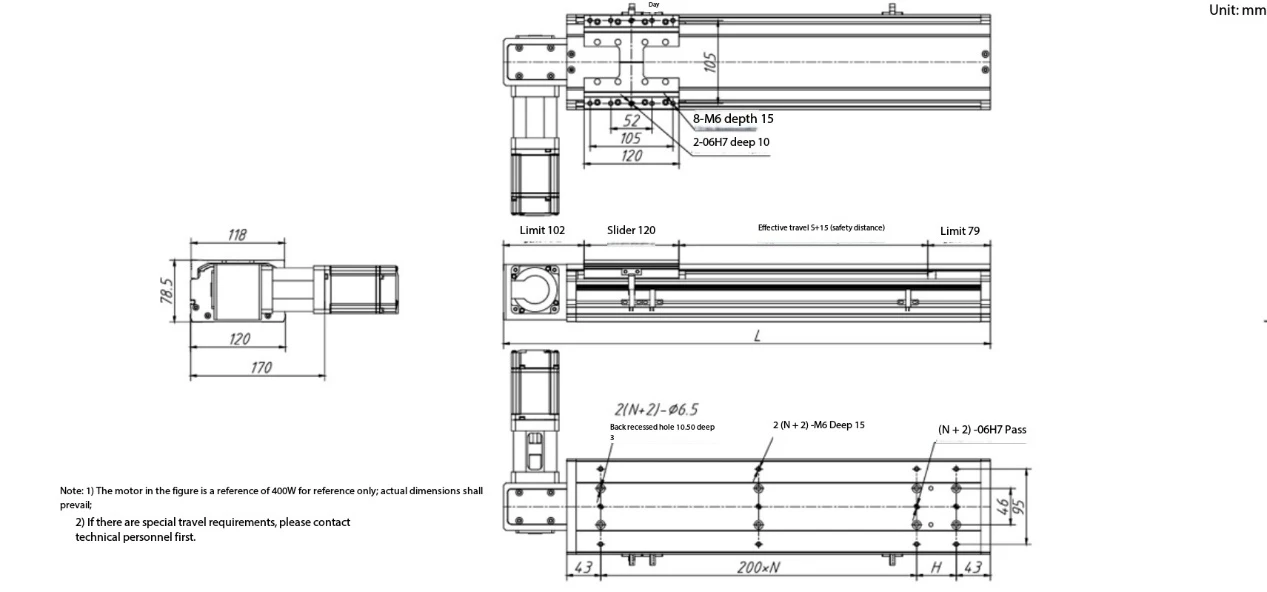

Technical Specifications
|
Model |
FR-Type Toothed Belt Linear Module |
|||
|
Stroke(S) |
mm |
|||
|
Repeat Positioning Accuracy(C/P) |
±0.08 mm |
|||
|
Lead |
125 mm |
|||
|
Max. Horizontal Load |
20 kg |
|||
|
Max. Speed |
6250 mm/s |
|||
|
AC Motor Configuration |
57/200W/400W |
|||
|
Timing Belt |
5M-20 |
|||
|
Linear Guide Model |
EGH15CA |
|||
|
Timing Pulley Model |
5M-25-21 |
|||
|
External Sensor |
SX672NPN |
|||
|
Effective Stroke(mm) |
L(mm) |
N |
H(mm) |
|
|
100 |
416 |
1 |
50 |
|
|
150 |
466 |
1 |
100 |
|
|
200 |
516 |
1 |
150 |
|
|
250 |
566 |
1 |
200 |
|
|
300 |
616 |
2 |
50 |
|
|
350 |
666 |
2 |
100 |
|
|
400 |
716 |
2 |
150 |
|
|
450 |
766 |
2 |
200 |
|
|
500 |
816 |
3 |
50 |
|
|
550 |
866 |
3 |
100 |
|
|
600 |
916 |
3 |
150 |
|
|
650 |
966 |
3 |
200 |
|
|
700 |
1016 |
4 |
50 |
|
|
750 |
1066 |
4 |
100 |
|
|
800 |
1116 |
4 |
150 |
|
|
850 |
1166 |
4 |
200 |
|
|
900 |
1216 |
5 |
50 |
|
|
950 |
1266 |
5 |
100 |
|
|
1000 |
1316 |
5 |
150 |
|

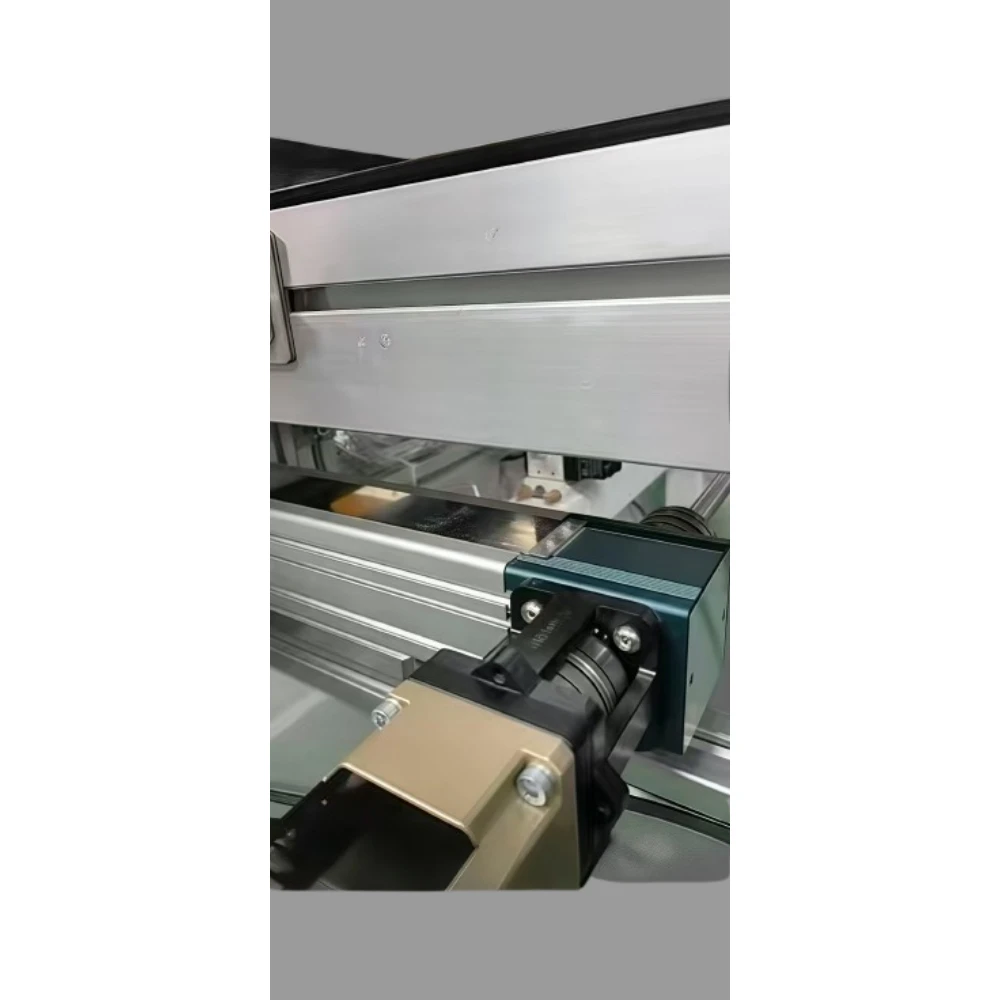

Applications & Components
▶ Special automation equipment with limited installation space on the left side.
▶ Laser marking, cutting and positioning equipment with fixed mounting requirements.
▶ Automatic feeding, handling and sorting systems in assembly lines.
Why Choose This Machine
This module adopts a right-side motor structure to match special equipment layout and avoid space interference. The flange base makes installation more stable and convenient, suitable for various installation angles. High-speed transmission improves production efficiency significantly, while stable precision ensures product processing consistency. Industrial-grade materials and optimized structure reduce failure rate and maintenance frequency. It supports multiple stroke options and is highly compatible with different motors, bringing strong adaptability to various automated projects.
Part of Your Smart Factory
As a key execution component in intelligent production lines, the FR-Type Toothed Belt Linear Module provides stable and efficient linear motion for automated systems. Its reasonable structure design helps optimize equipment layout, improve production continuity, and reduce manual intervention. It can be integrated with various intelligent devices to form a complete automated production unit, helping enterprises build more efficient and intelligent manufacturing systems.
