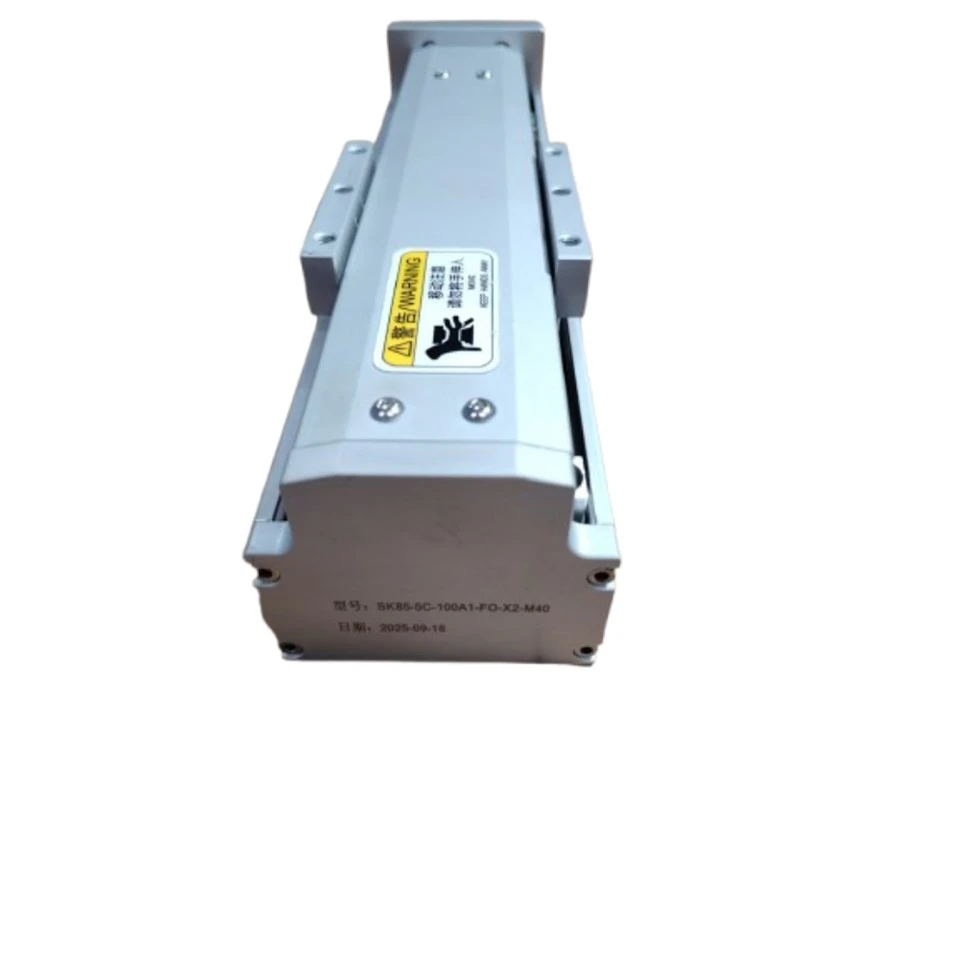

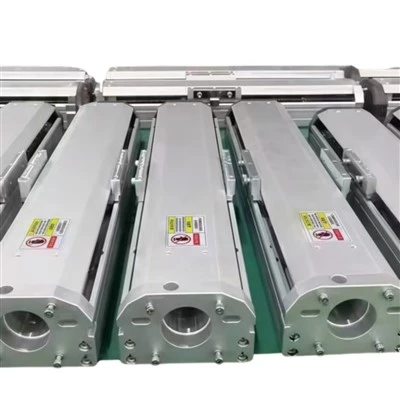

Product Introduction
The Fixed Ball Screw Linear Stage is a versatile multi-scenario linear motion module designed to meet the demands of diverse industrial automation applications. It combines reliable precision, flexible performance options, and easy integration, making it suitable for everything from standard assembly lines to custom processing equipment. With a rigid alloy frame, premium ball screw, and linear guide, it delivers consistent, stable motion under varying loads and speeds. Compatible with 200W/400W AC motors and offering 100–1000mm stroke options, it is the ideal choice for projects requiring adaptability and reliability.
Key Benefits
▶High Versatility
▶Reliable Precision & Stability
▶Proven Durability
Technical Specifications
|
Module Model |
Fixed Ball Screw Linear Stage |
||
|
Basic Specifications |
XXXXX |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Horizontal Load Capacity |
70 / 47 / 24 kg |
||
|
Vertical Load Capacity |
17 / 12 / 6 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
φ16 / φ20 mm |
||
|
Linear Guide Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX572 NPN |
||
|
Built-in Sensor |
- |
||
|
Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
318 |
1 |
0 |
|
150 |
368 |
1 |
50 |
|
200 |
418 |
1 |
100 |
|
250 |
468 |
1 |
150 |
|
300 |
518 |
1 |
200 |
|
350 |
568 |
2 |
50 |
|
400 |
618 |
2 |
100 |
|
450 |
668 |
2 |
150 |
|
500 |
718 |
2 |
200 |
|
550 |
768 |
3 |
50 |
|
600 |
818 |
3 |
100 |
|
650 |
868 |
3 |
150 |
|
700 |
918 |
3 |
200 |
|
750 |
968 |
4 |
50 |
|
800 |
1018 |
4 |
100 |
|
850 |
1068 |
4 |
150 |
|
900 |
1118 |
4 |
200 |
|
950 |
1168 |
5 |
50 |
|
1000 |
1218 |
5 |
100 |
Applications & Components
▶General automation systems
▶Electronic component processing equipment
▶Packaging machinery
Why Choose This Machine
Tailored for general industrial automation demands, the Fixed Ball Screw Linear Stage linear module balances practical performance and cost efficiency. It owns steady running texture, rich specification coverage and universal installation compatibility. With strict factory calibration and mature assembly craft, it lowers equipment matching difficulty and becomes a worry-free pick for standard and customized automated production lines.
Part of Your Smart Factory
Tailored for general industrial automation demands, the Fixed Ball Screw Linear Stage linear module balances practical performance and cost efficiency. It owns steady running texture, rich specification coverage and universal installation compatibility. With strict factory calibration and mature assembly craft, it lowers equipment matching difficulty and becomes a worry-free pick for standard and customized automated production lines.
FAQ(Frequently Asked Questions)
Q: Does fixed-type Ball Screw Linear Stage support reversible operation for reciprocating workflow?
A: Absolutely. The matched drive structure supports smooth forward and reverse switching, suitable for repeated reciprocating positioning and cyclic workflow arrangement.
Q: What advantage does it have in factory batch procurement?
A: Unified production standard and consistent dimensional tolerance ensure interchangeability among batches, convenient for later stock spare parts and unified equipment maintenance.
Q: Will ambient temperature affect its positioning accuracy?
A: Adopting low thermal deformation material and structural optimization, it keeps good stability under normal indoor temperature fluctuation, with no obvious accuracy deviation.
