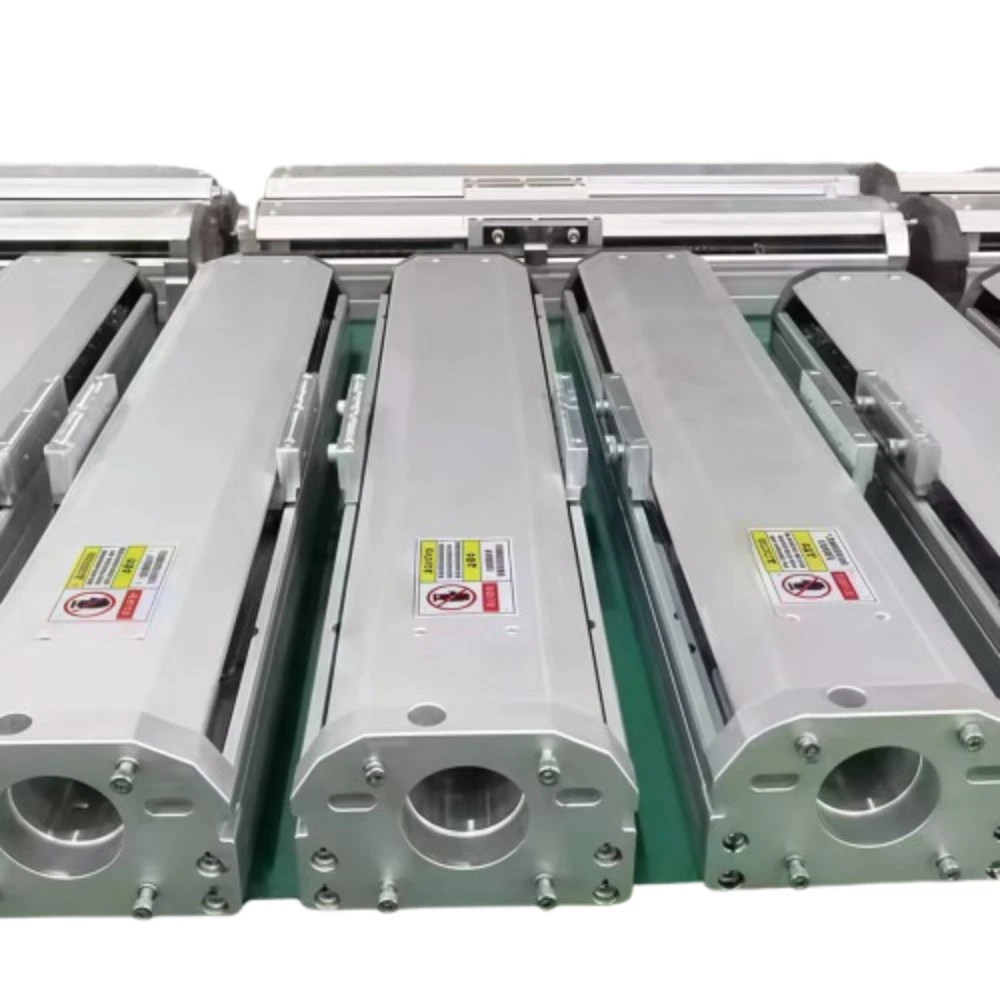

Product Introduction
The Open-style Ball Screw Linear Stage is a heavy-duty wide-base linear sliding table engineered for medium-to-heavy industrial automation scenarios, built with an integrated 170mm widened alloy chassis to boost overall structural rigidity and minimize lateral swing and micro displacement during long-stroke operation. Fitted with high-precision transmission parts and high-rigidity guide rails, it delivers steady positioning performance and strong environmental adaptability, while supporting conventional 200W/400W motor assembly and full-stroke specification options to perfectly match automated inspection, material handling and workpiece assembly machinery.
Key Benefits
▶ Universal Fast Assembly Design
▶ Strong Structural Anti-Fatigue Property
▶ Diversified Specification Matching
Technical Specifications
|
Module Model |
Open-style Ball Screw Linear Stage |
||
|
Basic Specifications |
XXXXX |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Horizontal Load Capacity |
70 / 47 / 24 kg |
||
|
Vertical Load Capacity |
17 / 12 / 6 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
φ16 / φ20 mm |
||
|
Linear Guide Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX572 NPN |
||
|
Built-in Sensor |
- |
||
|

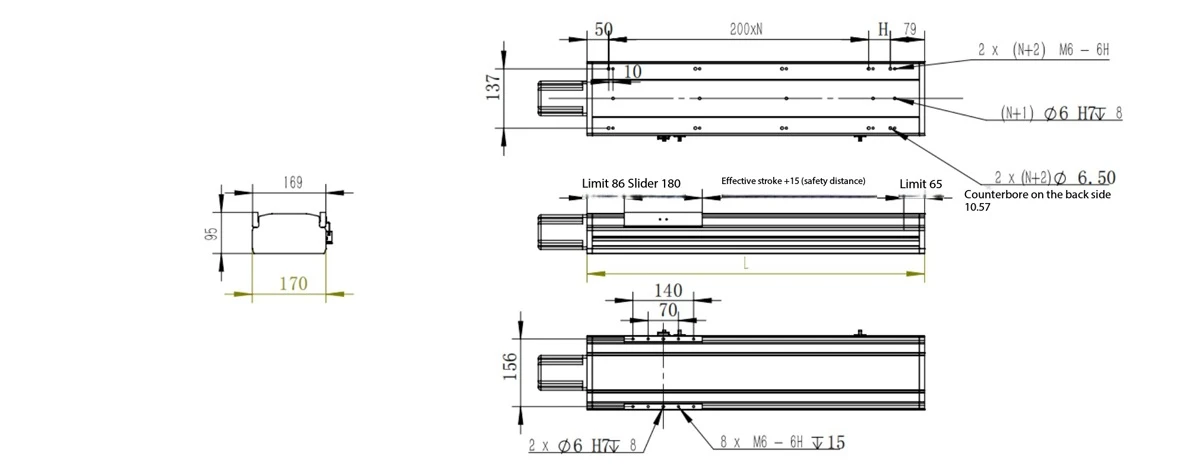

Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
429 |
1 |
50 |
|
150 |
479 |
1 |
100 |
|
200 |
529 |
1 |
150 |
|
250 |
579 |
1 |
200 |
|
300 |
629 |
2 |
50 |
|
350 |
679 |
2 |
100 |
|
400 |
729 |
2 |
150 |
|
450 |
779 |
2 |
200 |
|
500 |
829 |
3 |
50 |
|
550 |
879 |
3 |
100 |
|
600 |
929 |
3 |
150 |
|
650 |
979 |
3 |
200 |
|
700 |
1029 |
4 |
50 |
|
750 |
1079 |
4 |
100 |
|
800 |
1129 |
4 |
150 |
|
850 |
1179 |
4 |
200 |
|
900 |
1229 |
5 |
50 |
|
950 |
1279 |
5 |
100 |
|
1000 |
1329 |
5 |
150 |
Applications & Components
▶Automated production lines & conveying equipment
▶Automated workpiece handling
▶Small and medium assembly lines
Why Choose This Machine
Developed for medium and heavy industrial automation matching, the Open-style Ball Screw Linear Stage adopts a reinforced widened chassis structure with excellent shock resistance and anti-deformation performance. It runs steadily with low noise, comes with abundant specification options and versatile mounting methods, serving as a cost-effective and reliable choice for both standard and customized automated production lines.
Part of Your Smart Factory
As a core supporting component for factory intelligent upgrading, Open-frame Ball Screw Linear Stage wide-base module relies on solid structural design to stabilize daily cyclic production. It matches modular factory layout planning and helps enterprises realize standardized and efficient intelligent production.
FAQ(Frequently Asked Questions)
Q: What load range is Unenclosed Ball Screw Motion Stage mainly applicable to?
A: It is mainly designed for medium load working conditions, also compatible with light load daily use, with strong adaptability to diverse production demands.
Q: Is it convenient for later model replacement and equipment renewal?
A: Overall dimension and mounting hole spacing follow unified industrial standards, easy for batch replacement and equipment upgrading.
Q: Is this module suitable for electronic automation precision occasions?
A: Absolutely. With matched high-precision screw and guide rail plus stable body structure, it maintains consistent positioning accuracy for long-term precision testing and assembly work.
