Product Introduction
Standard Ball Screw Driven Linear Motion Stage is a high-precision ball screw linear module built for industrial automation scenarios. With an integrated aluminum alloy body, precision transmission structure and high-rigidity linear guide, it delivers micron-level positioning, full stroke coverage from 50mm to 1000mm, and a stable, efficient linear transmission solution for various automation equipment.
Key Benefits
▶ Ultra-high Precision Transmission
▶ High Load & Rigidity
▶ Flexible Customization
▶ Easy Installation & Maintenance-free
Technical Specifications
|
Module Model |
Standard Ball Screw Driven Linear Motion Stage |
||
|
Repeat Positioning Accuracy |
±0.02/±0.01 |
||
|
Lead |
5/10/20 |
||
|
Horizontal Load |
40/30/15 |
||
|
Vertical Load |
11/9/4 |
||
|
Max Speed |
250/500/1000 |
||
|
400W Motor |
400W |
||
|
Ball Screw |
Φ16 |
||
|
Linear Guide |
EGW15CA |
||
|
Coupling |
P40-42-10 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
- |
||
|

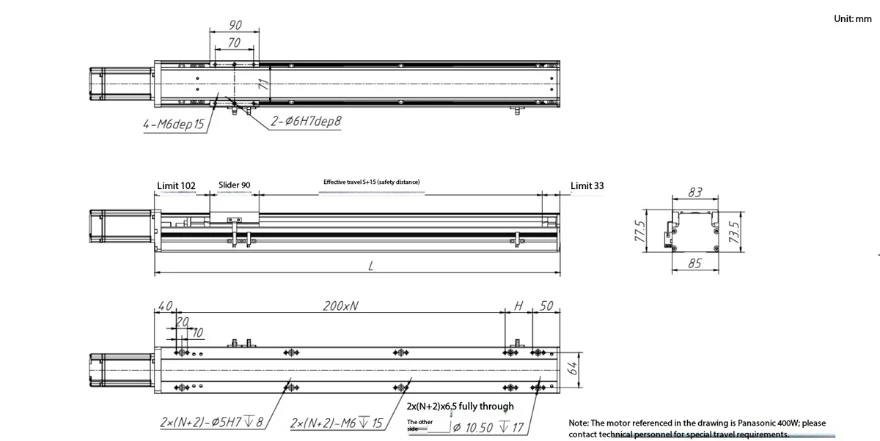

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
50 |
290 |
0 |
200 |
|
100 |
340 |
1 |
50 |
|
150 |
390 |
1 |
100 |
|
200 |
440 |
1 |
150 |
|
250 |
490 |
1 |
200 |
|
300 |
540 |
2 |
50 |
|
350 |
590 |
2 |
100 |
|
400 |
640 |
2 |
150 |
|
450 |
690 |
2 |
200 |
|
500 |
740 |
3 |
50 |
|
550 |
790 |
3 |
100 |
|
600 |
840 |
3 |
150 |
|
650 |
890 |
3 |
200 |
|
700 |
940 |
4 |
50 |
|
750 |
990 |
4 |
100 |
|
800 |
1040 |
4 |
150 |
|
850 |
1090 |
4 |
200 |
|
900 |
1140 |
5 |
50 |
|
950 |
1190 |
5 |
100 |
|
1000 |
1240 |
5 |
150 |
Applications & Components
▶ 3C Electronics: Component placement, PCB inspection, chip programming equipment
▶ New Energy: Lithium battery cell assembly, photovoltaic module inspection, battery PACK production line
▶ Medical Equipment: Medical reagent dispensing, precision testing instruments, rehabilitation physiotherapy equipment
Why Choose This Machine
Our Standard Ball Screw Driven Linear Motion Stage follows strict full-process quality control standards, passes triple tests of accuracy, load and service life before delivery, and keeps standard specifications in stock for ultra-fast delivery. We provide a 12-month warranty and full-cycle technical support, as well as full-dimensional in-depth non-standard customization, which can perfectly adapt to your exclusive production line and smart factory upgrade needs.
Part of Your Smart Factory
Standard Ball Screw Linear Motion Platform is seamlessly compatible with core smart production line equipment such as PLC control systems, machine vision, and industrial robots. It supports multi-axis linkage control, perfectly adapts to the digital and intelligent upgrade needs of Industry 4.0 automated production lines, and provides a highly reliable core transmission unit for your smart factory.
FAQ(Frequently Asked Questions)
Q: Do you have Standard Ball Screw-Driven Linear Actuator in stock? How fast can you deliver?
A: Regular specifications are in stock, shipped within 3 working days after ordering; non-standard customized models are delivered in 10-15 working days, expedited available.
Q: Is this module compatible with our existing PLC control system?
A: Fully compatible. It adapts to mainstream PLCs such as Mitsubishi, Siemens, Delta, supports multi-axis linkage, and can connect to most industrial control solutions.
Q: How long is the warranty period? Is it convenient to replace parts later?
A: 12-month whole machine warranty. Core parts are industry general specifications for easy replacement. Lifetime technical support and original parts supply are provided.
