Product Introduction
The Precision-calibrated Ball Screw Motion Slide is a long-stroke, high-rigidity linear motion module purpose-built for applications requiring extended travel ranges without sacrificing precision or stability. Its reinforced alloy frame and optimized ball screw support design minimize deflection and vibration, even at full stroke length. Compatible with 200W/400W AC motors and offering 100–1000mm stroke options, it delivers reliable, consistent performance in long-travel positioning systems, automated material handling, and large-format processing equipment.
Key Benefits
▶Long-Stroke Stability
▶Heavy-Duty Load Capacity
▶Seamless Integration
Technical Specifications
|
Module Model |
Precision-calibrated Ball Screw Motion Slide |
||
|
Basic Specifications |
XXXXX |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Horizontal Load Capacity |
70 / 47 / 24 kg |
||
|
Vertical Load Capacity |
17 / 12 / 6 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
φ16 / φ20 mm |
||
|
Linear Guide Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX572 NPN |
||
|
Built-in Sensor |
- |
||
|

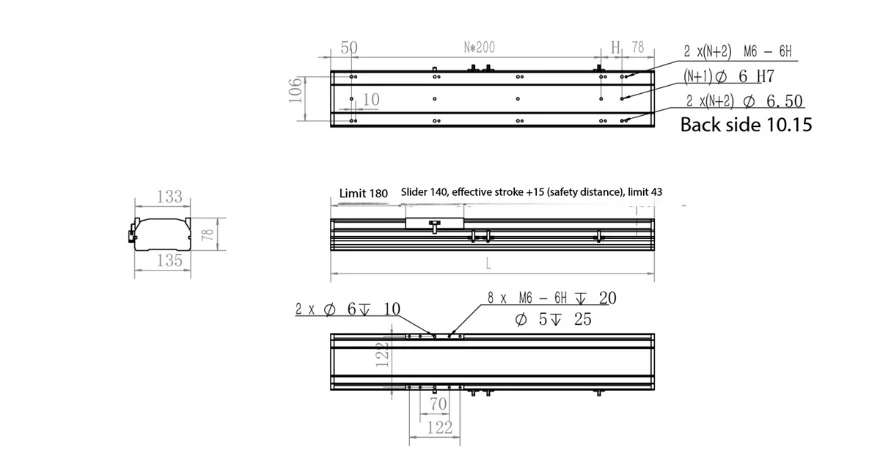

Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
478 |
1 |
150 |
|
150 |
528 |
1 |
200 |
|
200 |
578 |
2 |
50 |
|
250 |
628 |
2 |
100 |
|
300 |
678 |
2 |
150 |
|
350 |
728 |
2 |
200 |
|
400 |
778 |
3 |
50 |
|
450 |
828 |
3 |
100 |
|
500 |
878 |
3 |
150 |
|
550 |
928 |
3 |
200 |
|
600 |
978 |
4 |
50 |
|
650 |
1028 |
4 |
100 |
|
700 |
1078 |
4 |
150 |
|
750 |
1128 |
4 |
200 |
|
800 |
1178 |
5 |
50 |
|
850 |
1228 |
5 |
100 |
|
900 |
1278 |
5 |
150 |
|
950 |
1328 |
5 |
200 |
|
1000 |
1378 |
6 |
50 |
Applications & Components
▶Long-travel automation systems
▶Large-format processing equipment
▶Automated storage and retrieval systems
Why Choose This Machine
The Precision-calibrated Ball Screw Motion Slide offers high rigidity, consistent long-stroke accuracy, and multiple configuration options. It is easy to integrate, built for reliability, and provides excellent value for long-travel automation projects.
Part of Your Smart Factory
Built for smart manufacturing with long-travel needs, the Precision calibrated ball screw linear stage linear module integrates smoothly into automated lines, supporting stable, low-error operation for efficient factory automation.
FAQ(Frequently Asked Questions)
Q: What structural advantage does Precisely adjusted ball screw motion slide have over ordinary linear modules?
A: Adopting an enhanced integral frame structure, this module effectively reduces shaking and bending during long-distance movement, maintaining stable running accuracy for a long time.
Q: Is the running noise of Fine tuned ball screw linear platform controlled well?
A: Matched with high-precision ball screw and silent linear guide, it delivers smooth transmission with low noise, suitable for quiet workshop and laboratory environments.
Q: Can High precision aligned ball screw slide unit be used for multi-axis combined equipment?
A: Yes. It features standard installation dimensions and reserved mounting holes, convenient for multi-axis gantry combination and customized automation equipment assembly.
