Product Introduction

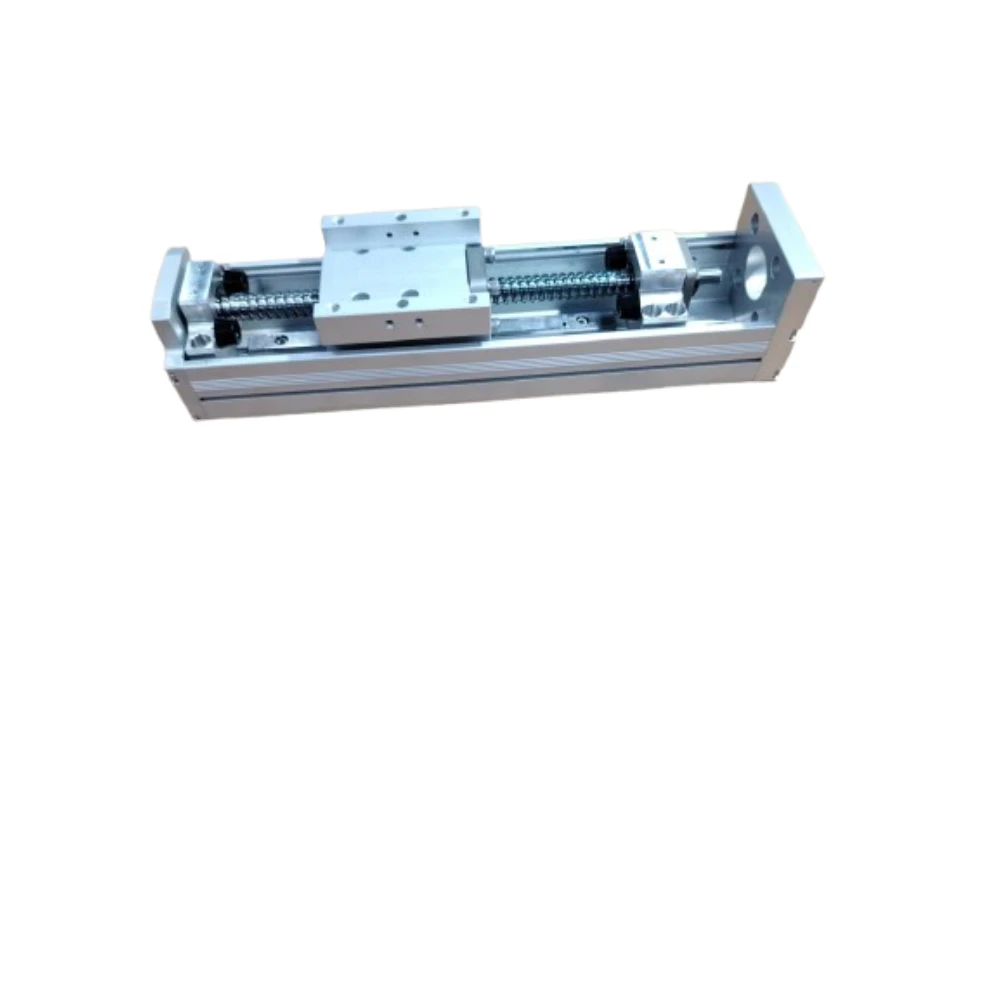

The Shroud-protected Ball Screw Linear Actuator is a wide-body high-rigidity linear motion module engineered for heavy industrial automation environments where structural stability and load capacity are critical. Its robust 170mm-wide alloy frame delivers superior rigidity, minimizing deflection even under maximum load and long-travel conditions. Equipped with premium ball screw and linear guide components, it maintains consistent precision across the full stroke range. Compatible with 200W/400W AC motors and offering 100–1000mm stroke options, it is ideal for heavy-duty material handling, large-format processing equipment, and high-load assembly lines.
Key Benefits
▶170mm Reinforced Wide Frame
▶Superior Stability
▶High Load & Speed Versatility

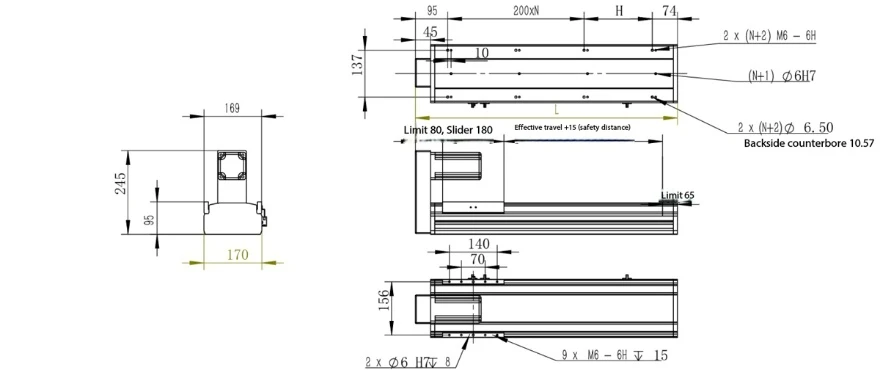

Technical Specifications
|
Module Model |
Shroud-protected Ball Screw Linear Actuator |
||
|
Basic Specifications |
XXXXX |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Horizontal Load Capacity |
70 / 47 / 24 kg |
||
|
Vertical Load Capacity |
17 / 12 / 6 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
φ16 / φ20 mm |
||
|
Linear Guide Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX572 NPN |
||
|
Built-in Sensor |
- |
||
|
Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
419 |
1 |
50 |
|
150 |
469 |
1 |
100 |
|
200 |
519 |
1 |
150 |
|
250 |
569 |
1 |
200 |
|
300 |
619 |
2 |
50 |
|
350 |
669 |
2 |
100 |
|
400 |
719 |
2 |
150 |
|
450 |
769 |
2 |
200 |
|
500 |
819 |
3 |
50 |
|
550 |
869 |
3 |
100 |
|
600 |
919 |
3 |
150 |
|
650 |
969 |
3 |
200 |
|
700 |
1019 |
4 |
50 |
|
750 |
1069 |
4 |
100 |
|
800 |
1119 |
4 |
150 |
|
850 |
1169 |
4 |
200 |
|
900 |
1219 |
5 |
50 |
|
950 |
1269 |
5 |
100 |
|
1000 |
1319 |
5 |
150 |
Applications & Components
▶Heavy-duty material handling systems
▶Large-format processing machinery
▶Automated palletizing equipment
Why Choose This Machine
Engineered with 170mm widened integral base, Shroud-protected Ball Screw Linear Actuator breaks the limit of ordinary modules in rigidity and load bearing. It adopts industrial-grade matched transmission parts, runs smoothly with tiny vibration, and covers full standard stroke specifications. With universal mounting layout and strict quality calibration out of factory, it fits large-scale automated lines and heavy-duty customized machinery perfectly.
Part of Your Smart Factory
Built for heavy-duty smart manufacturing, the Guard-protected Ball Screw Linear Actuator linear module delivers rigid, stable performance to power your most demanding industrial automation processes.
