Product Introduction
The Semi-enclosed Ball Screw Linear Unit is a timing belt-driven linear module designed for long-distance high-speed transfer. It adopts a wide high-tension timing belt and dual EGH15CA guide rails, balancing smooth high-speed operation with long-stroke stability. With a rigid body and outstanding load capacity, it meets the linear motion needs of long-distance, high-tempo automation production lines, making it an ideal drive unit for 3C sorting, packaging conveying, warehousing and logistics scenarios.
Key Benefits
▶No performance decay at long stroke
▶Standardized & easy integration
▶High load & rigidity
Technical Specifications
|
Module Model |
Semi-enclosed Ball Screw Linear Unit |
||
|
Repeat Positioning Accuracy C/P |
±0.02mm / ±0.01mm |
||
|
Lead |
5mm / 10mm / 20mm |
||
|
Max Horizontal Load |
70kg / 47kg / 24kg |
||
|
Max Vertical Load |
17kg / 12kg / 6kg |
||
|
Max Speed |
250mm/s / 500mm/s / 1000mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
Φ16mm / Φ20mm |
||
|
Linear Guide Brand/Model |
EGH15CA |
||
|
Timing Pulley Model |
3M-40-17 |
||
|
External Sensor |
SX672 NPN |
||
|
Internal Sensor |
None |
||
|

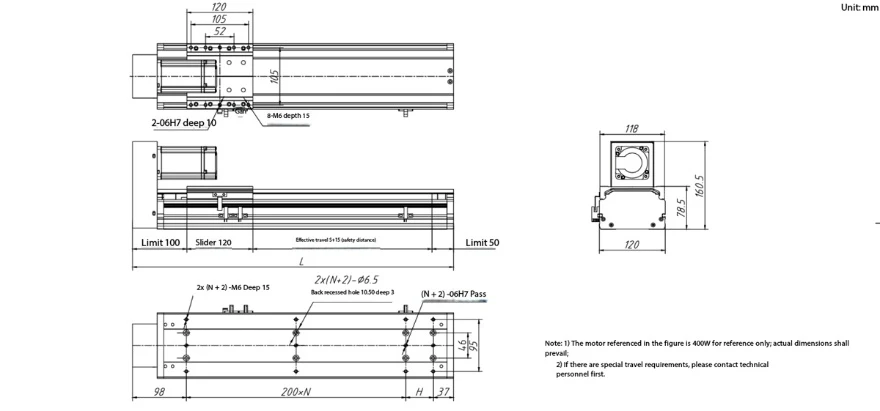

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
100mm |
385mm |
1 |
50 |
|
150mm |
435mm |
1 |
100 |
|
200mm |
485mm |
1 |
150 |
|
250mm |
535mm |
1 |
200 |
|
300mm |
585mm |
2 |
50 |
|
350mm |
635mm |
2 |
100 |
|
400mm |
685mm |
2 |
150 |
|
450mm |
735mm |
2 |
200 |
|
500mm |
785mm |
3 |
50 |
|
550mm |
835mm |
3 |
100 |
|
600mm |
885mm |
3 |
150 |
|
650mm |
935mm |
3 |
200 |
|
700mm |
985mm |
4 |
50 |
|
750mm |
1035mm |
4 |
100 |
|
800mm |
1085mm |
4 |
150 |
|
850mm |
1135mm |
4 |
200 |
|
900mm |
1185mm |
5 |
50 |
|
950mm |
1235mm |
5 |
100 |
|
1000mm |
1285mm |
5 |
150 |
Applications & Components
▶Warehousing and logistics equipment
▶Electronic sorting production line
▶High-speed packaging equipment
Why Choose This Machine
The Semi-enclosed Ball Screw Linear Unit adopts an integrally extruded aluminum alloy body with wear-resistant and corrosion-resistant surface oxidation treatment. The timing belt drive requires no oil lubrication, suitable for clean room use. Before delivery, the module undergoes tension calibration and running-in test with stable tension and no slippage, enabling long-term continuous operation and greatly reducing equipment maintenance costs.
Part of Your Smart Factory
Semi-sealed Ball Screw Linear Motion Unit comes with standard industrial interface, perfectly compatible with Industry 4.0 smart production lines and mainstream PLC & motion control systems. Its modular structure allows easy multi-axis combination for gantry and linkage mechanism setup. It supports real-time operation data feedback, fits unmanned production in digital workshops and accelerates flexible line deployment.
FAQ(Frequently Asked Questions)
Q: Can Semi-enclosed Ball Screw Linear Guide be installed in multiple ways such as horizontal, side-mounted and upside-down?
A: Adopting symmetrical rigid structure, it supports horizontal, side and upside-down installation. Only slight load adjustment is needed for different mounting methods without affecting overall operating accuracy.
Q: Will there be synchronization error when multiple Half-sealed Ball Screw Linear Actuator work side by side?
A: Calibrated with unified accuracy before delivery and equipped with matched transmission parts, multiple modules maintain good synchronization during linkage, ideal for multi-station synchronous transfer and gantry frame combination.
Q: Is daily maintenance complicated for belt-driven type? What is its service life?
A: No daily oil lubrication required. It features low wear and loss under normal workshop conditions with long service life within rated load, only simple regular visual inspection is needed.
