Product Introduction
The Left-mounted Ball Screw Linear Carriage is a space-saving, high-precision linear motion module engineered for compact automation systems, where footprint is critical. Its streamlined, compact design delivers reliable linear performance without sacrificing rigidity, making it ideal for tight-layout equipment such as desktop automation tools, small-scale assembly lines, and space-constrained testing stations. Compatible with 200W/400W AC motors and offering 100–1000mm stroke options, it balances performance and size to fit your space-limited automation needs.
Key Benefits
▶Flexible Lead & Load Options
▶Easy Integration
▶Proven Durability
Technical Specifications
|
Module Model |
Left-mounted Ball Screw Linear Carriage |
||
|
Basic Specifications |
XXXXX |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Horizontal Load Capacity |
70 / 47 / 24 kg |
||
|
Vertical Load Capacity |
17 / 12 / 6 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
φ16 / φ20 mm |
||
|
Linear Guide Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX572 NPN |
||
|
Built-in Sensor |
- |
||
|

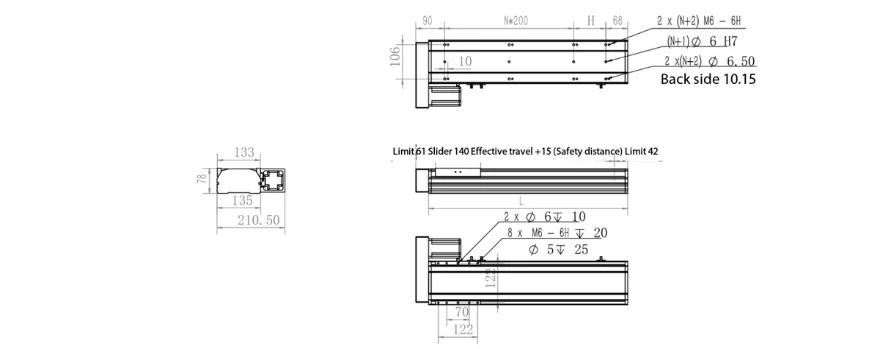

Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
318 |
1 |
0 |
|
150 |
368 |
1 |
50 |
|
200 |
418 |
1 |
100 |
|
250 |
468 |
1 |
150 |
|
300 |
518 |
1 |
200 |
|
350 |
568 |
2 |
50 |
|
400 |
618 |
2 |
100 |
|
450 |
668 |
2 |
150 |
|
500 |
718 |
2 |
200 |
|
550 |
768 |
3 |
50 |
|
600 |
818 |
3 |
100 |
|
650 |
868 |
3 |
150 |
|
700 |
918 |
3 |
200 |
|
750 |
968 |
4 |
50 |
|
800 |
1018 |
4 |
100 |
|
850 |
1068 |
4 |
150 |
|
900 |
1118 |
4 |
200 |
|
950 |
1168 |
5 |
50 |
|
1000 |
1218 |
5 |
100 |
Applications & Components
▶Electronic component processing tools
▶Laboratory testing instruments
▶Desktop automation equipment
Why Choose This Machine
The Left-mounted Ball Screw Linear Carriage combines a compact footprint with high precision and flexible performance options. It is easy to install, reliable in tight spaces, and offers excellent value for space-constrained automation projects.
Part of Your Smart Factory
Built for space-efficient smart manufacturing, the Left-side Mount Ball Screw Linear Slide linear module integrates smoothly into compact automated layouts, supporting precise and reliable operation for small-footprint factory upgrades.
FAQ(Frequently Asked Questions)
Q: Does Left-installed Ball Screw Linear Stage need extra modification for installation?
A: It adopts universal industry mounting hole layout and overall dimension standard, no extra cutting or modification is required, ready for direct assembly and equipment matching.
Q: What runtime stability does this compact module have in long-term operation?
A: Adopting high-grade linear guide and precision ball screw matching, it owns low friction loss, stable linear motion, and keeps consistent precision after thousands of hours of continuous operation.
Q: Can left-end Mounted Ball Screw Linear Unit be used for intermittent frequent start-stop working conditions?
A: Yes. The integral alloy frame enhances shock resistance, perfectly adapting to frequent start-stop, reciprocating positioning and intermittent automated working modes.
