Product Introduction
The Left-output Ball Screw Linear Module is a heavy-duty wide-frame linear motion module engineered for industrial automation workflows requiring exceptional rigidity and load capacity, featuring a reinforced 170mm alloy chassis to minimize deflection under heavy loads and long-travel operation, paired with premium ball screw and linear guide components for consistent precision, and compatible with 200W/400W AC motors with a full range of stroke options to support robust material handling, heavy assembly lines, and large-format processing equipment.
Key Benefits
▶Industrial-Grade Durability
▶Long-Travel Stability
▶Versatile Integration Ready
Technical Specifications
|
Module Model |
Left-output Ball Screw Linear Module |
||
|
Basic Specifications |
XXXXX |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Horizontal Load Capacity |
70 / 47 / 24 kg |
||
|
Vertical Load Capacity |
17 / 12 / 6 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
φ16 / φ20 mm |
||
|
Linear Guide Model |
EGH15CA |
||
|
Coupling Model |
P40-42-10-Motor Shaft |
||
|
External Sensor |
SX572 NPN |
||
|
Built-in Sensor |
- |
||
|

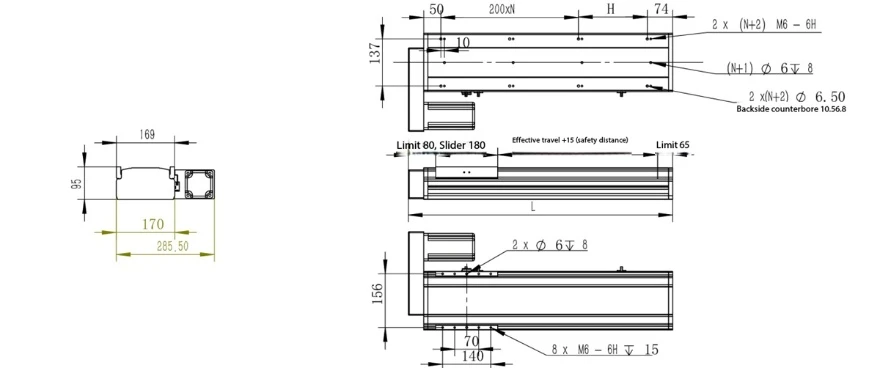

Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
419 |
1 |
50 |
|
150 |
469 |
1 |
100 |
|
200 |
519 |
1 |
150 |
|
250 |
569 |
1 |
200 |
|
300 |
619 |
2 |
50 |
|
350 |
669 |
2 |
100 |
|
400 |
719 |
2 |
150 |
|
450 |
769 |
2 |
200 |
|
500 |
819 |
3 |
50 |
|
550 |
869 |
3 |
100 |
|
600 |
919 |
3 |
150 |
|
650 |
969 |
3 |
200 |
|
700 |
1019 |
4 |
50 |
|
750 |
1069 |
4 |
100 |
|
800 |
1119 |
4 |
150 |
|
850 |
1169 |
4 |
200 |
|
900 |
1219 |
5 |
50 |
|
950 |
1269 |
5 |
100 |
|
1000 |
1319 |
5 |
150 |
Applications & Components
▶High-load assembly lines
▶Large-format processing machinery
▶Heavy-duty material handling systems
Why Choose This Machine
Built for heavy-duty industrial automation, the Left-output Ball Screw Linear Module features a reinforced 170mm frame, delivering exceptional rigidity and load capacity with consistent precision. It offers durable components, long-travel stability, and a rugged design, making it a dependable choice for heavy material handling and high-load production lines.
Part of Your Smart Factory
Designed for heavy-duty smart manufacturing, the Left-side Output Ball Screw Linear Unit wide-frame module delivers rigid, reliable performance to power your most demanding industrial automation and material handling operations.
FAQ(Frequently Asked Questions)
Q: Is the Left-drive Ball Screw Linear Module suitable for continuous heavy-cycle operation?
A: Yes. It is built with industrial-grade, wear-resistant components and a rugged structure, specifically designed to withstand the demands of continuous, heavy-duty production environments.
Q: What maintenance is required for heavy-duty use?
A: Regular lubrication of the ball screw and linear guide, along with periodic inspection of mounting fasteners, is recommended to ensure optimal performance and extend service life.
Q: How does the wide frame improve performance under heavy loads?
A: The wider 170mm frame significantly increases the module's structural rigidity, reducing bending and vibration caused by heavy loads, which improves stability and accuracy.
