Product Introduction
The Left-end Motorized Ball Screw Linear Actuator is a heavy-duty belt-driven linear actuator engineered for industrial automation where high speed and heavy payloads coexist. Built with a reinforced aluminum frame and high-efficiency synchronous belt drive, it delivers consistent linear motion with minimal noise and vibration, even under continuous, high-frequency cycling.
Key Benefits
▶Balanced Speed & Load
▶Robust Reinforced Frame
▶Low-Maintenance Design
Technical Specifications
|
Model |
Left-end Motorized Ball Screw Linear Actuator |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.02 / ±0.01 mm |
||
|
Horizontal Load (KG) |
200 (Lead 5mm) / 180 (Lead 10mm) / 120 (Lead 20mm) |
||
|
Vertical Load (KG) |
65 (Lead 5mm) / 55 (Lead 10mm) / 45 (Lead 20mm) |
||
|
Max. Speed (mm/s) |
250 (Lead 5mm) / 500 (Lead 10mm) / 1000 (Lead 20mm) |
||
|
AC Motor Configuration |
86 / 750W / 1KW / 1.5KW |
||
|
Ball Screw Outer Diameter |
Ø32 |
||
|
Guide Rail Brand / Model |
HGH25CA |
||
|
Timing Pulley Model |
5M-25-21 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Optional |
||
|

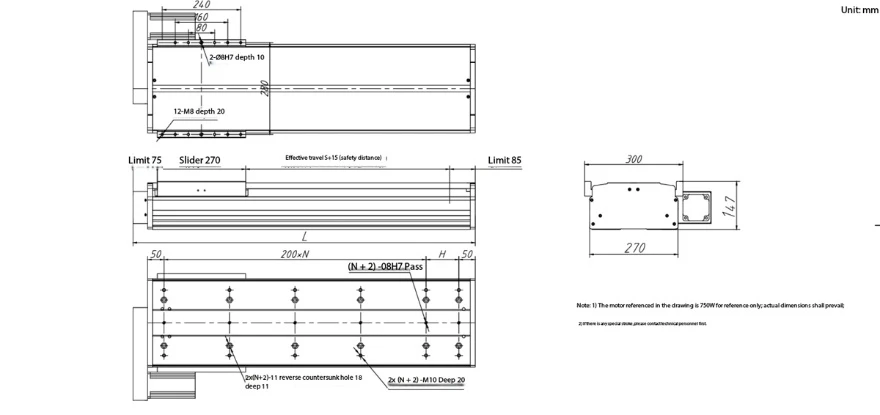

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
100 |
545 |
1 |
200 |
|
150 |
595 |
2 |
50 |
|
200 |
645 |
2 |
100 |
|
250 |
695 |
2 |
150 |
|
300 |
745 |
2 |
200 |
|
350 |
795 |
3 |
50 |
|
400 |
845 |
3 |
100 |
|
450 |
895 |
3 |
150 |
|
500 |
945 |
3 |
200 |
|
550 |
995 |
4 |
50 |
|
600 |
1045 |
4 |
100 |
|
650 |
1095 |
4 |
150 |
|
700 |
1145 |
4 |
200 |
|
750 |
1195 |
5 |
50 |
|
800 |
1245 |
5 |
100 |
|
850 |
1295 |
5 |
150 |
|
900 |
1345 |
5 |
200 |
|
950 |
1395 |
6 |
50 |
|
1000 |
1445 |
6 |
100 |
Applications & Components
▶Automated production lines & conveying equipment
▶Printing & Labeling Systems
▶Electronics Assembly Lines
Why Choose This Machine
Unlike traditional screw-driven modules, the Left-end Motorized Ball Screw Linear Actuator leverages belt drive technology to deliver higher speeds and longer strokes while maintaining reliable load capacity. Its vibration-damping design ensures smooth operation even at peak speeds, making it ideal for high-efficiency, high-throughput production lines.
Part of Your Smart Factory
As a high-efficiency linear motion core, the Left-side Motorized Ball Screw Motion Actuator integrates seamlessly into smart factory logistics, packaging, and assembly lines. It enables unmanned high-speed operation, boosts line throughput, and reduces labor costs, accelerating your factory's intelligent transformation.
FAQ(Frequently Asked Questions)
Q: Will high-speed operation produce big noise?
A: Optimized mute belt and pulley fit design, running with low noise and low vibration, suitable for factory and workshop quiet production environment.
Q: Can it realize precise stop at any position?
A: Combined with high-precision drive and motor pulse control, it can achieve arbitrary point positioning and accurate stopping.
Q: What supporting power parts are available?
A: It can match mainstream stepper and servo motors of different power, with complete optional specifications, convenient for customers to select and match.
