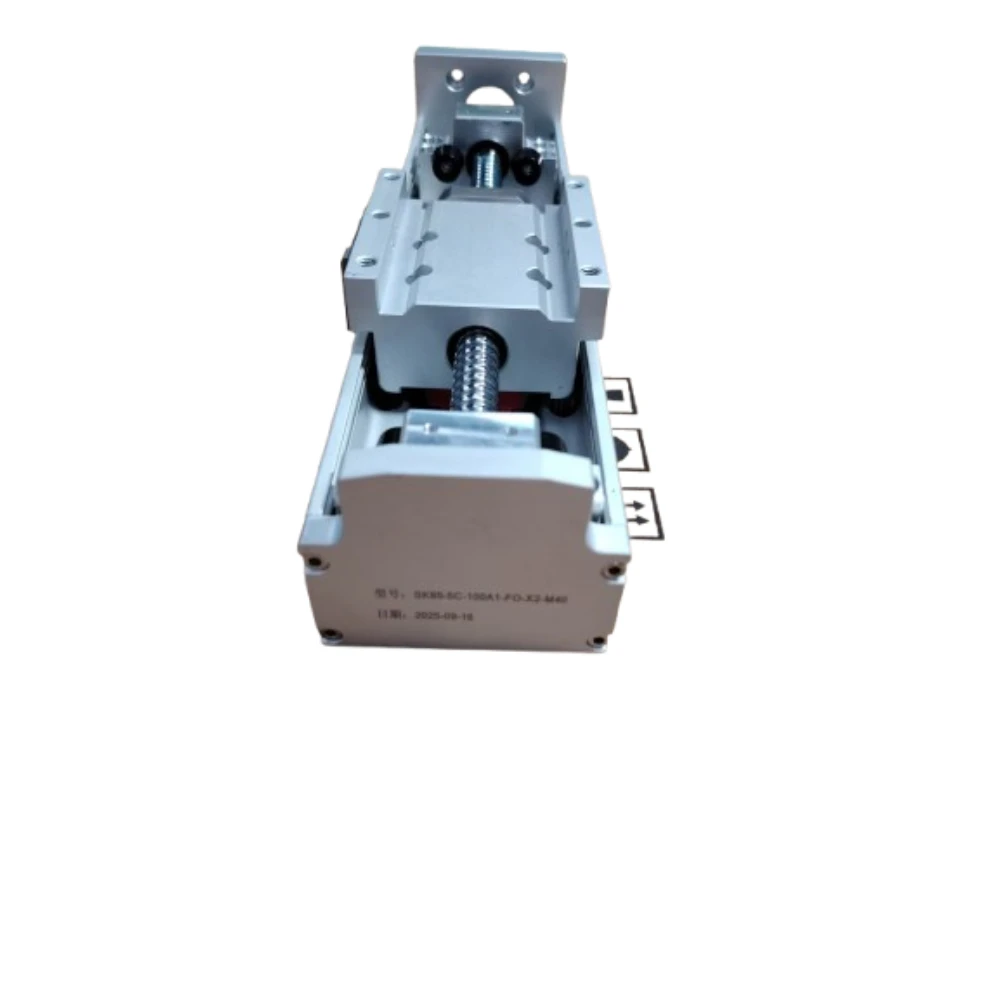

Product Introduction

The High-precision Ball Screw Linear Slide is a timing belt-driven linear module tailored for heavy-duty high-speed, cross-station long-distance transfer. Equipped with high-tension steel-core timing belt and dual EGH15CA guide rails, it balances stable high-speed operation with consistent long-stroke accuracy. The one-piece aluminum alloy body features excellent torsion resistance, easily adapting to multi-axis gantry structures and delivering efficient and reliable linear motion solutions for industries like logistics sorting, packaging conveying, and 3C electronics.

Key Benefits

▶High-rigidity heavy-load structure

▶Backlash-free high-speed drive

▶Stable performance across long stroke

Technical Specifications

Module Model	High-precision Ball Screw Linear Slide
Repeat Positioning Accuracy C/P	±0.02mm / ±0.01mm
Lead	5mm / 10mm / 20mm
Max Horizontal Load	70kg / 47kg / 24kg
Max Vertical Load	17kg / 12kg / 6kg
Max Speed	250mm/s / 500mm/s / 1000mm/s
AC Motor Configuration	200W / 400W
Ball Screw Outer Diameter	Φ16mm / Φ20mm
Linear Guide Brand/Model	EGH15CA
External Sensor	SX672 NPN
Internal Sensor	None

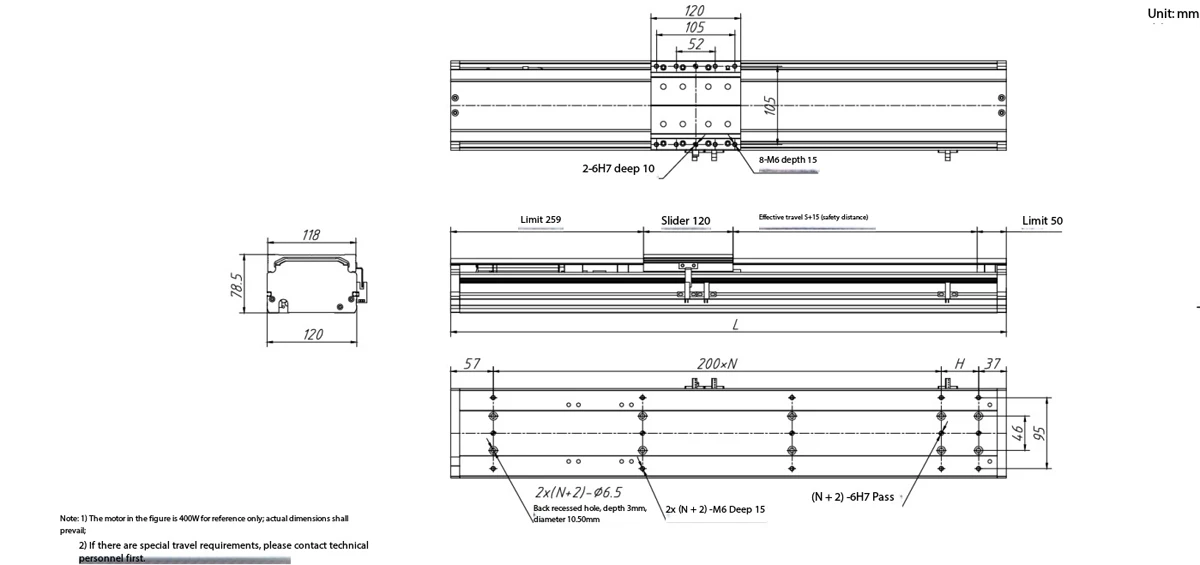

Effective Stroke (S)	Overall Length (L)	Standard Blocks (N)	Height (H)
100mm	544mm	2	50
150mm	594mm	2	100
200mm	644mm	2	150
250mm	694mm	2	200
300mm	744mm	3	50
350mm	794mm	3	100
400mm	844mm	3	150
450mm	894mm	3	200
500mm	944mm	4	50
550mm	994mm	4	100
600mm	1044mm	4	150
650mm	1094mm	4	200
700mm	1144mm	5	50
750mm	1194mm	5	100
800mm	1244mm	5	150
850mm	1294mm	5	200
900mm	1344mm	6	50
950mm	1394mm	6	100
1000mm	1444mm	6	150

product-1200-565

Applications & Components

▶Logistics sorting systems: Multi-station transfer for express sorting lines, high-speed conveying for e-commerce parcels, pick-and-place units for warehousing systems

▶Automated packaging equipment: High-speed feeding for food packaging lines, synchronous shifting for pharmaceutical packaging lines, linkage mechanisms for inkjet printing/labeling

▶3C electronics production lines: Reciprocating conveying for PCB boards, high-speed sorting for electronic components, automatic loading/unloading slides

Why Choose This Machine

The High-precision Ball Screw Linear Slide features thickened profile and dual guide rail structure for high rigidity and torsion resistance, ensuring stable operation even under heavy loads. The belt drive requires no daily oiling for low maintenance costs. With standard interface compatible with mainstream motors and control systems, and custom stroke options available, it delivers outstanding cost performance as an ideal drive unit for automation lines.

Part of Your Smart Factory

The Precision Ball Screw Linear Slide comes with standard industrial interface, seamlessly compatible with Industry 4.0 smart production lines and mainstream PLC & motion control systems. Its modular structure allows easy multi-axis combination for gantry and linkage setup, supporting real-time operation data feedback for unmanned production in digital workshops and accelerating flexible line deployment.

FAQ(Frequently Asked Questions)

Q: Will the High-accuracy Ball Screw Linear Unit jitter under heavy load?

A: The dual-rail symmetrical layout and thickened profile body provide excellent torsion and bending resistance, ensuring no obvious jitter even at full load with stable positioning accuracy.

Q: Is the tension and accuracy of High-precision Ball Screw Linear Stage calibrated before delivery?

A: Every unit is strictly calibrated in tension, running-in tested and accuracy inspected before delivery. It can be put into use directly on site, saving debugging time.

Q: If standard stroke does not fit, can I customize non-standard length and mounting holes?

A: Custom non-standard stroke cutting, sensor position adjustment and mounting hole customization are all available. We can process according to equipment drawings to fit all kinds of non-standard automation machines.
