Product Introduction
The Universal-style Ball Screw Linear Actuator is a heavy-duty screw-driven linear motion unit built for high-load, high-rigidity automation. Equipped with a Ø32 ball screw and HGH25CA rail, it delivers ±0.01/±0.02mm repeatability, supporting up to 200kg horizontal load and a 100–1000mm stroke range, ideal for heavy-duty industrial applications.
Key Benefits
▶Dual precision grades available (±0.01mm/±0.02mm) to meet strict positioning requirements
▶Flexible motor compatibility with 86/750W/1KW/1.5KW AC servo motors
▶Ø32 ball screw + HGH25CA rail for enhanced rigidity and long service life
Technical Specifications
|
Model |
Universal-style Ball Screw Linear Actuator |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.02 / ±0.01 mm |
||
|
Horizontal Load (KG) |
200 (Lead 5mm) / 180 (Lead 10mm) / 120 (Lead 20mm) |
||
|
Vertical Load (KG) |
65 (Lead 5mm) / 55 (Lead 10mm) / 45 (Lead 20mm) |
||
|
Max. Speed (mm/s) |
250 (Lead 5mm) / 500 (Lead 10mm) / 1000 (Lead 20mm) |
||
|
AC Motor Configuration |
86 / 750W / 1KW / 1.5KW |
||
|
Ball Screw Outer Diameter |
Ø32 |
||
|
Guide Rail Brand / Model |
HGH25CA |
||
|
Coupling Model |
P40-55-20 - Motor Shaft |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Optional |
||
|

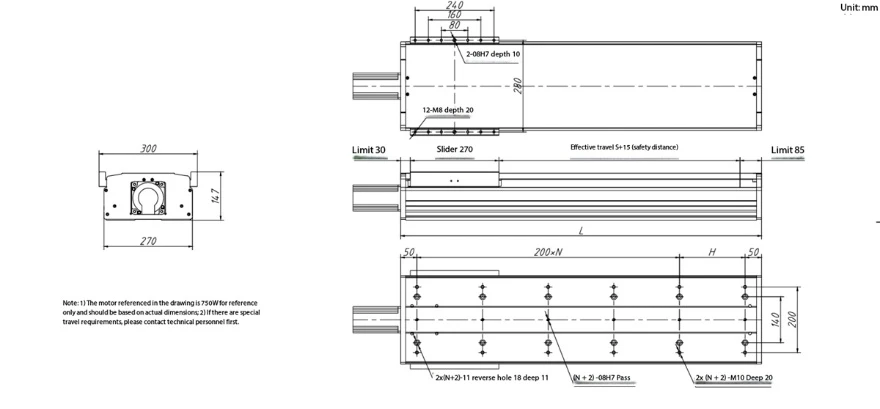

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
100 |
500 |
1 |
200 |
|
150 |
550 |
2 |
50 |
|
200 |
600 |
2 |
100 |
|
250 |
650 |
2 |
150 |
|
300 |
700 |
2 |
200 |
|
350 |
750 |
3 |
50 |
|
400 |
800 |
3 |
100 |
|
450 |
850 |
3 |
150 |
|
500 |
900 |
3 |
200 |
|
550 |
950 |
4 |
50 |
|
600 |
1000 |
4 |
100 |
|
650 |
1050 |
4 |
150 |
|
700 |
1100 |
4 |
200 |
|
750 |
1150 |
5 |
50 |
|
800 |
1200 |
5 |
100 |
|
850 |
1250 |
5 |
150 |
|
900 |
1300 |
5 |
200 |
|
950 |
1350 |
6 |
50 |
|
1000 |
1400 |
6 |
100 |
Applications & Components
▶Automated production lines & conveying equipment
▶Mechanical Processing Auxiliary Equipment：Matched for machine tool feeding and discharging, sliding platform displacement and process auxiliary linear motion.
▶Large Non-standard Automation：Suitable for gantry robot auxiliary axis, long-stroke testing platform and heavy-load customized mechanical structure.
Why Choose This Machine
The Universal-style Ball Screw Linear Actuator stands out for its exceptional load capacity and rigidity, making it ideal for heavy-duty industrial automation. Its reinforced structure minimizes deflection under high loads, while standard motor compatibility ensures easy integration. With strict factory calibration, it delivers consistent performance and low maintenance, offering high reliability for demanding applications.
Part of Your Smart Factory
As a heavy-duty core motion component, the General-purpose Ball Screw Linear Actuator linear module seamlessly integrates into smart factory production lines, heavy material handling systems and automated assembly stations. It supports stable, high-efficiency operation, helping factories handle heavier loads, reduce downtime and upgrade their manufacturing capabilities.
FAQ(Frequently Asked Questions)
Q: What installation ways does All-purpose Ball Screw Linear Drive Unit support?
A: It supports horizontal, vertical and side mounting to adapt various equipment layout demands.
Q: Which scenario is this heavy-duty module more suitable for?
A: It fits high-rigidity, heavy-load and long-cycle working conditions in industrial automation.
Q: Will heavy load cause obvious deformation?
A: Reinforced integral alloy base effectively reduces deformation, keeping long-term operation stable.
