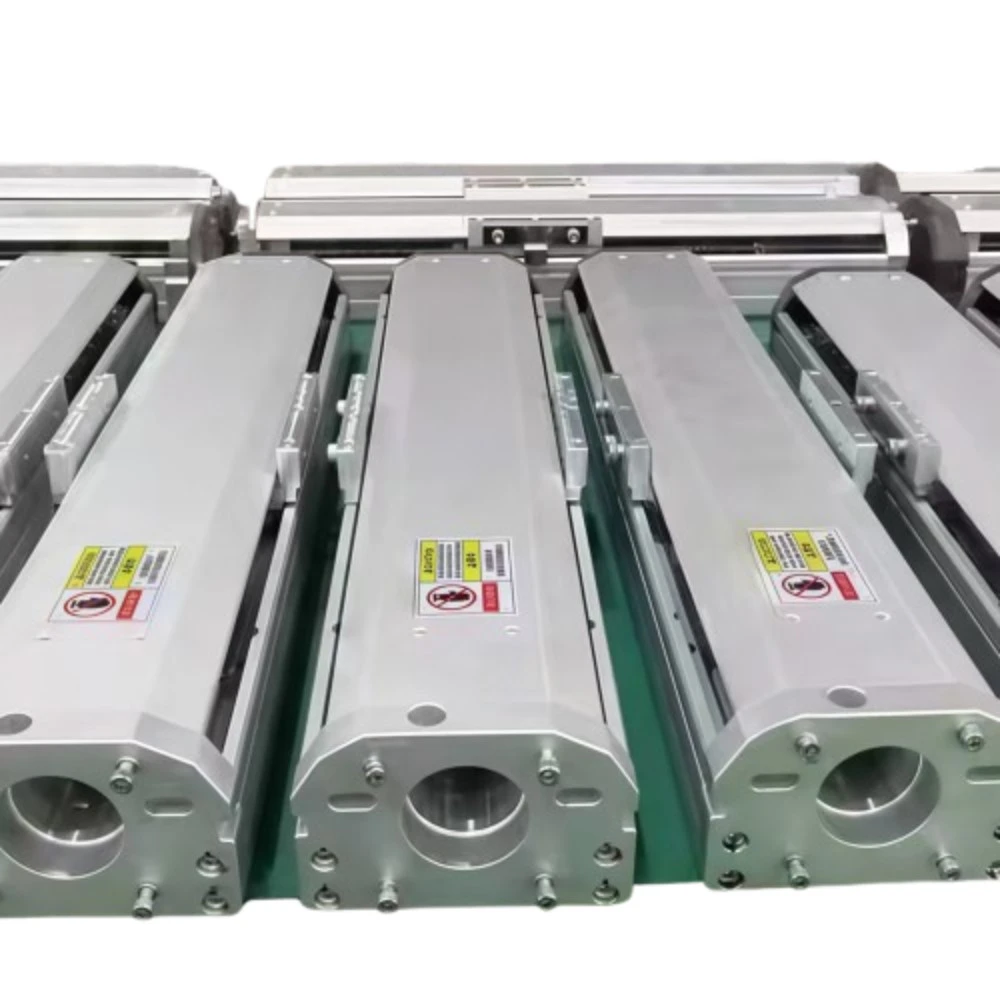

Product Introduction
The Fully-enclosed Ball Screw Linear Rail is a timing belt-driven linear module developed for high-tempo, long-stroke automation scenarios. With a wide high-tension steel-core timing belt and dual EGH15CA guide rails, it ensures smooth and durable high-speed operation. The one-piece aluminum alloy body balances light weight and high rigidity, easily adapting to multi-axis equipment and providing efficient and stable linear motion solutions for industries like 3C sorting, packaging conveying, and warehousing logistics.
Key Benefits
▶Extreme transmission efficiency
▶Stable heavy-load operation
▶Consistent performance across full stroke
Technical Specifications
|
Module Model |
Fully-enclosed Ball Screw Linear Rail |
||
|
Repeat Positioning Accuracy C/P |
±0.02mm / ±0.01mm |
||
|
Lead |
5mm / 10mm / 20mm |
||
|
Max Horizontal Load |
70kg / 47kg / 24kg |
||
|
Max Vertical Load |
17kg / 12kg / 6kg |
||
|
Max Speed |
250mm/s / 500mm/s / 1000mm/s |
||
|
AC Motor Configuration |
200W / 400W |
||
|
Ball Screw Outer Diameter |
Φ16mm / Φ20mm |
||
|
Linear Guide Brand/Model |
EGH15CA |
||
|
Timing Pulley Model |
3M-40-17 |
||
|
External Sensor |
SX672 NPN |
||
|
Internal Sensor |
None |
||
|

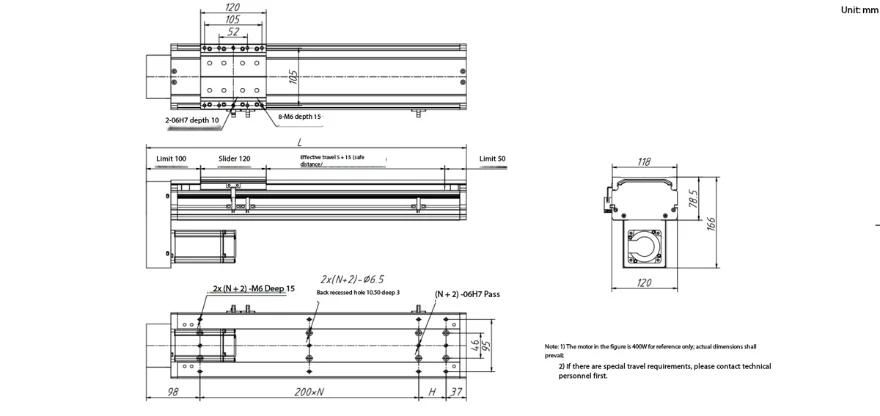

Effective Stroke (S) |
Overall Length (L) |
||
|
100mm |
385mm |
1 |
50 |
|
150mm |
435mm |
1 |
100 |
|
200mm |
485mm |
1 |
150 |
|
250mm |
535mm |
1 |
200 |
|
300mm |
585mm |
2 |
50 |
|
350mm |
635mm |
2 |
100 |
|
400mm |
685mm |
2 |
150 |
|
450mm |
735mm |
2 |
200 |
|
500mm |
785mm |
3 |
50 |
|
550mm |
835mm |
3 |
100 |
|
600mm |
885mm |
3 |
150 |
|
650mm |
935mm |
3 |
200 |
|
700mm |
985mm |
4 |
50 |
|
750mm |
1035mm |
4 |
100 |
|
800mm |
1085mm |
4 |
150 |
|
850mm |
1135mm |
4 |
200 |
|
900mm |
1185mm |
5 |
50 |
|
950mm |
1235mm |
5 |
100 |
|
1000mm |
1285mm |
5 |
150 |
Applications & Components
▶High-speed sorting lines: 3C component high-speed sorting, PCB reciprocating conveying, auto loading/unloading slides for electronic parts
▶Automated packaging equipment: Side transfer for automatic packaging lines, synchronous shifting for inkjet printers, high-speed feeding mechanisms for labeling machines
▶Warehousing & logistics systems: Pick-and-place units for small AS/RS, multi-station transfer for sorting lines, high-speed conveying modules for AGVs
Why Choose This Machine
Fully-enclosed Ball Screw Linear Rail features high rigidity and smooth operation, maintaining precise positioning even at high speed. Standard mounting interface fits mainstream motors and control systems for quick integration without modification. It supports custom requirements, needs little maintenance and delivers great cost performance for long-term automated production.
Part of Your Smart Factory
The Enclosed Ball Screw Linear Motion Rail comes with standard industrial interface, seamlessly compatible with Industry 4.0 smart production lines and mainstream PLC & motion control systems. Its modular structure allows easy multi-axis combination for gantry and linkage setup, supporting real-time operation data feedback for unmanned production in digital workshops and accelerating flexible line deployment.
FAQ(Frequently Asked Questions)
Q: Will the Fully-sealed Ball Screw Linear Rail System jitter and affect accuracy at high speed?
A: Built with a high-rigidity body, dual guide rails and calibrated belt tension, it maintains smooth operation even at 1000mm/s without affecting repeat positioning accuracy.
Q: Can it be used in food or clean room environments?
A: The belt drive is oil-free and dust-free, and the aluminum alloy body is rust-proof and corrosion-resistant, meeting the requirements of food and clean room applications.
Q: Do belt-driven modules require regular part replacement?
A: Under normal conditions, the belt wears slowly and only requires regular visual inspection. There are no frequently replaced wearing parts, making maintenance simple and worry-free.
