Product Introduction

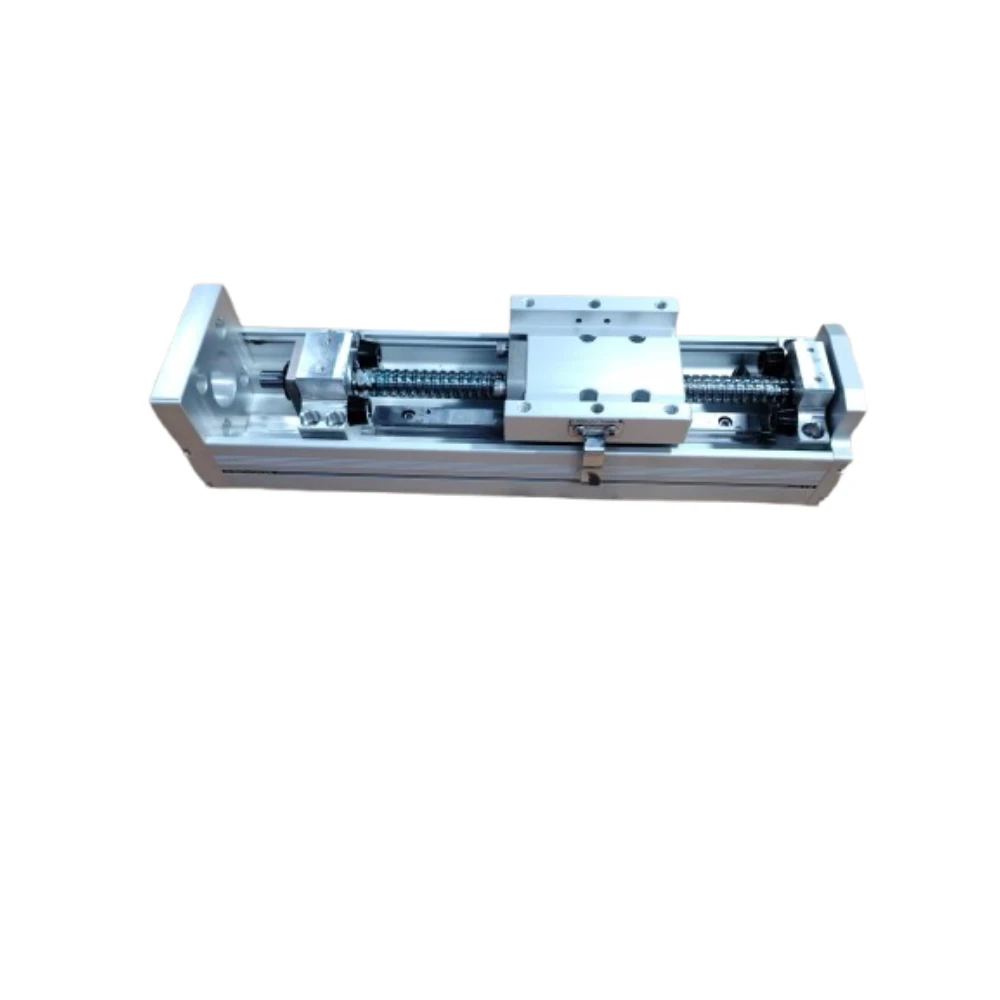

Sealed-protected Ball Screw Motion Platform is a newly upgraded heavy-duty ball screw linear module, designed for high-load industrial automation scenarios. With reinforced body structure and premium transmission parts, it delivers stable carrying capacity and precise positioning performance, suitable for long-term continuous running in harsh production environments.
Key Benefits
▶Wide Application Compatibility
▶Space-Saving & Low Maintenance
▶High Efficiency & Cost-Effective
Technical Specifications
|
Model |
Sealed-protected Ball Screw Motion Platform |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.02 / ±0.01 mm |
||
|
Horizontal Load (KG) |
200 (Lead 5mm) / 180 (Lead 10mm) / 120 (Lead 20mm) |
||
|
Vertical Load (KG) |
65 (Lead 5mm) / 55 (Lead 10mm) / 45 (Lead 20mm) |
||
|
Max. Speed (mm/s) |
250 (Lead 5mm) / 500 (Lead 10mm) / 1000 (Lead 20mm) |
||
|
AC Motor Configuration |
86 / 750W / 1KW / 1.5KW |
||
|
Ball Screw Outer Diameter |
Ø32 |
||
|
Guide Rail Brand / Model |
HGH25CA |
||
|
Timing Pulley Model |
5M-25-21 |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Optional |
||
|

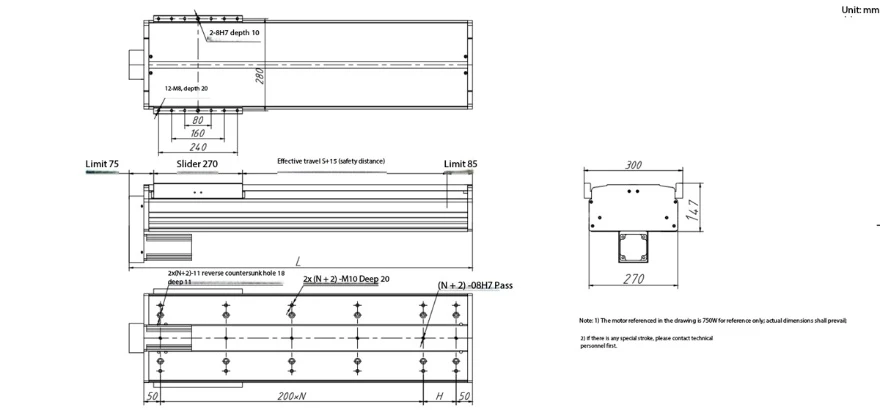

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
100 |
545 |
1 |
200 |
|
150 |
595 |
2 |
50 |
|
200 |
645 |
2 |
100 |
|
250 |
695 |
2 |
150 |
|
300 |
745 |
2 |
200 |
|
350 |
795 |
3 |
50 |
|
400 |
845 |
3 |
100 |
|
450 |
895 |
3 |
150 |
|
500 |
945 |
3 |
200 |
|
550 |
995 |
4 |
50 |
|
600 |
1045 |
4 |
100 |
|
650 |
1095 |
4 |
150 |
|
700 |
1145 |
4 |
200 |
|
750 |
1195 |
5 |
50 |
|
800 |
1245 |
5 |
100 |
|
850 |
1295 |
5 |
150 |
|
900 |
1345 |
5 |
200 |
|
950 |
1395 |
6 |
50 |
|
1000 |
1445 |
6 |
100 |
Applications & Components
▶Heavy-duty non-standard automation equipment.
▶Palletizing sorting
▶New energy industry handling
Why Choose This Machine
Engineered for medium and heavy industrial scenarios, Sealed-protected Ball Screw Motion Platform balances high rigidity, heavy load and precise positioning. Optimized overall structure suppresses vibration and deformation during frequent cycling. It features universal mounting interface, easy on-site debugging and low later maintenance cost, perfectly matching customized automation project demands.
Part of Your Smart Factory
Protected-sealed Ball Screw Linear Stage serves as key linear motion unit for intelligent manufacturing. It can be freely combined with multi-axis gantry systems and automated assembly lines, realizing continuous unmanned production. It helps enterprises streamline workflow, raise output efficiency and accelerate factory intelligent transformation.
FAQ(Frequently Asked Questions)
Q: What's the structural feature of SK270-FD?
A: It adopts thickened integral aluminum alloy design, with high overall rigidity and strong anti-vibration ability.
Q: What transmission mode does it use?
A: High-precision ball screw drive, ensuring smooth movement and repeat positioning accuracy.
Q: Is it compatible with mainstream controllers?
A: It matches most mainstream servo drives and supports EtherCAT synchronous control.
