Product Introduction

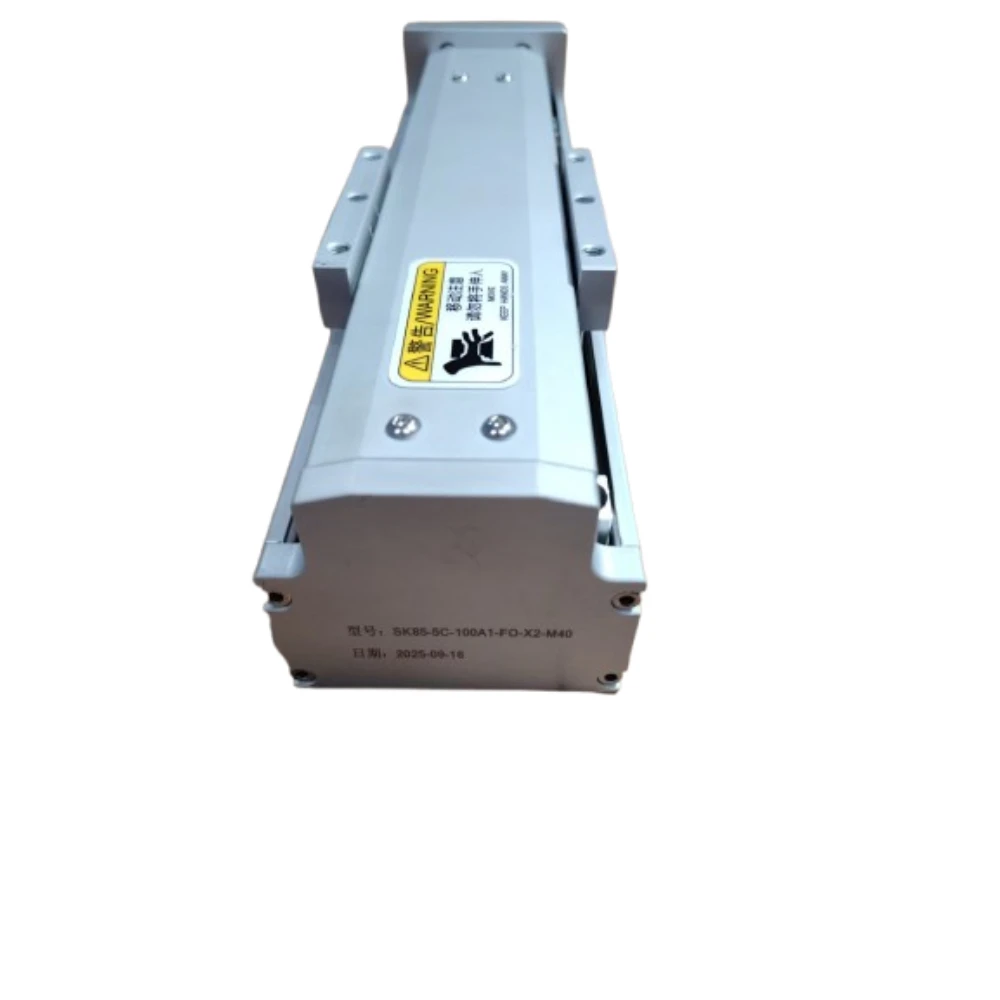

High-precision Ball Screw Linear Positioner is a closed-type heavy-load ball screw linear module, tailored for medium and heavy industrial automated production. Adopting integral die-cast aluminum alloy base and high-precision transmission assembly, it owns outstanding load-bearing rigidity and smooth linear motion, stable enough for frequent start-stop and long-cycle continuous production.
Key Benefits
▶Space-saving & Low Maintenance
▶Rich Compatibility
▶High Running Efficiency
Technical Specifications
|
Model |
High-precision Ball Screw Linear Positioner |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy (C/P) |
±0.02 / ±0.01 mm |
||
|
Horizontal Load (KG) |
200 (Lead 5mm) / 180 (Lead 10mm) / 120 (Lead 20mm) |
||
|
Vertical Load (KG) |
65 (Lead 5mm) / 55 (Lead 10mm) / 45 (Lead 20mm) |
||
|
Max. Speed (mm/s) |
250 (Lead 5mm) / 500 (Lead 10mm) / 1000 (Lead 20mm) |
||
|
AC Motor Configuration |
86 / 750W / 1KW / 1.5KW |
||
|
Ball Screw Outer Diameter |
Ø32 |
||
|
Guide Rail Brand / Model |
HGH25CA |
||
|
Coupling Model |
P40-55-20 - Motor Shaft |
||
|
External Sensor |
SX672NPN |
||
|
Built-in Sensor |
Optional |
||
|

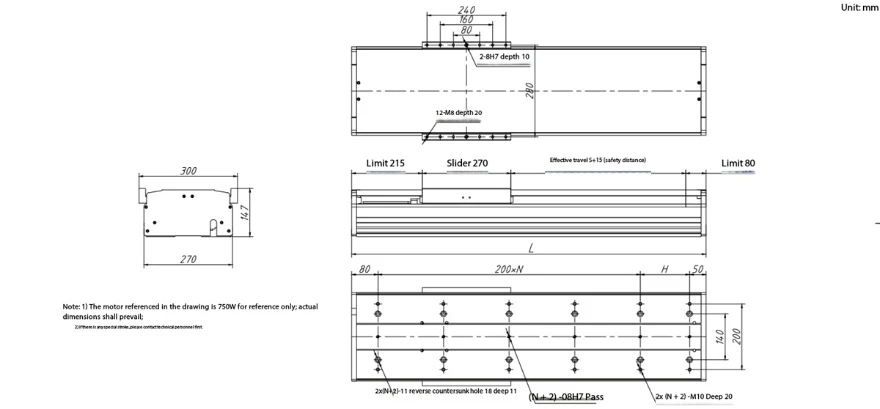

Effective Stroke (S) |
Overall Length (L) |
Standard Blocks (N) |
Height (H) |
|
100 |
680 |
2 |
150 |
|
150 |
730 |
2 |
200 |
|
200 |
780 |
3 |
50 |
|
250 |
830 |
3 |
100 |
|
300 |
880 |
3 |
150 |
|
350 |
930 |
3 |
200 |
|
400 |
980 |
4 |
50 |
|
450 |
1030 |
4 |
100 |
|
500 |
1080 |
4 |
150 |
|
550 |
1130 |
4 |
200 |
|
600 |
1180 |
5 |
50 |
|
650 |
1230 |
5 |
100 |
|
700 |
1280 |
5 |
150 |
|
750 |
1330 |
5 |
200 |
|
800 |
1380 |
6 |
50 |
|
850 |
1430 |
6 |
100 |
|
900 |
1480 |
6 |
150 |
|
950 |
1530 |
6 |
200 |
|
1000 |
1580 |
7 |
50 |
Applications & Components
▶Large Non-standard Automation
▶Heat Treatment & Forging Industry
▶Machine Tool Automation
Why Choose This Machine
With closed anti-dust design and upgraded internal structure, High-precision Ball Screw Linear Positioner delivers stronger stability under heavy load. It adopts standardized modular design for quick installation and debugging, with low wear and long service life. It is a reliable cost-effective option for upgrading heavy-duty automated workshops.
Part of Your Smart Factory
As an indispensable linear motion core part, High-accuracy Ball Screw Linear Locator can be freely combined with gantry robots and multi-axis automation systems. It realizes full-process unmanned operation, cuts down manual intervention, and helps enterprises complete intelligent production transformation efficiently.
FAQ(Frequently Asked Questions)
Q: What customized services can be provided?
A: Support custom stroke, special mounting method, sensor position and motor configuration scheme.
Q: Is daily maintenance workload large?
A: Rational structural design with low wear; only regular lubrication and routine inspection are required.
Q: What's the advantage of enclosed structure?
A: It blocks dust, debris and particle pollution, protecting internal transmission parts and extending service life.
