Product Introduction

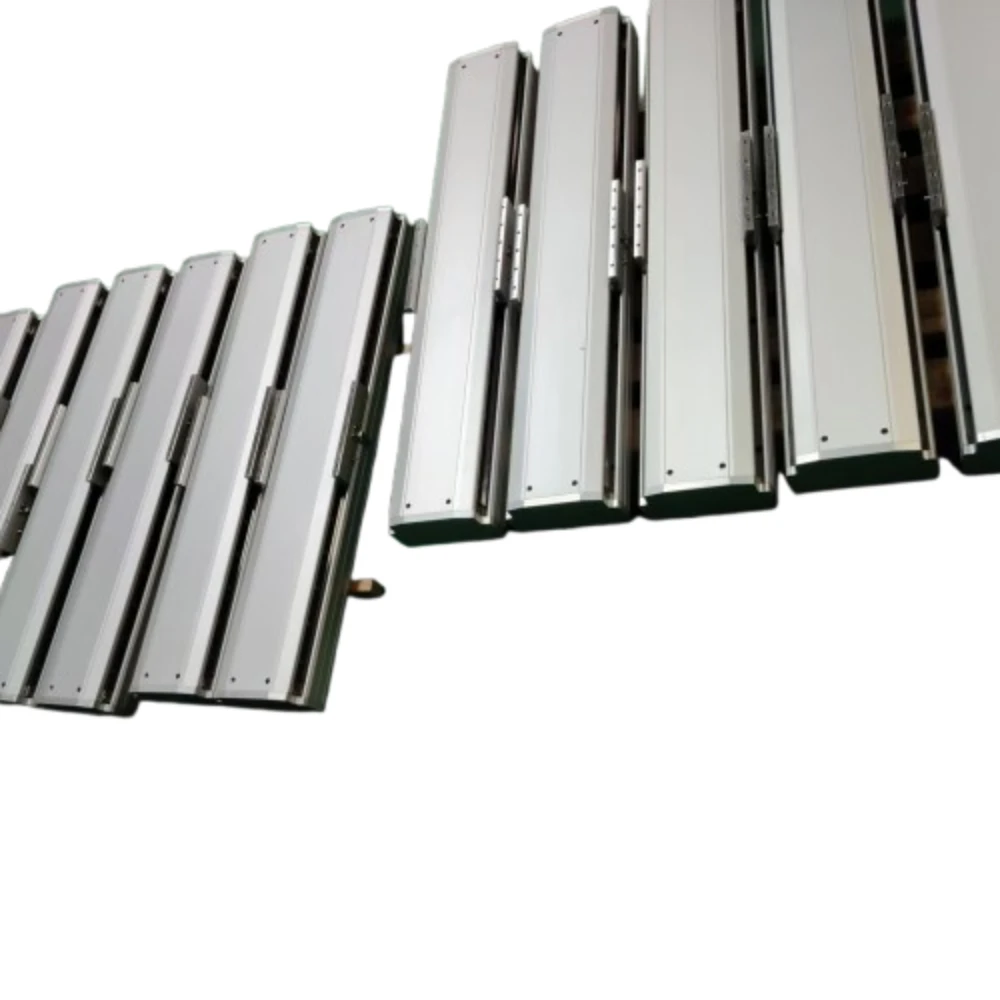

The Enclosed-protected Ball Screw Linear Actuator features an upgraded 210mm broad-profile alloy frame with integral forming technology, greatly boosting structural rigidity and anti-deflection performance. It can remain steady without obvious shaking even under heavy load and extended travel operation. Equipped with heavy-duty transmission assembly and high-rigidity guide rail sets, it delivers smooth motion and outstanding environmental resistance. Compatible with 750W to 1.5KW high-power motors and abundant stroke selections, it fits perfectly for large palletizing systems, heavy handling machinery and automated production configuration.
Key Benefits
▶Tough & Wear-Resistant Body
▶Strong Working Condition Resistance
▶High Power Easy Matching
Technical Specifications
|
Module Model |
Enclosed-protected Ball Screw Linear Actuator |
||
|
Basic Specifications |
- |
||
|
Stroke (S) |
mm |
||
|
Repeat Positioning Accuracy |
±0.02 / ±0.01 mm |
||
|
Lead |
5 / 10 / 20 mm |
||
|
Horizontal Load Capacity |
150 / 120 / 90 kg |
||
|
Vertical Load Capacity |
60 / 45 / 30 kg |
||
|
Max Speed |
250 / 500 / 1000 mm/s |
||
|
AC Motor Configuration |
750W / 1KW / 1.5KW |
||
|
Ball Screw Outer Diameter |
φ25 / φ32 mm |
||
|
Linear Guide Model |
EGH25CA |
||
|
Timing Pulley Model |
5M-25-21 |
||
|
External Sensor |
SX672 NPN |
||
|
Built-in Sensor |
- |
||
|

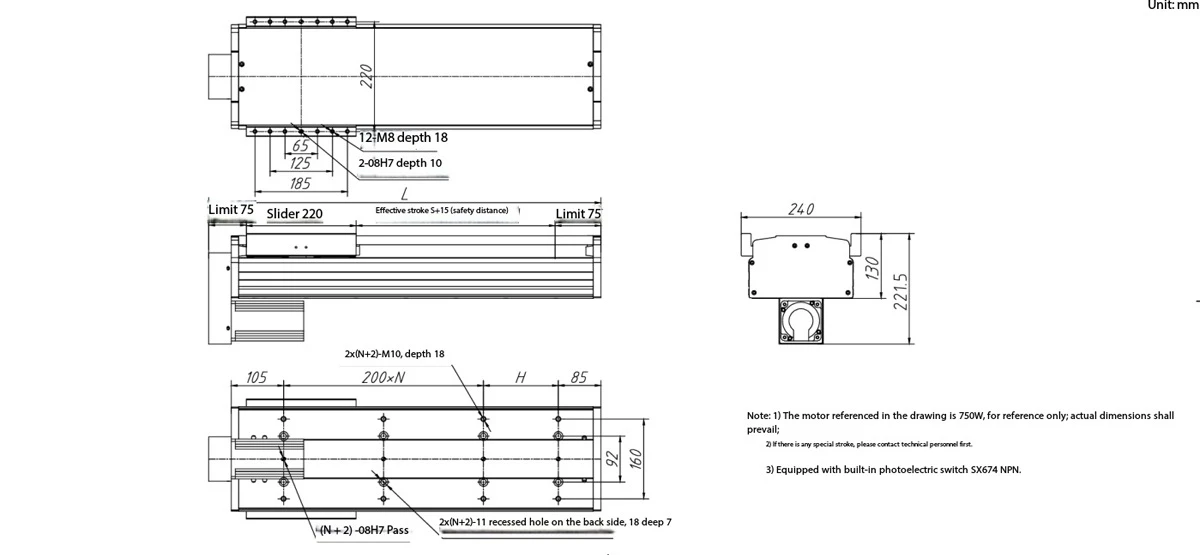

Effective Stroke (S) |
Overall Length (L) |
N |
H |
|
100 |
485 |
1 |
50 |
|
150 |
535 |
1 |
100 |
|
200 |
585 |
1 |
150 |
|
250 |
635 |
1 |
200 |
|
300 |
685 |
2 |
50 |
|
350 |
735 |
2 |
100 |
|
400 |
785 |
2 |
150 |
|
450 |
835 |
2 |
200 |
|
500 |
885 |
3 |
50 |
|
550 |
935 |
3 |
100 |
|
600 |
985 |
3 |
150 |
|
650 |
1035 |
3 |
200 |
|
700 |
1085 |
4 |
50 |
|
750 |
1135 |
4 |
100 |
|
800 |
1185 |
4 |
150 |
|
850 |
1235 |
4 |
200 |
|
900 |
1285 |
5 |
50 |
|
950 |
1335 |
5 |
100 |
|
1000 |
1385 |
5 |
150 |
Applications & Components
▶Automated palletizing lines
▶Multi-axis linkage mechanical arms for heavy industrial production.
▶Logistics large sorting systems
Why Choose This Machine
Boasting an exclusive widened 210mm frame design, the Enclosed-protected Ball Screw Linear Actuator breaks the load limit of ordinary standard modules, offering stronger anti-shake capability and higher overall stability. It supports high-power motor configuration, adapts to harsh heavy-duty workshop conditions, comes with complete specification options and standard mounting dimensions, making it a reliable and cost-effective priority option for large industrial automation renovation and customized equipment matching.
Part of Your Smart Factory
Focusing on heavy industrial intelligent upgrading, Sealed-enclosed Ball Screw Linear Actuator oversized wide-body module relies on high load capacity and stable mechanical performance, helping enterprises complete large-scale equipment automation transformation and realize high-efficiency unmanned production.
FAQ(Frequently Asked Questions)
Q: What is the core advantage of Fully Enclosed Ball Screw Linear Actuator compared with ordinary modules?
A: It adopts 210mm ultra-wide integrated body, with much higher structural toughness and load-bearing limit, suitable for large equipment and heavy-duty working conditions that ordinary modules cannot bear.
Q: What power motors can it be matched with?
A: It supports 750W, 1KW and 1.5KW high-power motor installation, meeting the power demand of large automation equipment.
Q: Is it suitable for long stroke operation?
A: The ultra-wide body effectively restrains swing and vibration, ensuring straight track and stable positioning even at maximum long stroke.
