Product Introduction
Key Benefits
▶ Standardized Rear Right Folding Installation Design, Flush Front End, Perfect for Production Line Docking
▶Motor Rear-Mounted Away from Processing Area, 2x Longer Service Life of Drive Components
▶Long-Stroke Exclusive High-Rigidity Structure, Stable Operation Accuracy Without Degradation

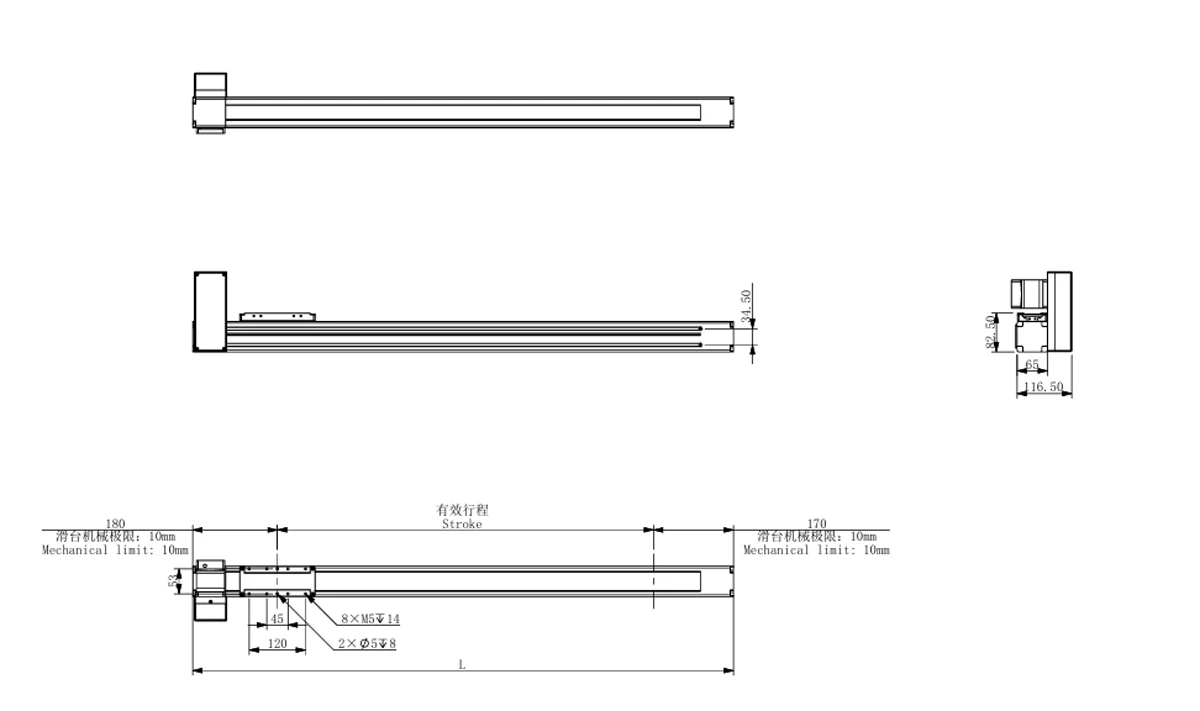

Technical Specifications
|
Right Angle Direct Coupling Belt Linear Stage |
||
|
Stroke |
L |
KG |
|
800 |
1150 |
9.55 |
|
850 |
1200 |
9.80 |
|
900 |
1250 |
10.05 |
|
950 |
1300 |
10.30 |
|
1000 |
1350 |
10.55 |
|
1050 |
1400 |
10.80 |
|
1100 |
1450 |
11.05 |
|
1150 |
1500 |
11.30 |
|
1200 |
1550 |
11.55 |
|
1250 |
1600 |
11.80 |
|
1300 |
1650 |
12.05 |
|
1350 |
1700 |
12.30 |
|
1400 |
1750 |
12.55 |
|
1450 |
1800 |
12.80 |
|
1500 |
1850 |
13.05 |
|
1550 |
1900 |
13.30 |
|
1600 |
1950 |
13.55 |
|
1650 |
2000 |
13.80 |
|
1700 |
2050 |
14.05 |
|
1750 |
2100 |
14.30 |
|
1800 |
2150 |
14.55 |
|
1850 |
2200 |
14.80 |
|
1900 |
2250 |
15.05 |
|
1950 |
2300 |
15.30 |
Applications & Components
▶ Laser Processing Industry: Long-stroke laser cutting/welding/marking equipment, large plate laser processing center, long-stroke laser cleaning machine
▶ New Energy Industry: Lithium battery cell long-distance sorting line, photovoltaic wafer long-stroke inspection equipment, energy storage PACK long-distance transfer mechanism, photovoltaic module stringer long-stroke transmission
▶ Automated Production Lines: Long-distance automatic loading and unloading mechanism, production line long-distance transfer unit, large equipment rear compact layout, warehousing and logistics long-distance transfer slide
Why Choose This Machine
Corner Direct Coupling Belt-Actuated Linear Guide Unit relies on its exclusive standardized rear right folding structure, rear-mounted motor protection design, long-stroke exclusive high-rigidity body and C7 precision ball screw drive, to achieve flush front-end docking in compact rear space, while solving the industry pain points of long-stroke operation accuracy degradation and processing area pollution to drive components.
Part of Your Smart Factory
Right Angle Direct Coupling Belt Linear Stage is the core transmission component for the long-stroke automation upgrade of smart factories. With its compact rear structure, long-stroke stable accuracy and flush front-end docking capability, it can be seamlessly integrated into intelligent scenarios such as long-distance intelligent transfer production lines, large laser processing centers, and new energy long-distance sorting lines.
FAQ(Frequently Asked Questions)
Q: What is the difference between Side-Mounted Direct Coupling Belt-Driven Linear Rail Assembly and Left models? Can the two models be interchanged directly?
A: The core performance, size parameters and installation hole positions of the two models are completely consistent, only the motor installation direction is different: Right is motor rear right folding, Left is motor rear left folding, adapting to different space layouts at the rear end of the equipment. The two models are 1:1 mirror compatible, which can be directly interchanged and installed without modifying the frame drawings, perfectly adapting to equipment with different left and right layouts at the rear end, and greatly reducing your transformation cost.
Q: The flush front end design of this module, can it really dock directly with production line stations? Are there any installation restrictions?
A: Yes, the front end face of this module is completely flat, without any protruding motor or installation parts. It can directly dock with production line connection positions, worktables and processing feed inlets, without additional installation restrictions. It perfectly solves the pain point of traditional modules where the front-mounted motor causes protrusions and blocks tight docking with production lines, especially suitable for scenarios that require fully open front-end docking such as laser processing and production line transfer.
Q: What motors can this rear right folding module adapt to? Do I need a custom adapter plate?
A: The rear installation position of this module is an industry general standard hole position, which can directly adapt to mainstream drive motors on the market such as 57 stepper motors and 60 servo motors. The standard installation hole positions are reserved, no need for custom adapter plates, it can be directly installed and used after purchase, greatly reducing your procurement and debugging costs.
